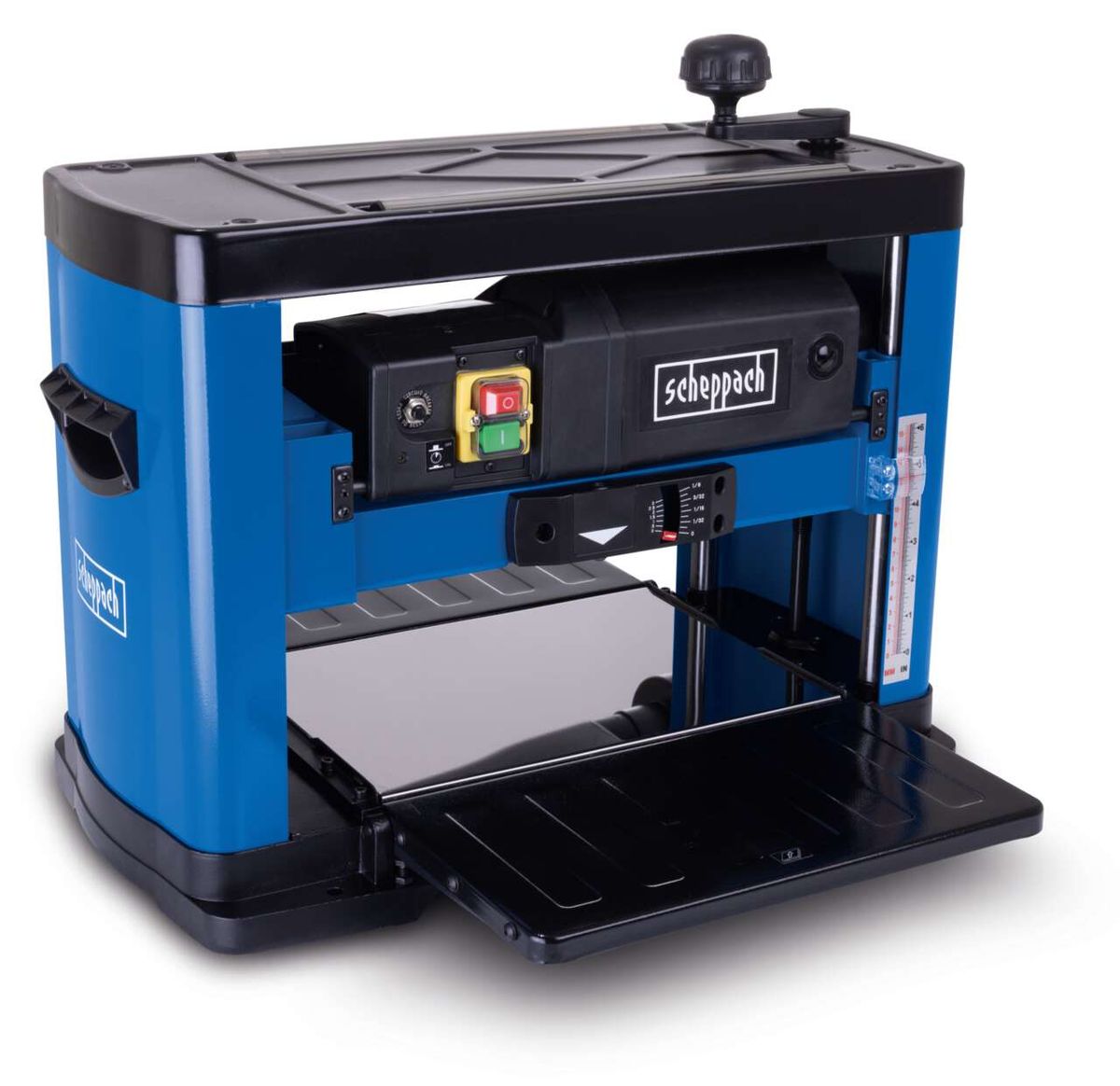

Scheppach thickness planer (PLM1800) showing worktable and controls

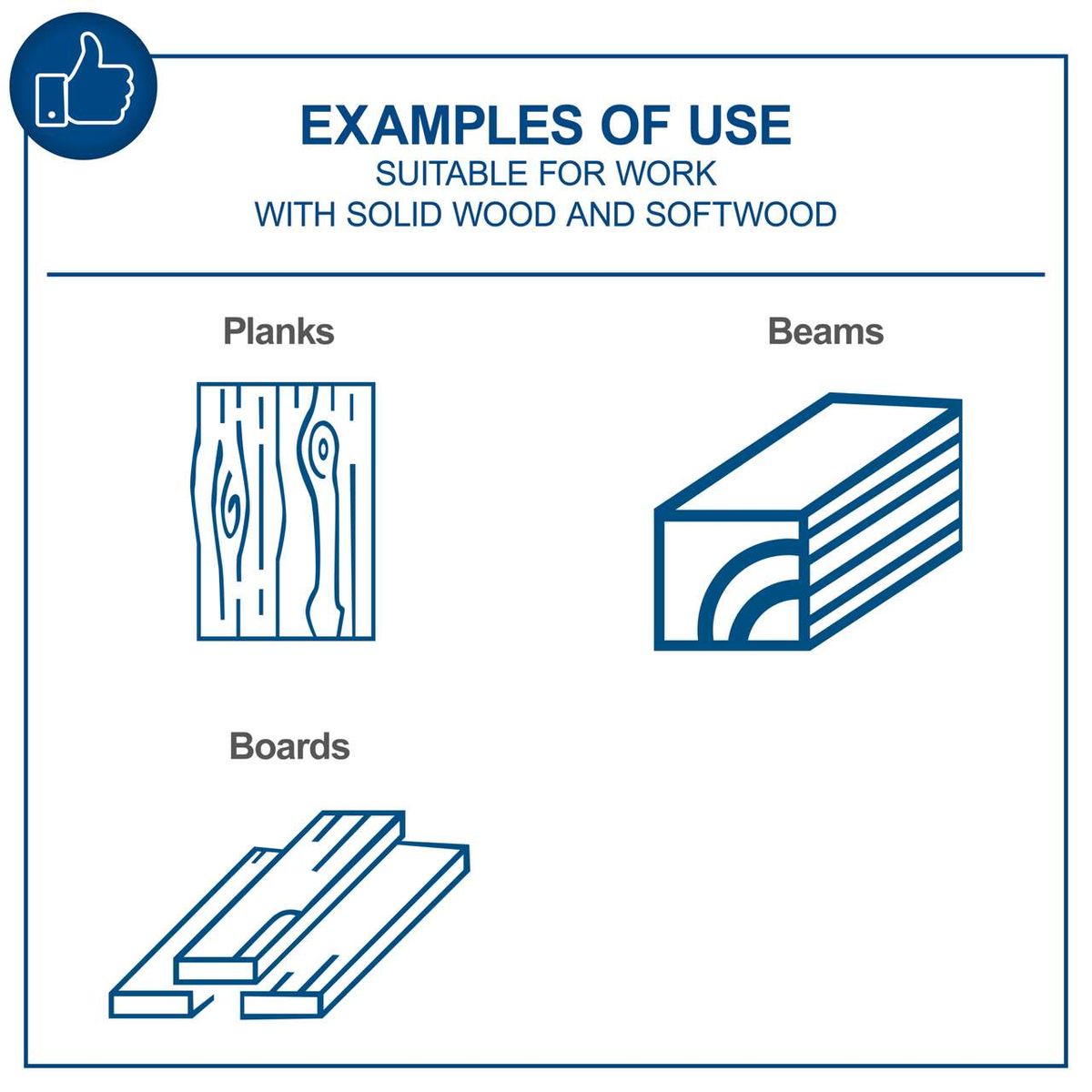

Illustrations of wood types: planks, boards, and beams for Scheppach tools

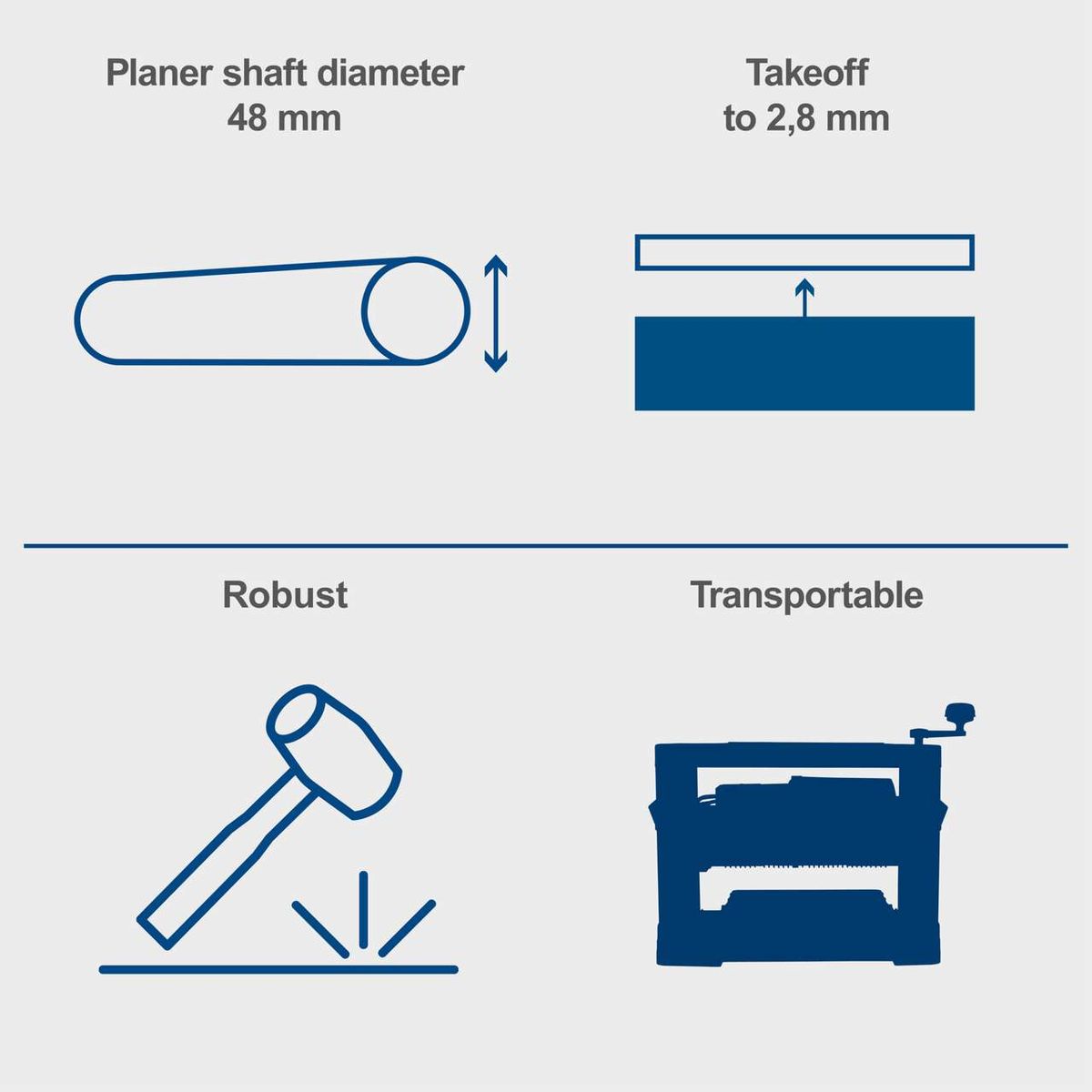

Planer shaft with 48 mm diameter and takeoff down to 2.8 mm for Scheppach thickness planer

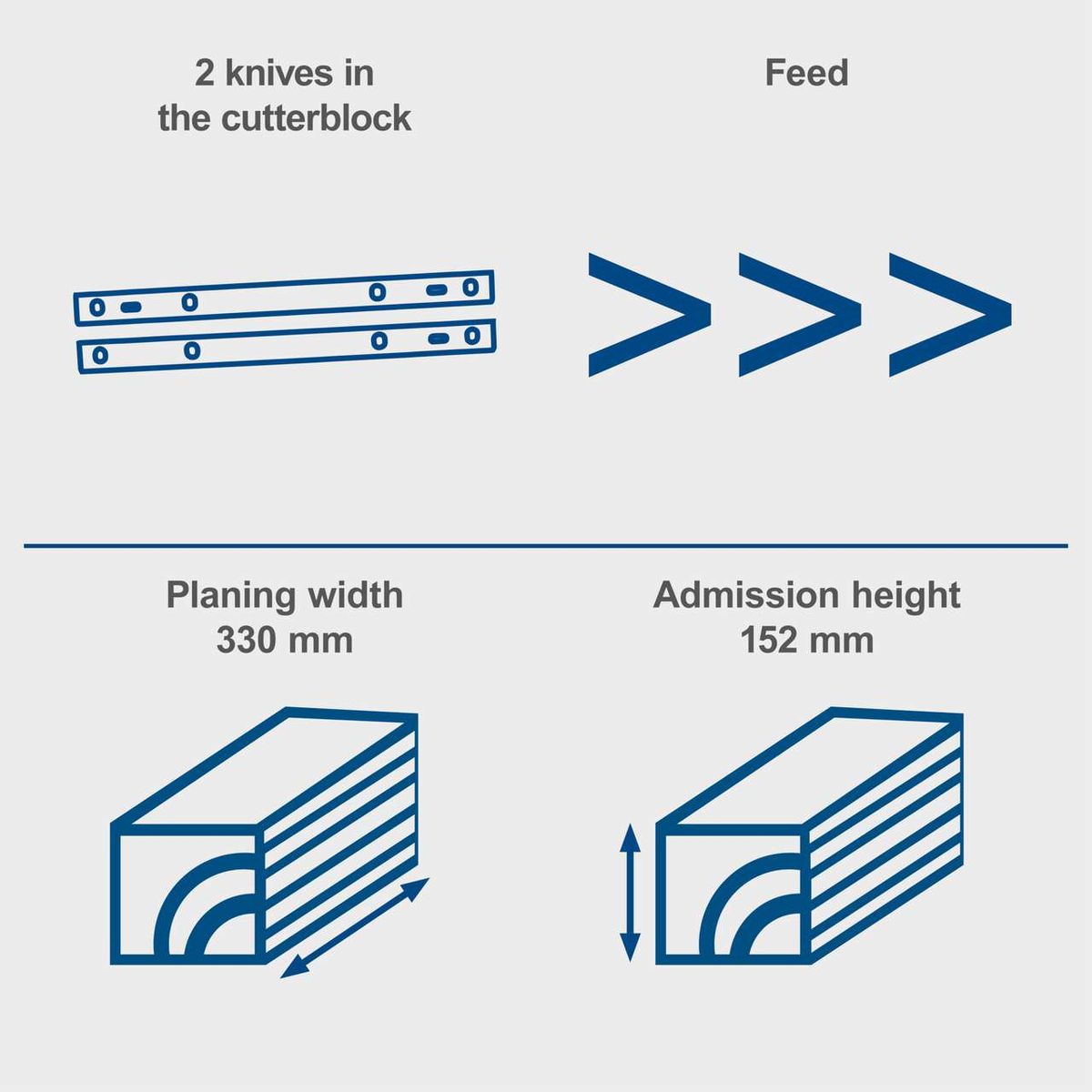

Scheppach thickness planer showing dual knives, 330 mm plan width and 152 mm feed height

Scheppach thickness planer using cutterblock speed and two planer knives for clean planing

Adjustable height knob for precise height setting on planer tool

Scheppach thickness planer PLM1800 for precise wood processing up to 330 x 152 mm

Scheppach thickness planer with return rollers for smooth workpiece handling

Scheppach thickness planer with large loading table for accurate long workpiece support, including control features and measurement markings

Thickness Planer PLM1800 | 1500W | 330 x 152mm Clearance | Auto Feed

Product number: 5902208905

379,00 £

315,83 £

Excluding VAT

Variant

Available online only

Expected delivery: 2-5 days (Freight shipping)

Amount

Questions?

Description

The Scheppach PLM1800 Thickness Planer is a powerful yet compact solution for professional-grade planing on the go. Designed with portability in mind, this lightweight machine includes a user-friendly hand crank for precise height adjustment, making it ideal for both workshop and site use. Its compact size and built-in carrying handles enhance its mobility without compromising performance.

Compact & Portable: Lightweight tabletop design with carrying handles – perfect for workshop or mobile use
Precise Height Adjustment: Easy hand crank with scale for accurate thickness settings from 5–152 mm
Wide Planing Capacity: Planes workpieces up to 330 mm wide with a maximum chip removal of 2.8 mm per pass
Efficient Automatic Feed: 7.4 m/min feed rate and two return rollers for smooth, consistent operation
Powerful 1500W Motor: Drives dual 330 mm blades at 8500 rpm (17,000 cuts/min) – with integrated extraction port for dust control

Measuring just 63 x 58.9 x 50 cm, the PLM1800 is well-suited as a tabletop planer. Two integrated carrying handles make it easy to move between jobs, while the built-in extraction port allows connection to a dust extractor, helping to maintain a clean workspace and minimise airborne debris during operation.

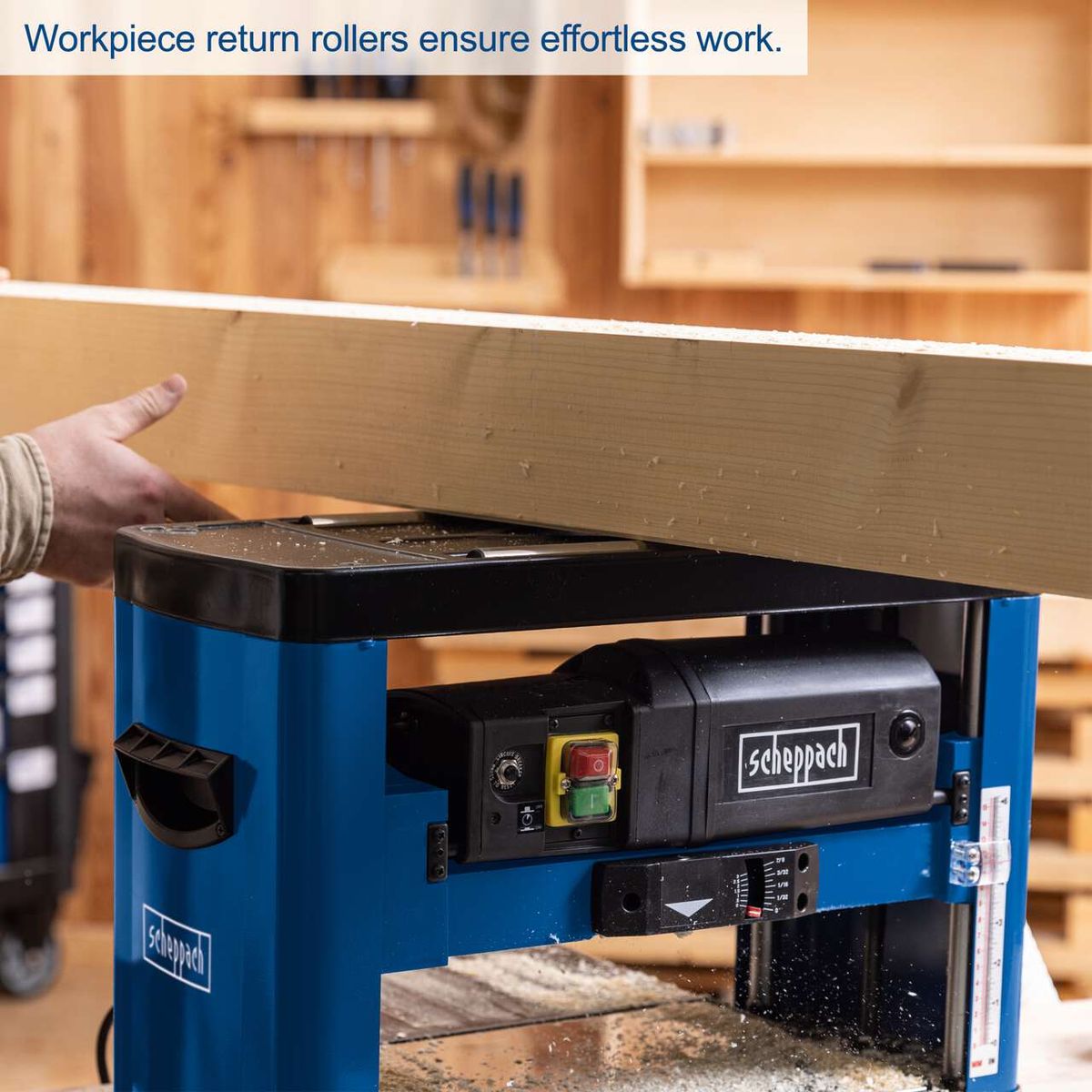

The PLM1800 includes two rubber-coated return rollers and an automatic feed system running at 7.4 m/min. Simply feed the timber onto the durable steel table, and the machine takes over for smooth, continuous planing. This design ensures consistent throughput and reduces user fatigue during repetitive tasks.

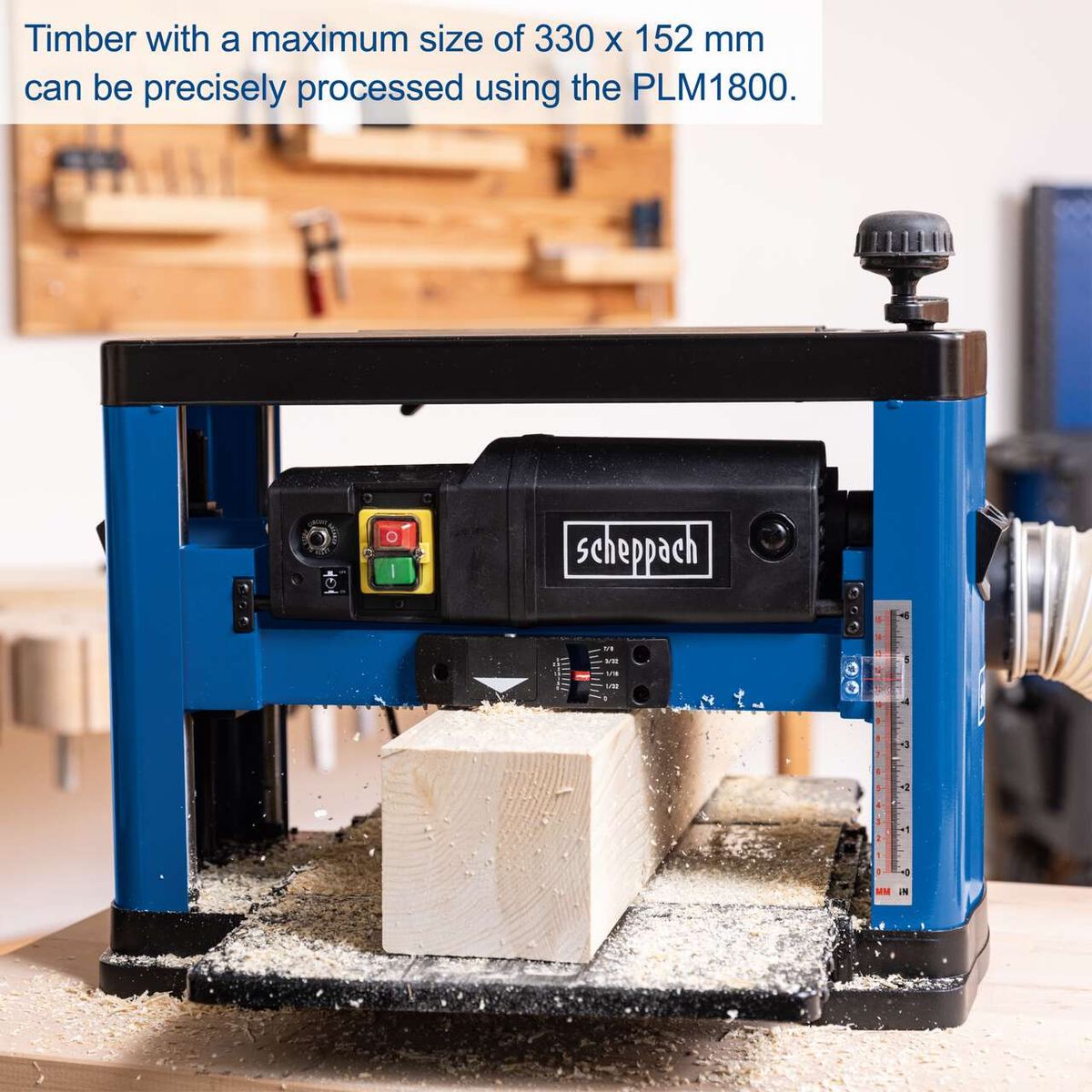

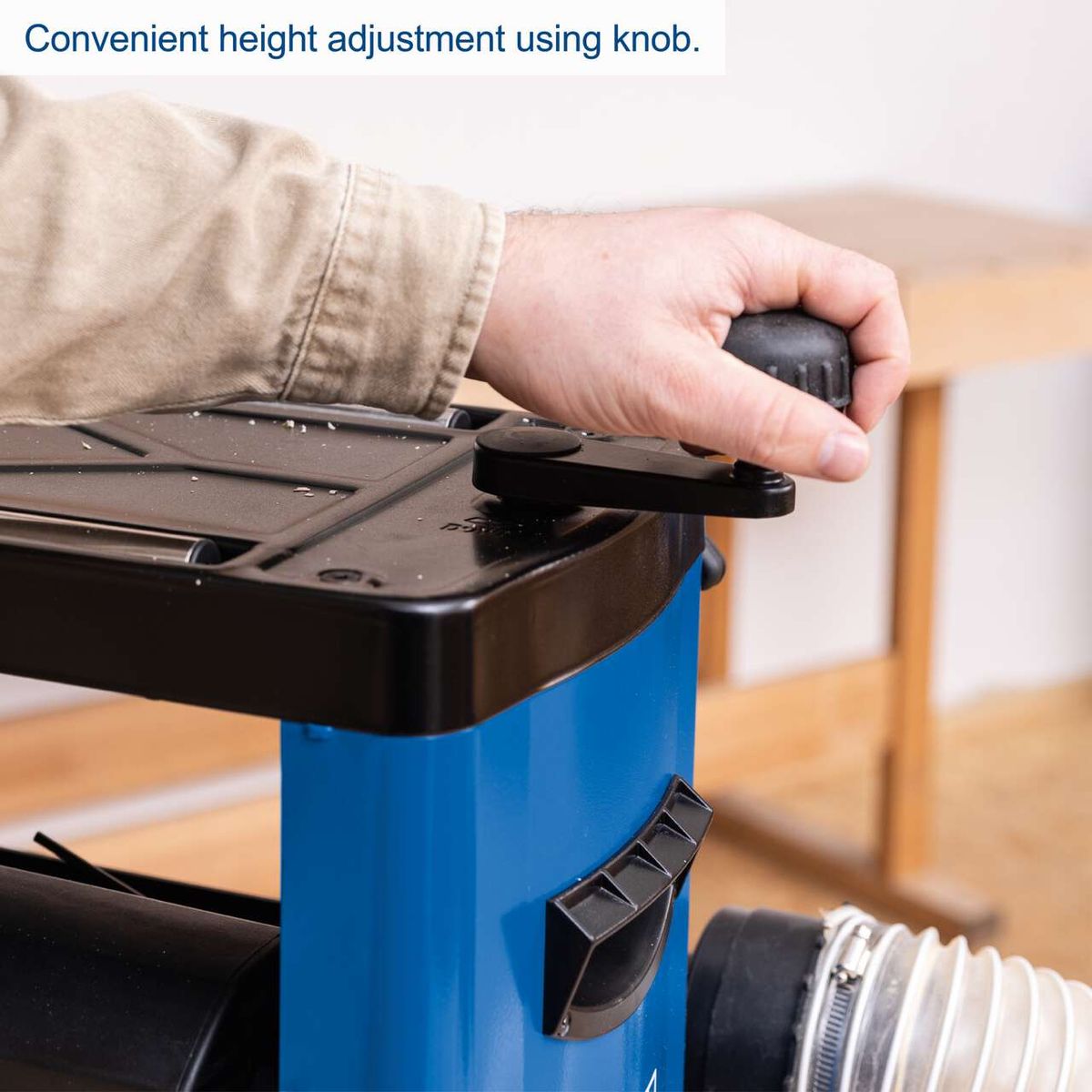

The planing height can be adjusted from 5 mm to 152 mm with millimetre-level precision using the hand crank and visible scale. Once your desired thickness is set, the planer maintains it across multiple workpieces—ideal for consistently sizing planks and boards. It can accommodate materials up to 330 mm wide, making it suitable for a wide range of timber dimensions.

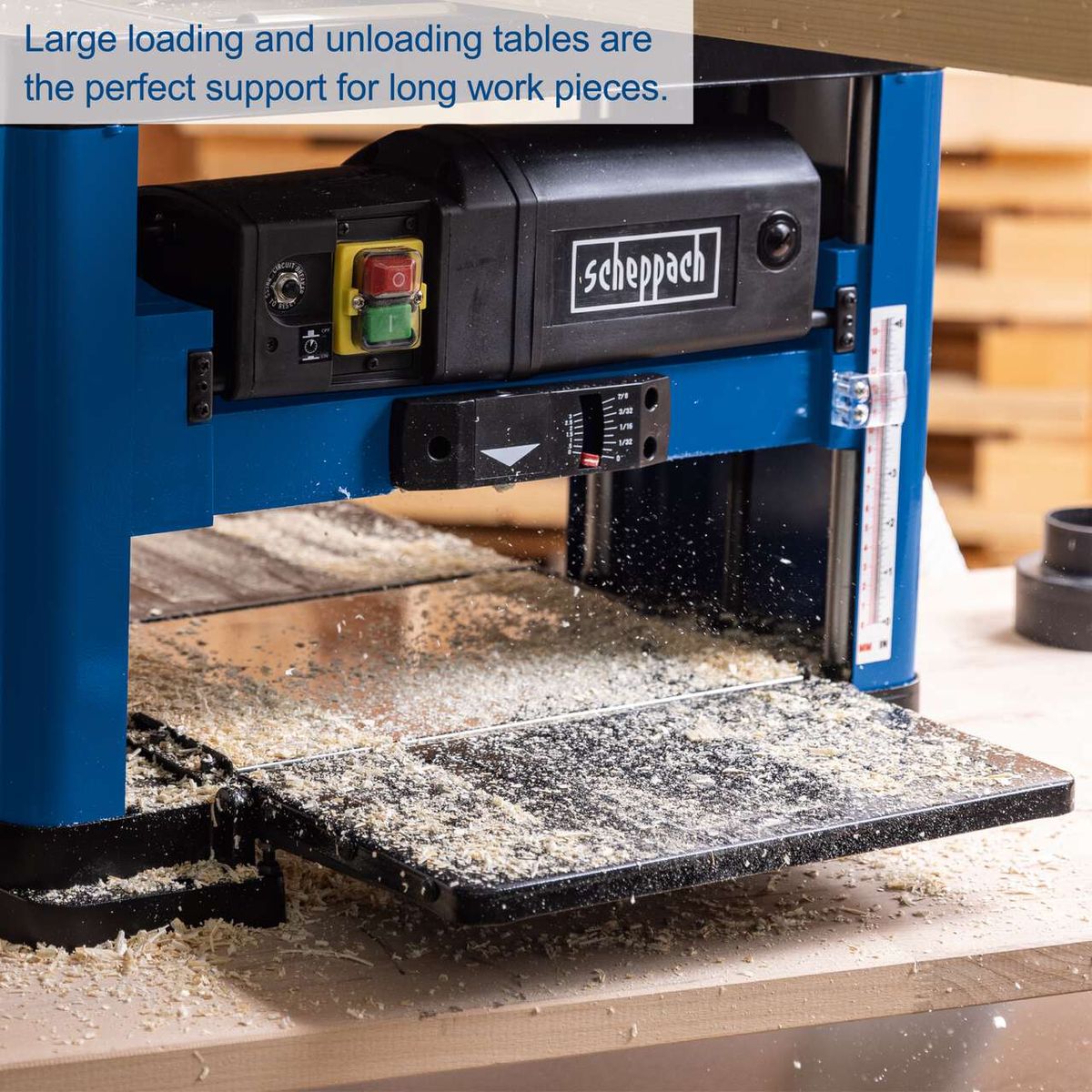

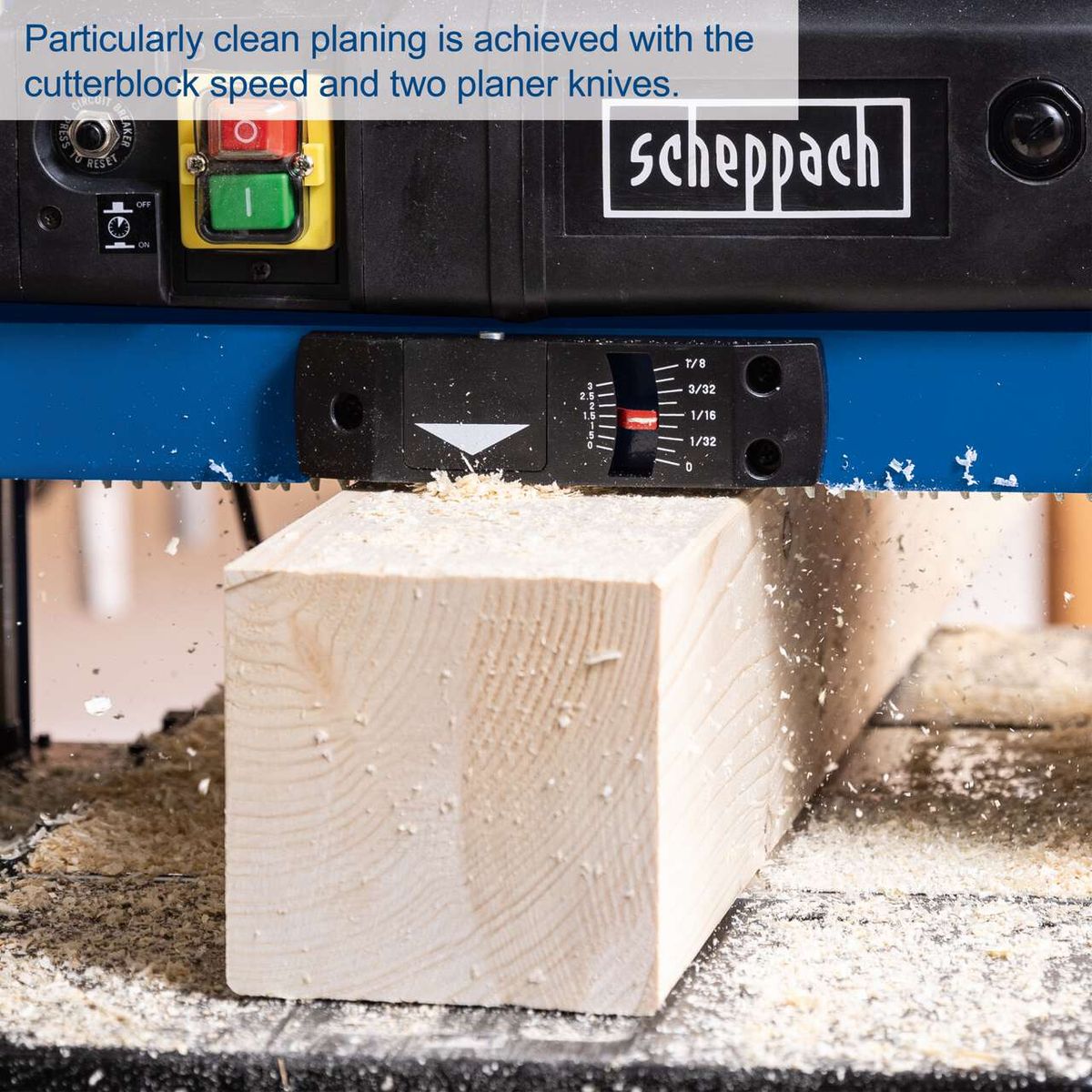

A robust 1500 W motor drives the steel shaft, fitted with two 330 mm wide planer blades, reaching speeds of up to 8,500 rpm and 17,000 cuts per minute. Capable of removing up to 2.8 mm per pass, it ensures fast and clean results. The stainless steel table includes two 190 mm fold-out extensions, providing added support when working with longer workpieces.
