Thickness Planer PLM1800 | 1500W | 330 x 152mm Clearance | Auto Feed

Product number: 5902208901

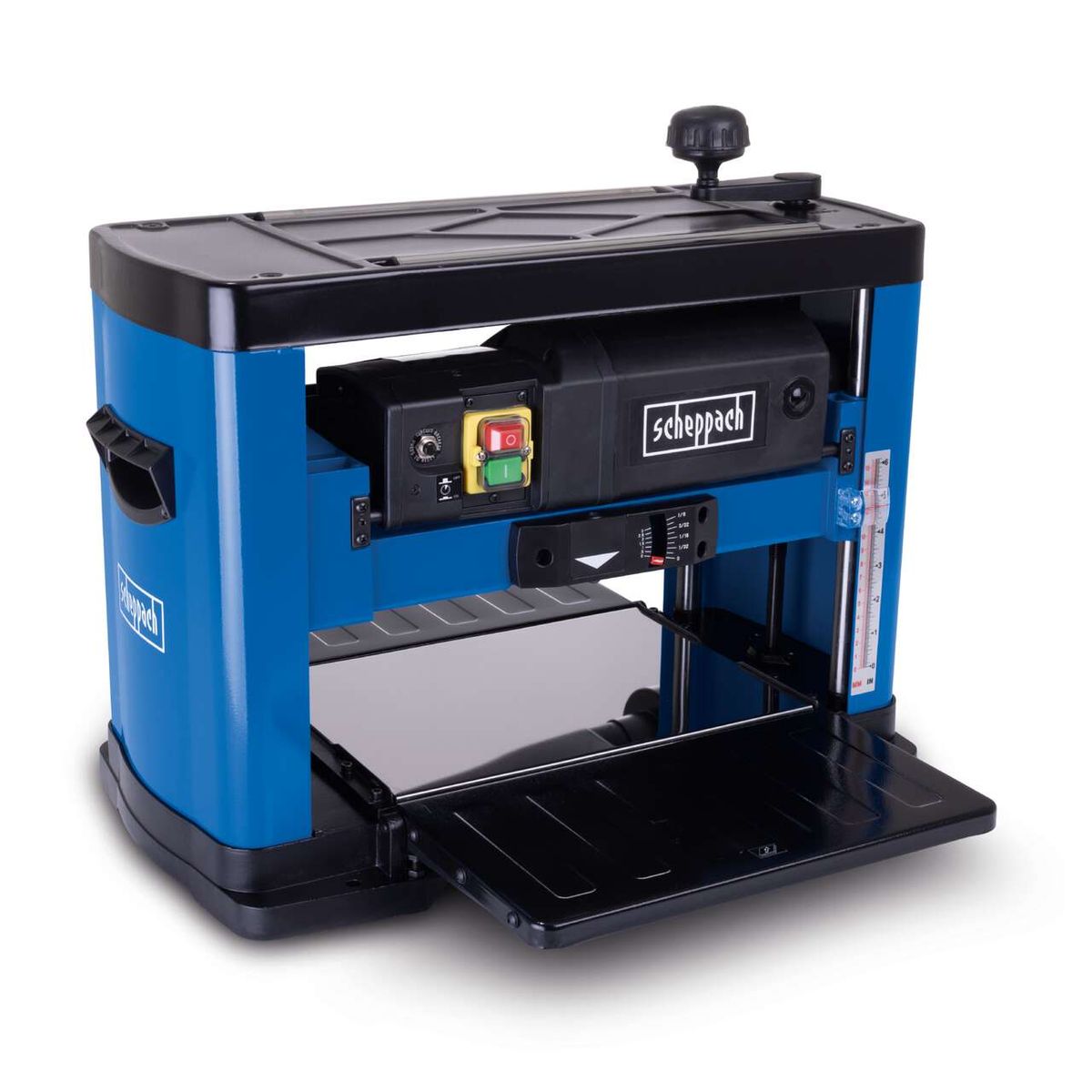

The Scheppach thickness planer PLM1800 with integrated dust extraction system and height adjustment for precise planing. The machine features a large adjustment range and a robust construction.

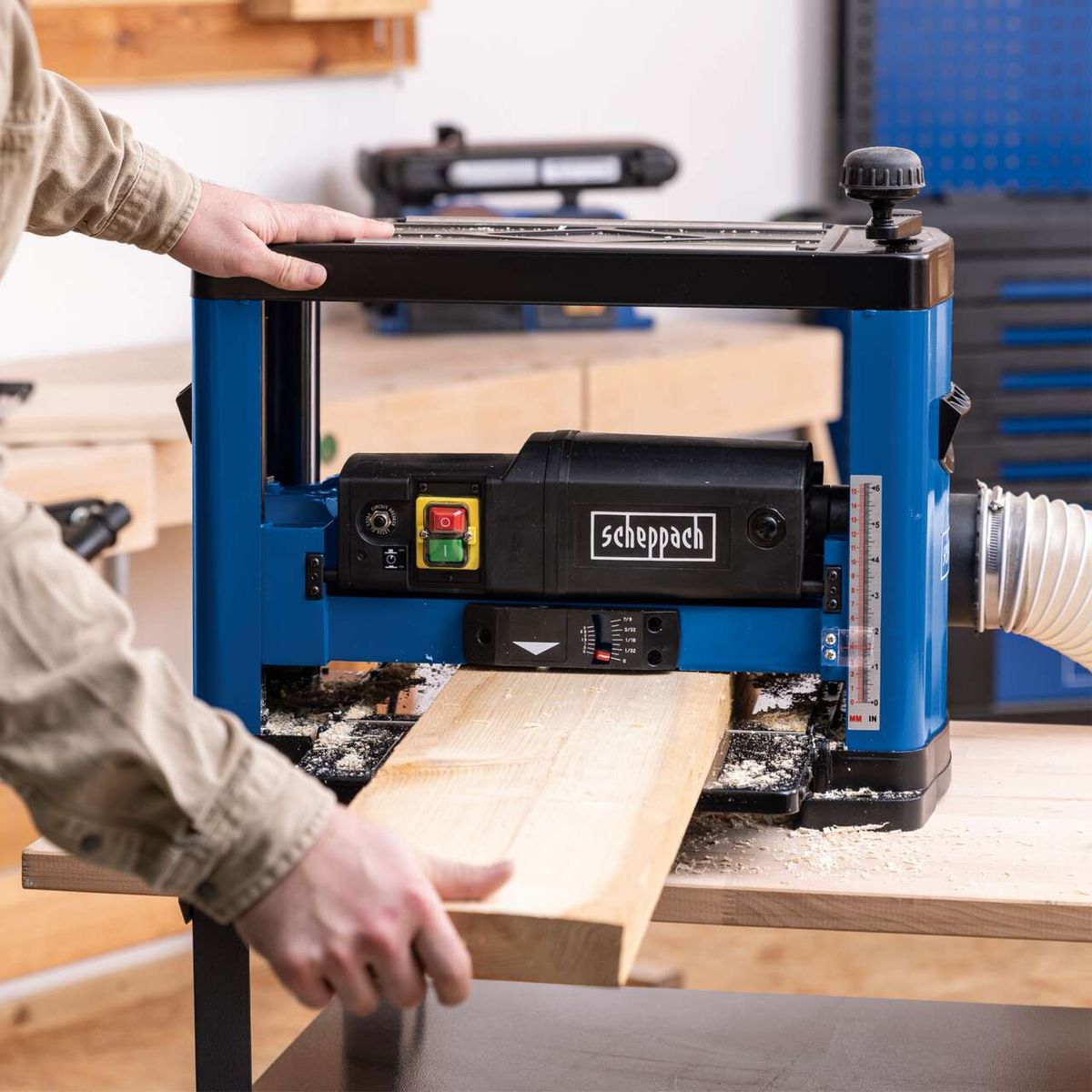

The Scheppach PLM1800 thickness planer with 1500W power, 330mm planing width and 152mm planing height. Equipped with two planer blades for precise planing.

The Scheppach PLM1800 passed the 'selber machen' practical test with 'very good'. It was rated with 5 stars and is the winner of the World Tool Awards 2021 in the category 'Best Buy'.

The PLM1800 thickness planer by Scheppach features 360° planing for precise results. With 1500W power, a planing width of 330mm, and a height of 152mm. Equipped with 2 planing blades for optimal surface finishing.

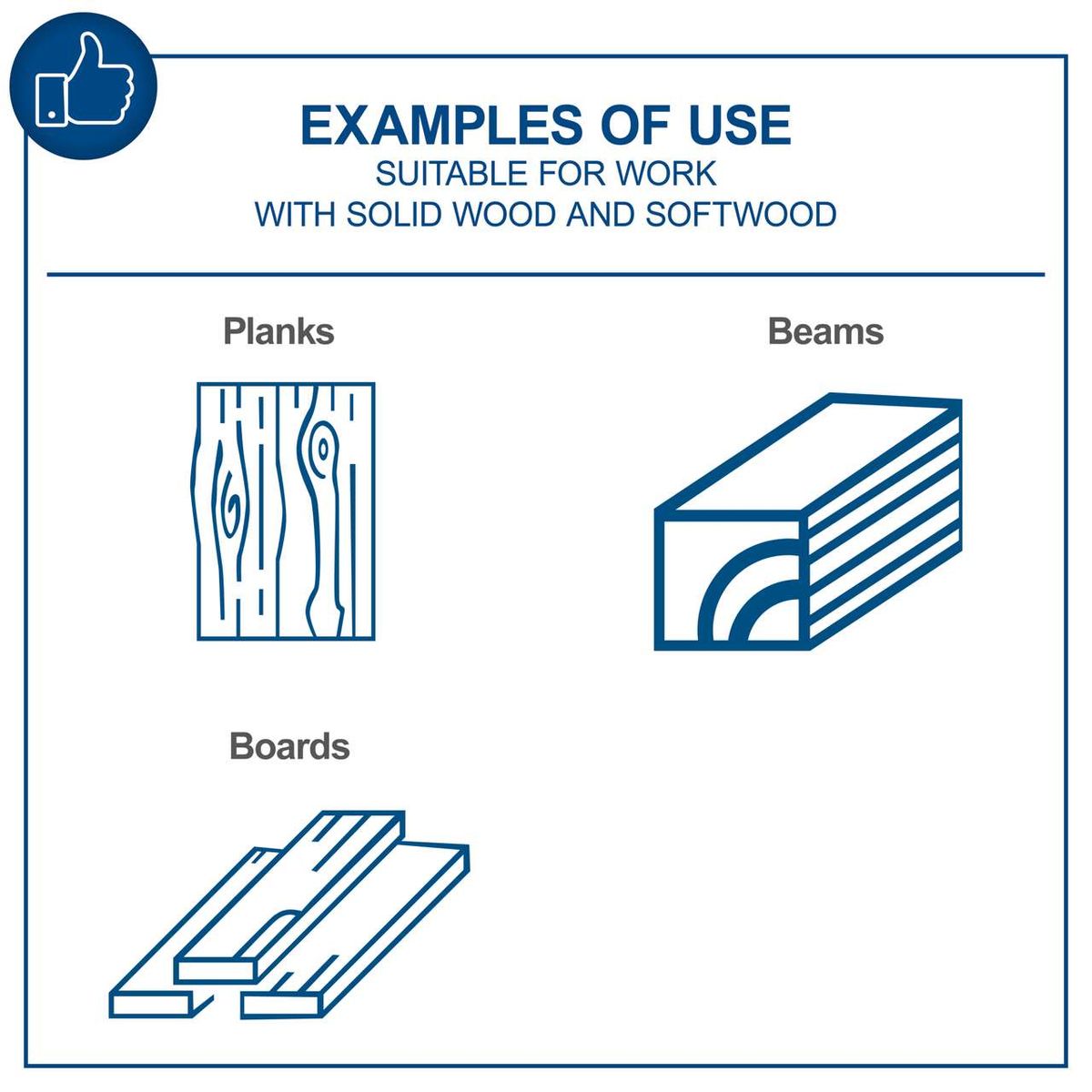

The thickness planer PLM1800 by Scheppach is suitable for working with solid wood and softwood. It can process planks, beams, and boards.

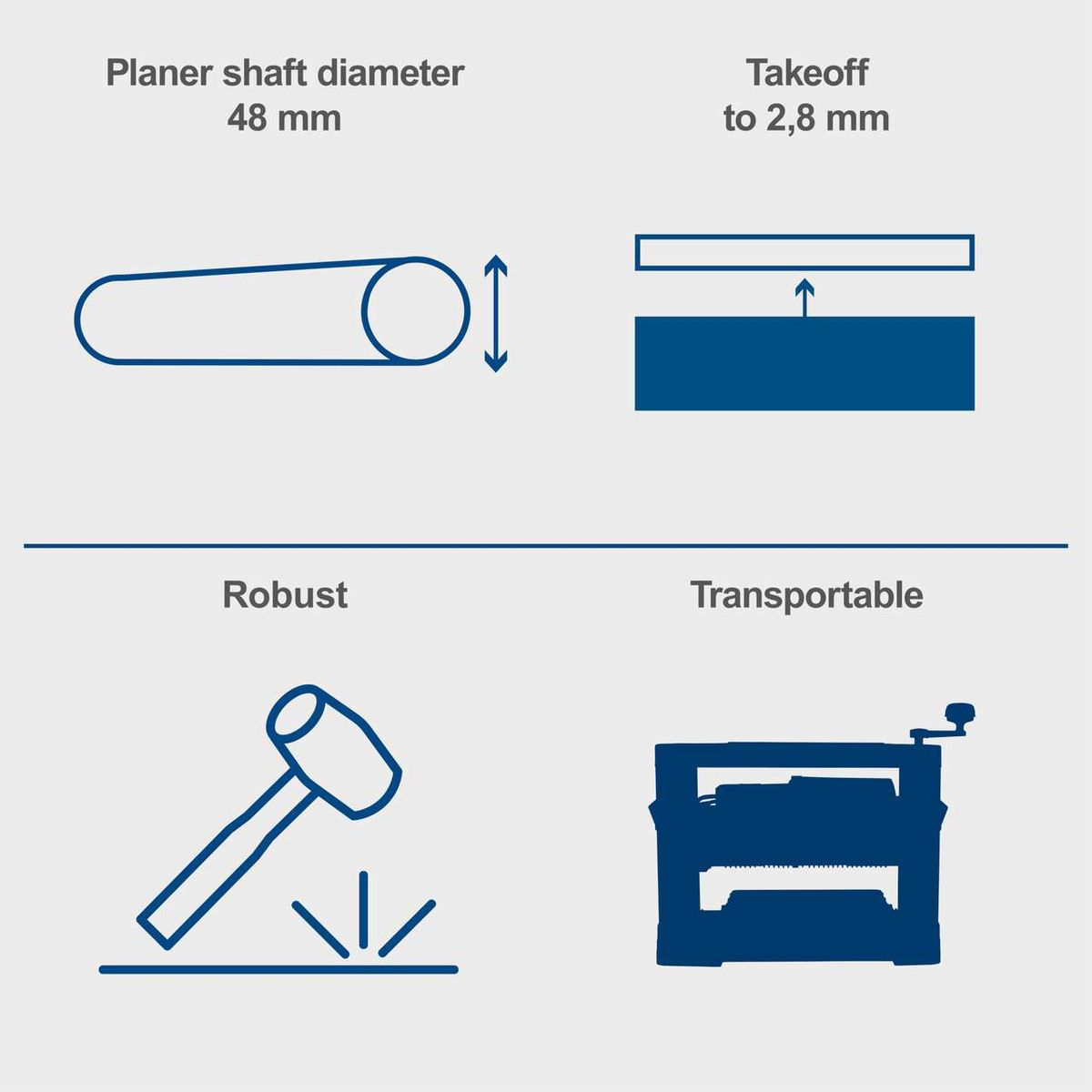

The planer has a shaft diameter of 48 mm and a material removal of up to 2.8 mm. The planer is robust and portable.

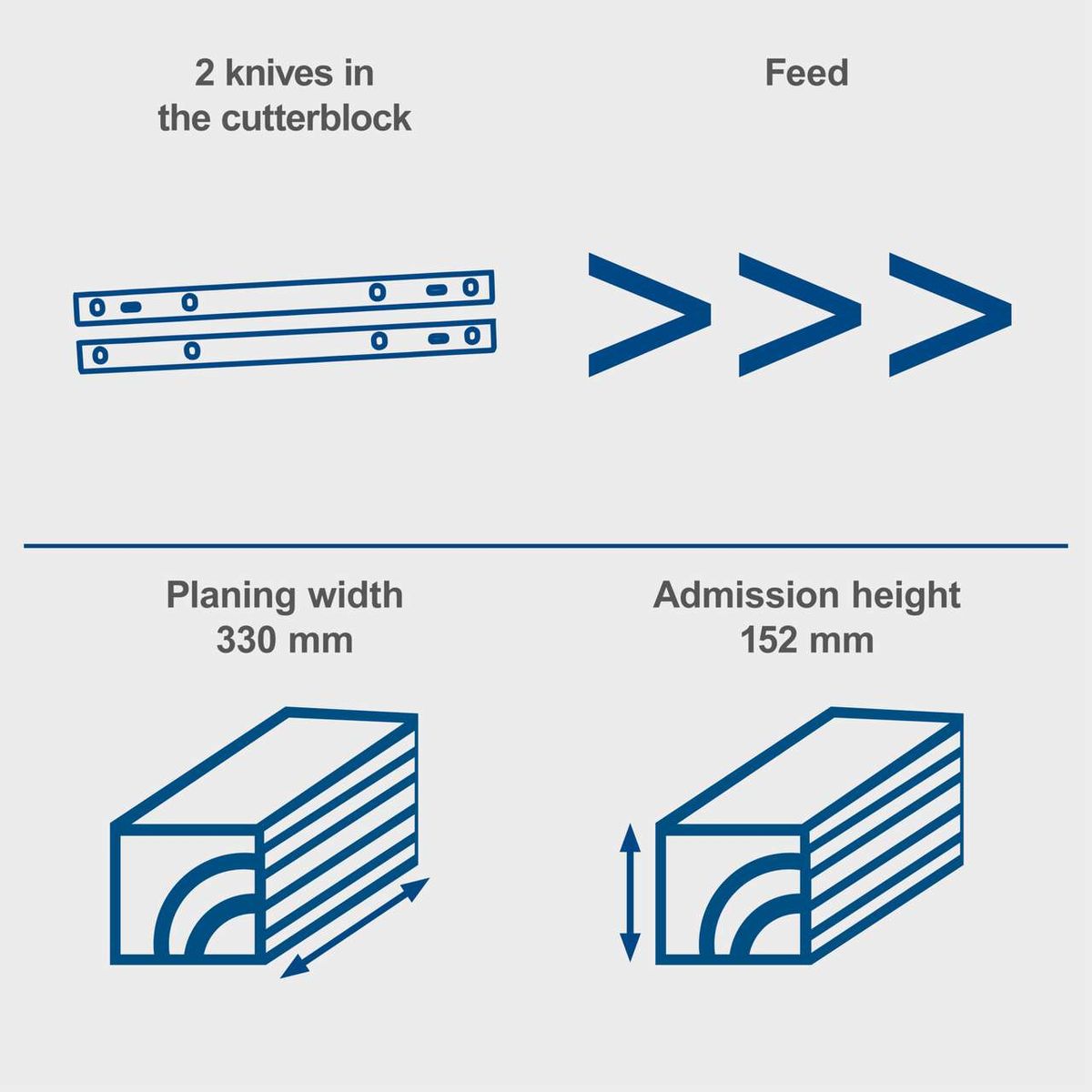

The thickness planer PLM1800 by Scheppach features two knives in the cutterblock, a planing width of 330 mm, and an admission height of 152 mm.

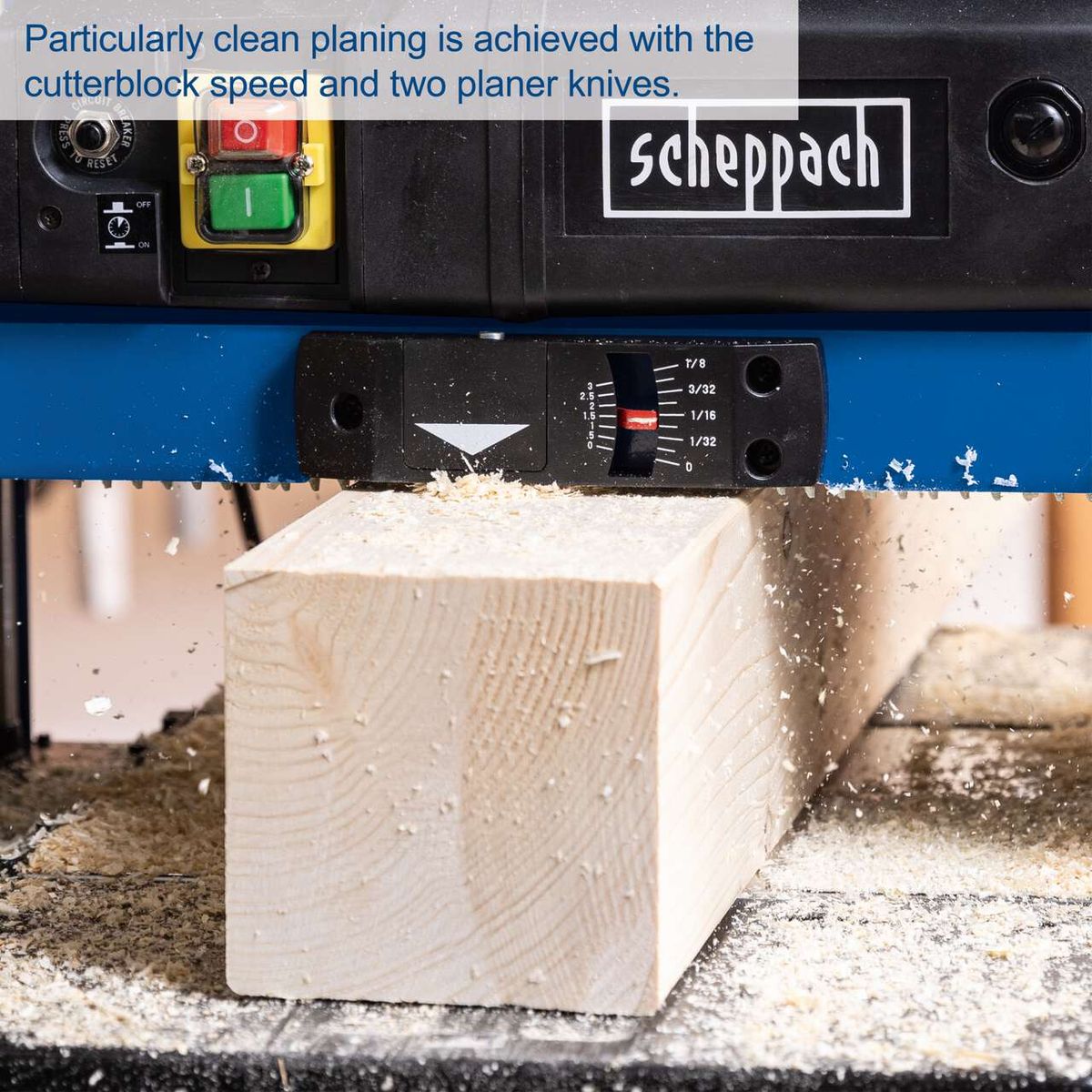

The Scheppach PLM1800 thickness planer achieves particularly clean planing with the cutterblock speed and two planer knives.

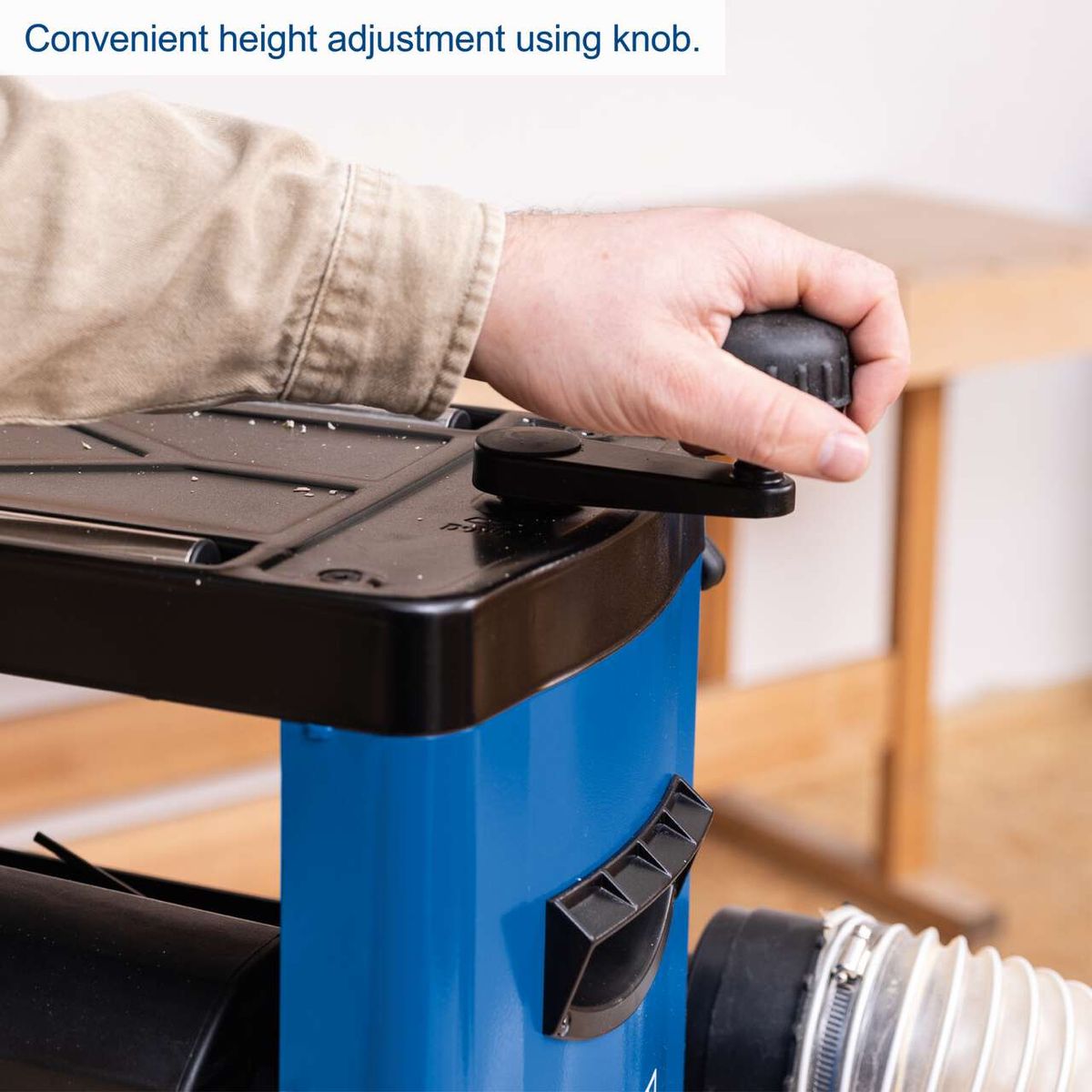

The Scheppach Thickness Planer PLM1800 features convenient height adjustment using a knob. It has a planing width of 330 mm and a height of 152 mm with two planer blades. The power is 1500 watts.

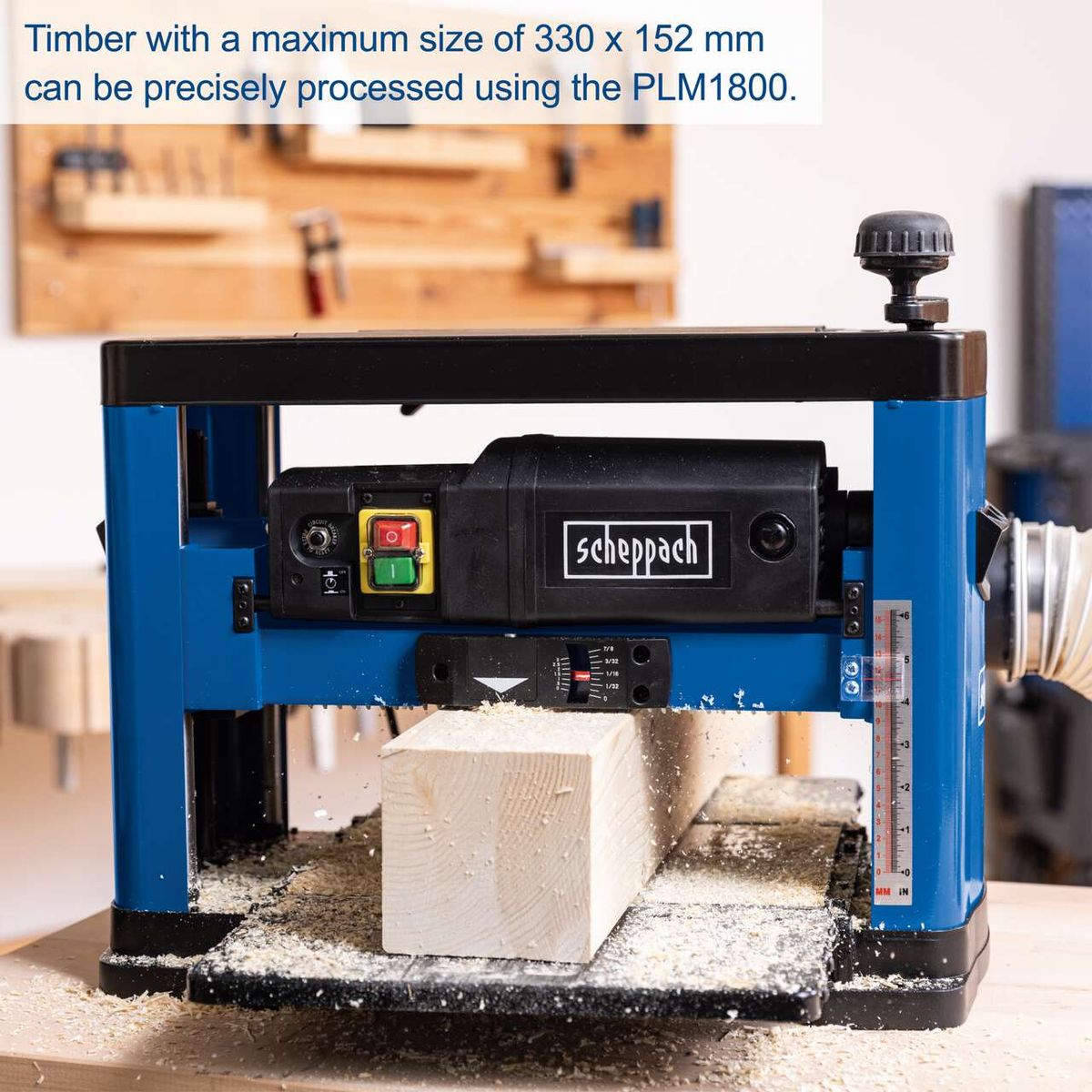

The Scheppach PLM1800 can precisely process timber with a maximum size of 330 x 152 mm. The machine has a power of 1500W, a planing width of 330 mm, and a height of 152 mm. It is equipped with two planer blades.

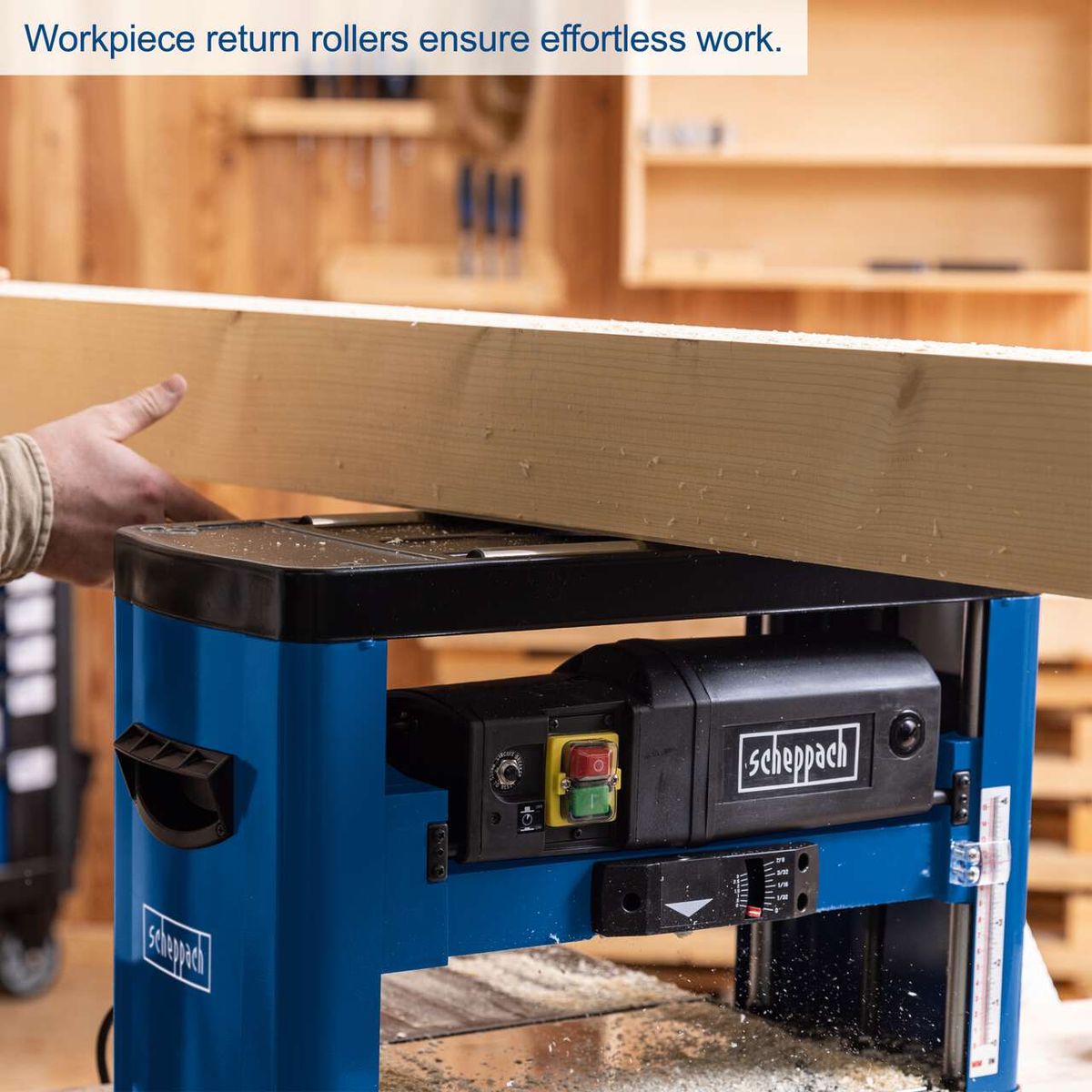

The Scheppach PLM1800 thickness planer features workpiece return rollers for effortless work.

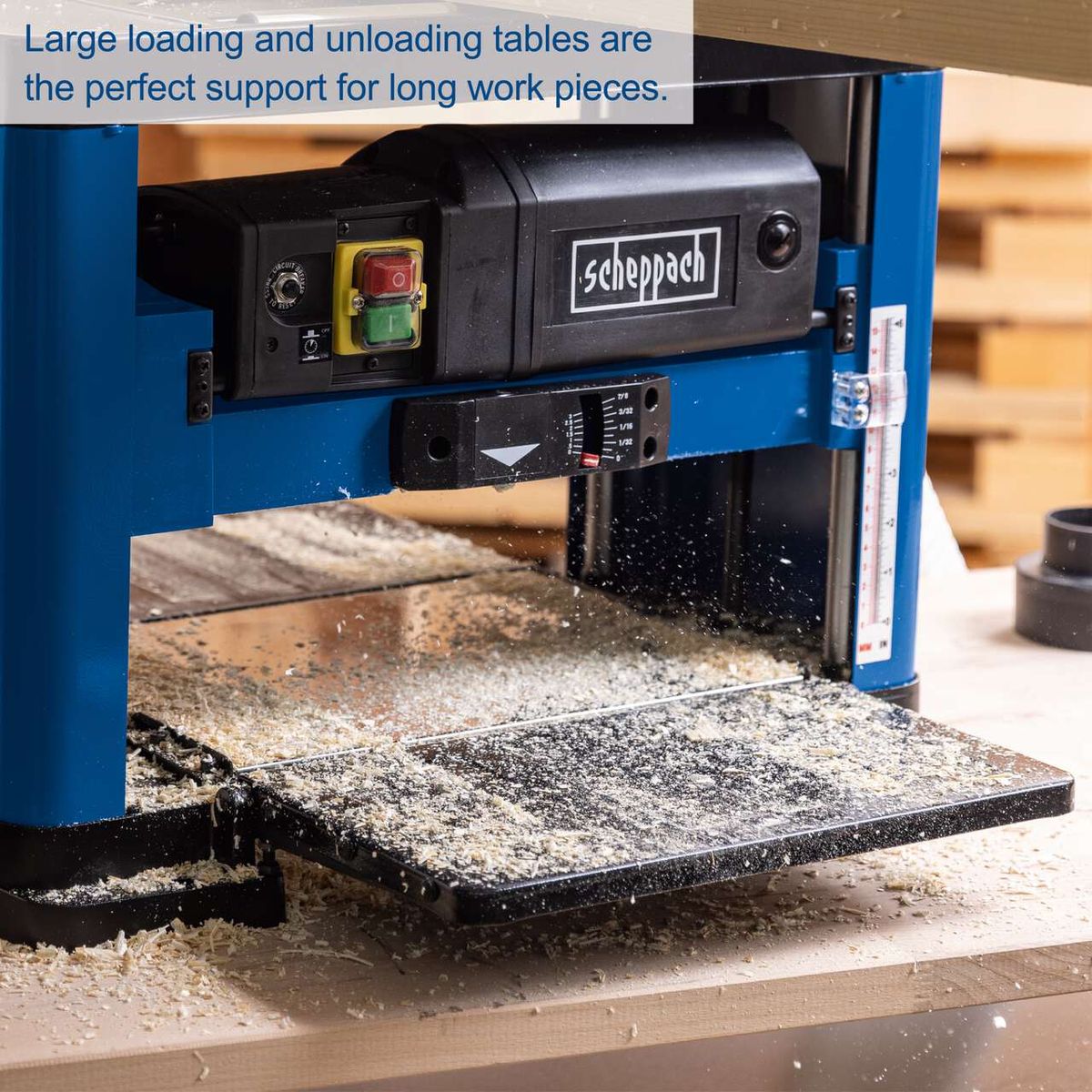

The Scheppach thickness planer PLM1800 features large loading and unloading tables that provide perfect support for long workpieces.

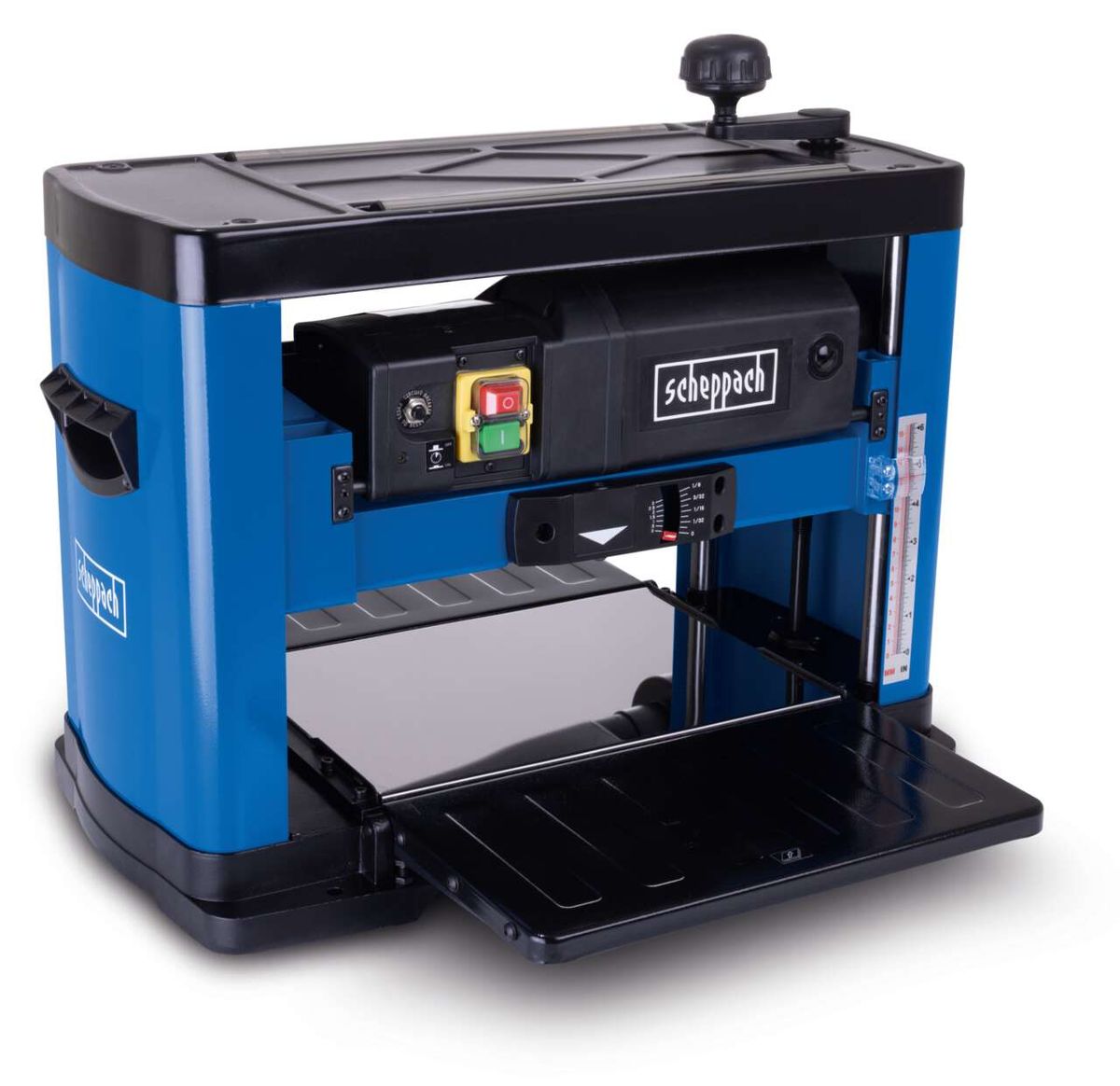

Thickness Planer PLM1800 Scheppach, 1500W, 330 x 152mm clearance, shown from the side.

Thickness Planer PLM1800 | 1500W | 330 x 152mm Clearance | Auto Feed

Product number: 5902208901

This product is currently not available

Description

The Scheppach PLM1800 Thickness Planer is a powerful yet compact solution for professional-grade planing on the go. Designed with portability in mind, this lightweight machine includes a user-friendly hand crank for precise height adjustment, making it ideal for both workshop and site use. Its compact size and built-in carrying handles enhance its mobility without compromising performance.

Measuring just 63 x 58.9 x 50 cm, the PLM1800 is well-suited as a tabletop planer. Two integrated carrying handles make it easy to move between jobs, while the built-in extraction port allows connection to a dust extractor, helping to maintain a clean workspace and minimise airborne debris during operation.

Compact & Portable: Lightweight tabletop design with carrying handles – perfect for workshop or mobile use
Precise Height Adjustment: Easy hand crank with scale for accurate thickness settings from 5–152 mm
Wide Planing Capacity: Planes workpieces up to 330 mm wide with a maximum chip removal of 2.8 mm per pass
Efficient Automatic Feed: 7.4 m/min feed rate and two return rollers for smooth, consistent operation
Powerful 1500W Motor: Drives dual 330 mm blades at 8500 rpm (17,000 cuts/min) – with integrated extraction port for dust control

The PLM1800 includes two rubber-coated return rollers and an automatic feed system running at 7.4 m/min. Simply feed the timber onto the durable steel table, and the machine takes over for smooth, continuous planing. This design ensures consistent throughput and reduces user fatigue during repetitive tasks.

The planing height can be adjusted from 5 mm to 152 mm with millimetre-level precision using the hand crank and visible scale. Once your desired thickness is set, the planer maintains it across multiple workpieces—ideal for consistently sizing planks and boards. It can accommodate materials up to 330 mm wide, making it suitable for a wide range of timber dimensions.

A robust 1500 W motor drives the steel shaft, fitted with two 330 mm wide planer blades, reaching speeds of up to 8,500 rpm and 17,000 cuts per minute. Capable of removing up to 2.8 mm per pass, it ensures fast and clean results. The stainless steel table includes two 190 mm fold-out extensions, providing added support when working with longer workpieces.
