Planer Thicknesser HMS1070 | 1500W | 254 x 120mm Clearance | Tilting Fence

Product number: 5902206905

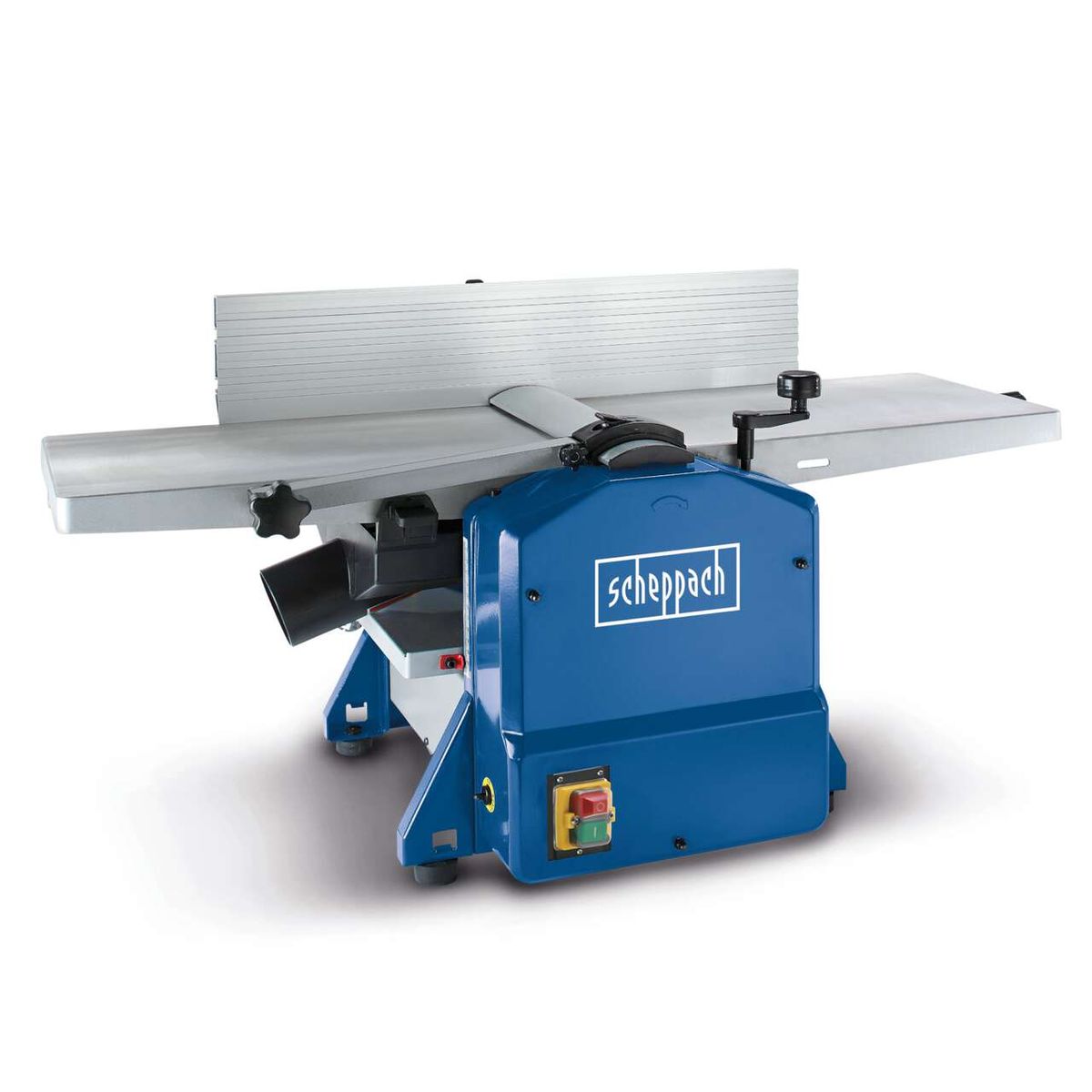

Scheppach planer thicknesser HMS1070 with adjustable fence and control elements

360° adjustable feature for precise planing, HMS1070 Scheppach thickness planer

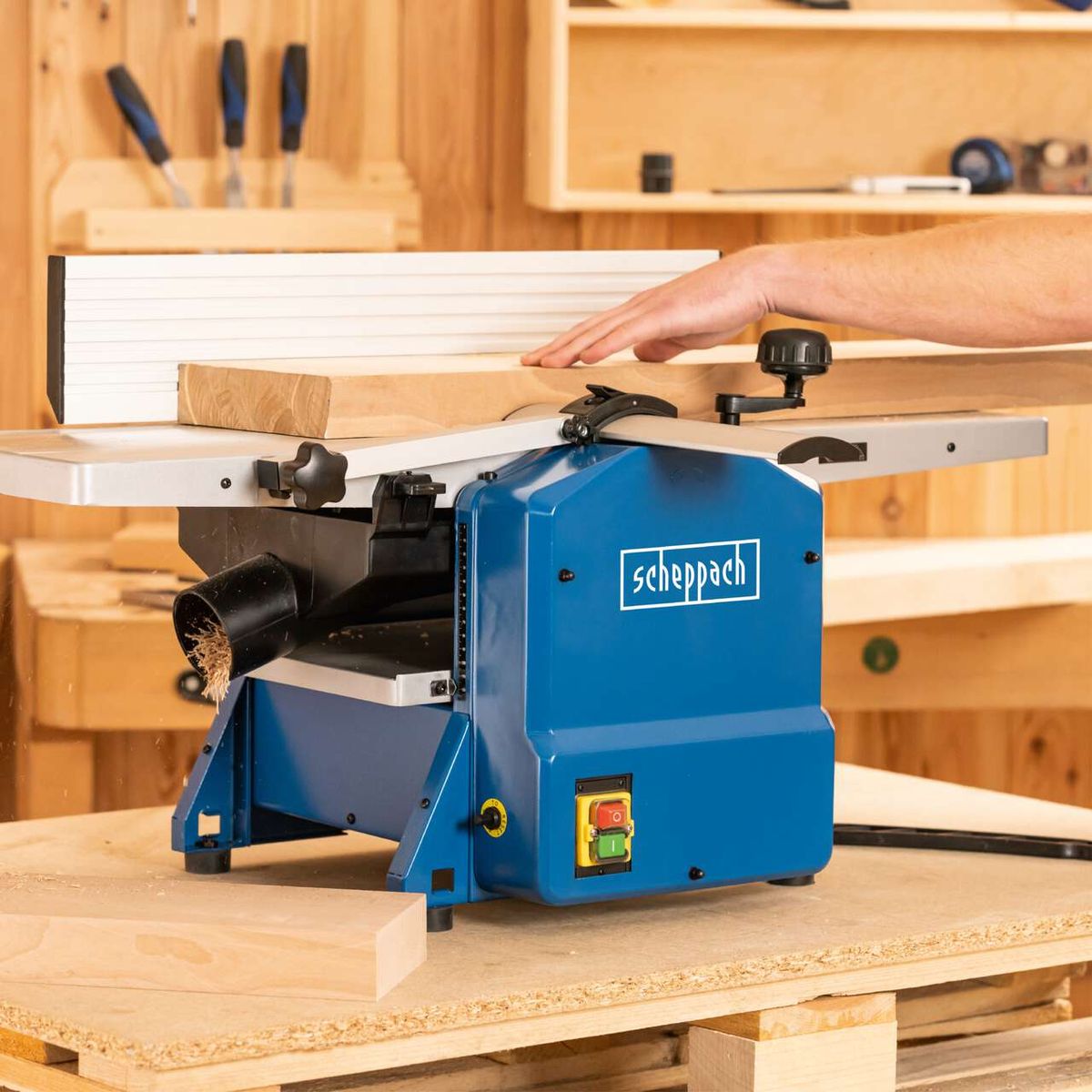

Scheppach planer thicknesser with integrated dust extraction and control knobs for accurate adjustments

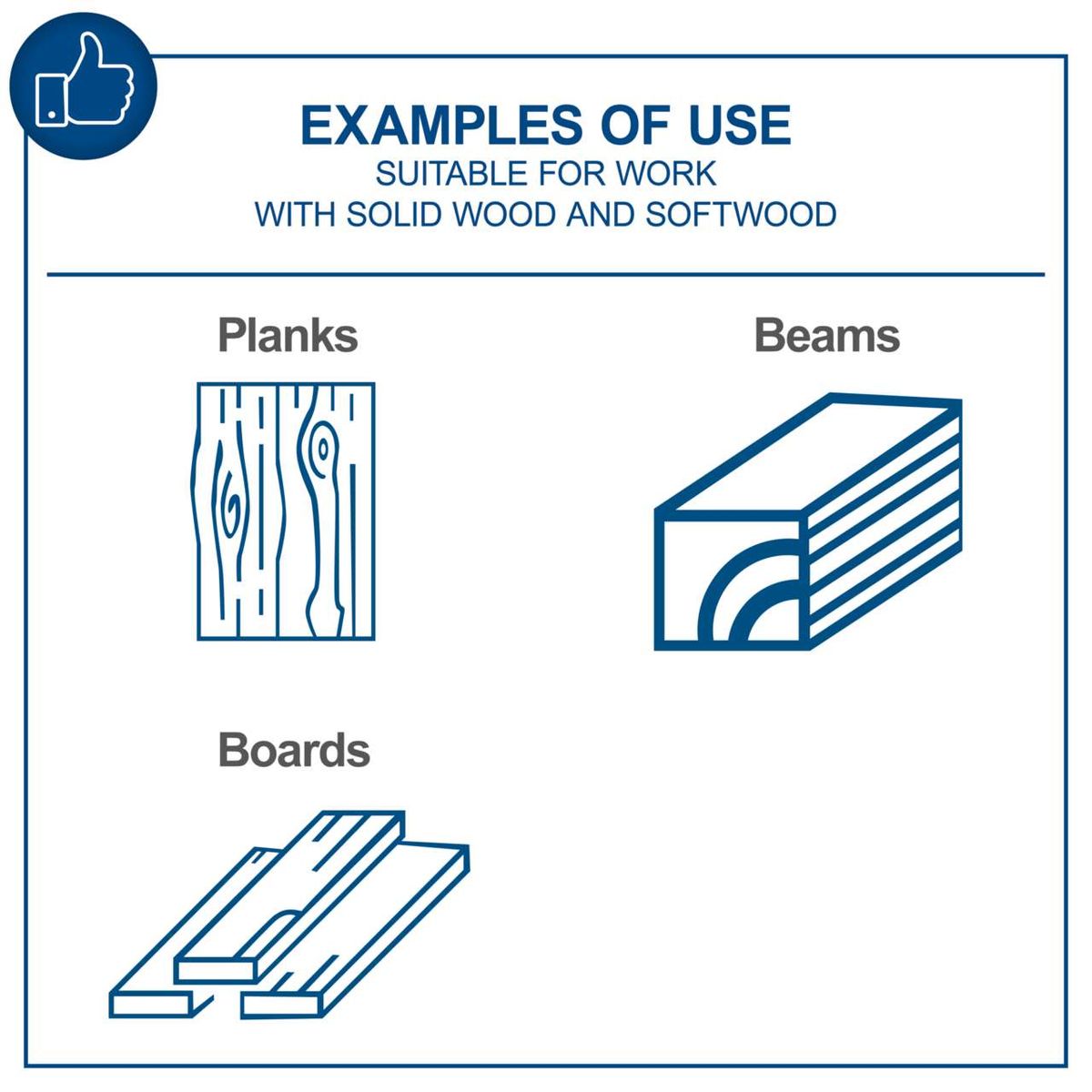

Examples of wood types: planks, boards, and beams with grain illustration for planing/thicknessing

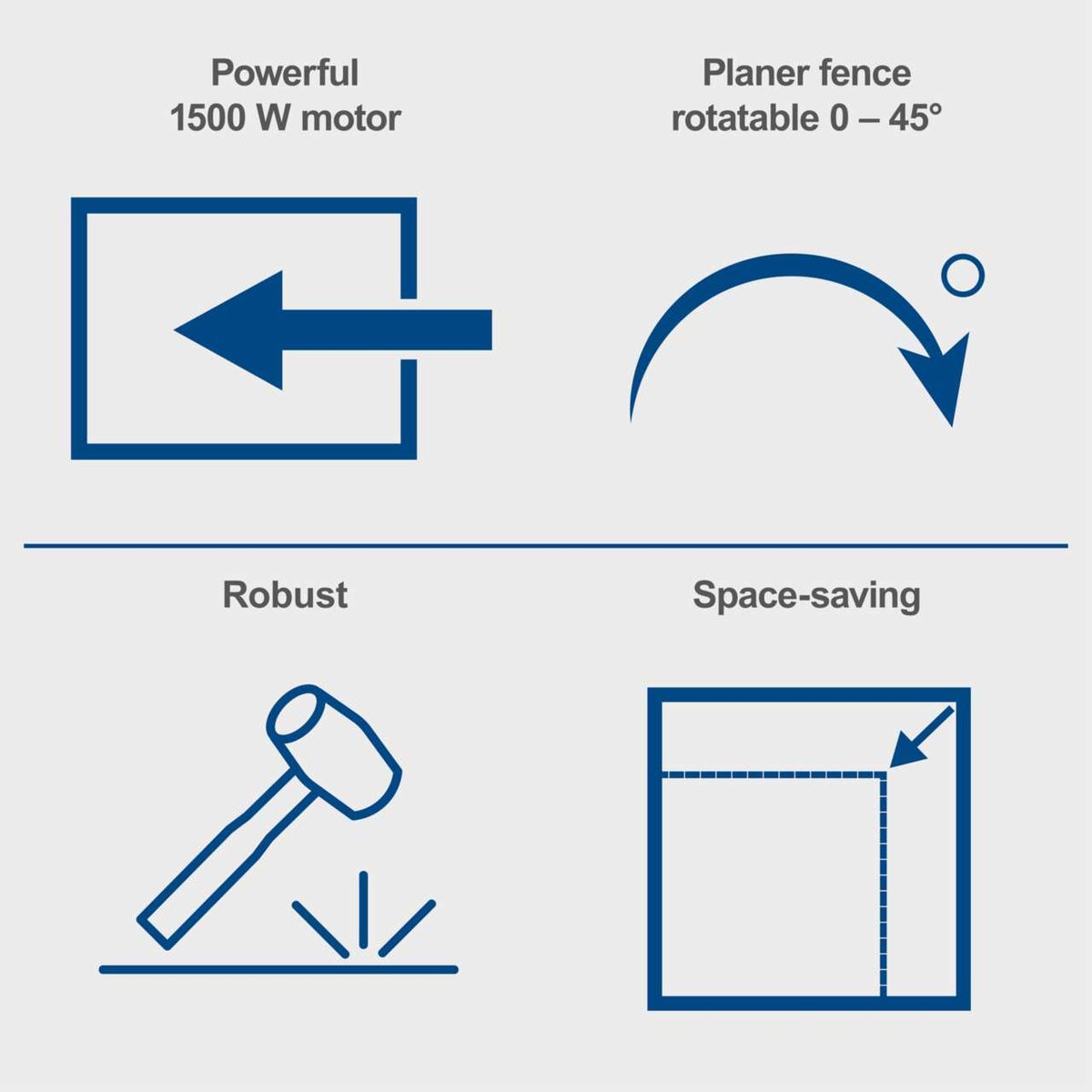

Key features of Scheppach planer thicknesser: 1500W powerful motor, adjustable fence 0–45°, robust and space-saving design

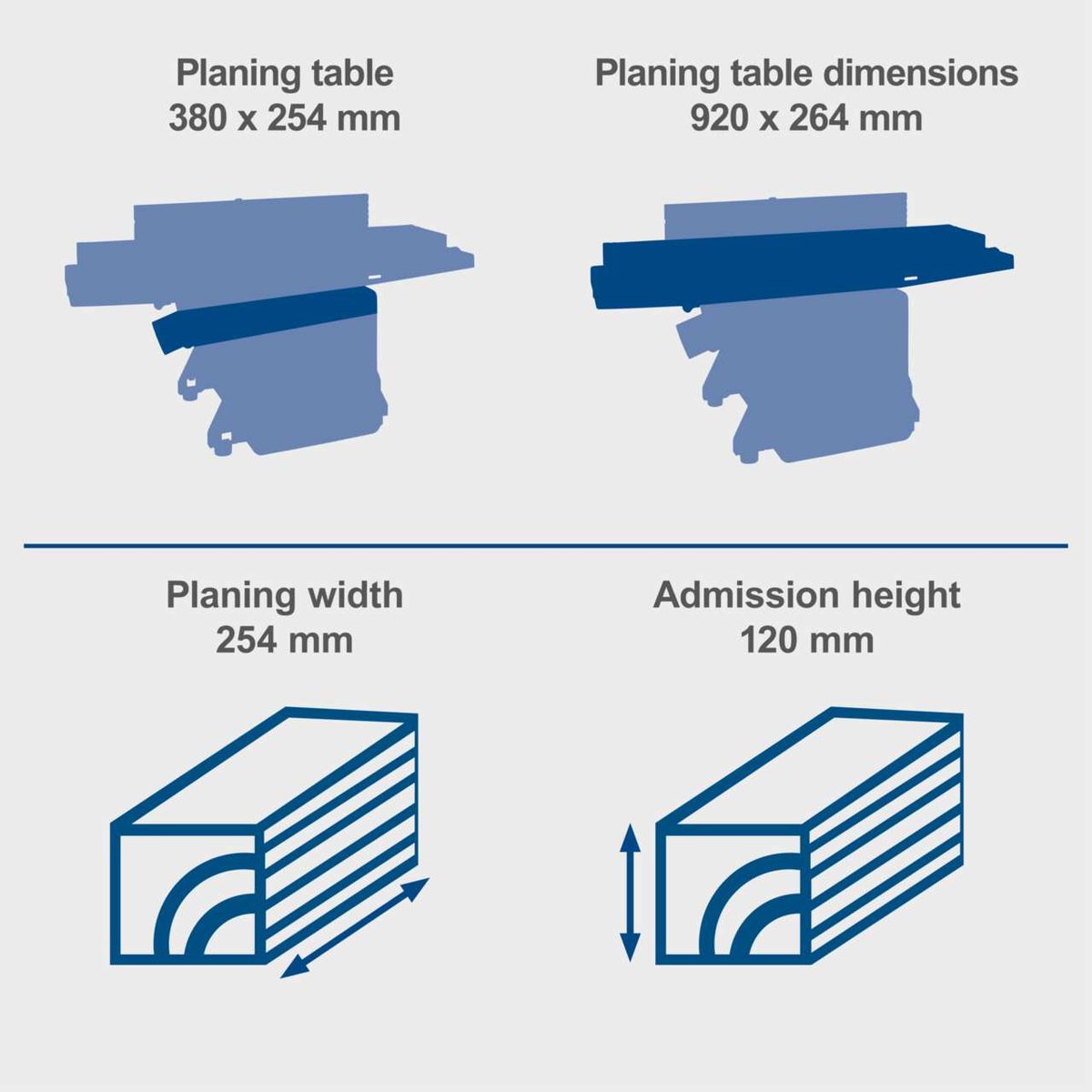

Planing table dimensions and width alongside admission height for Scheppach planer-thicknesser HMS1070

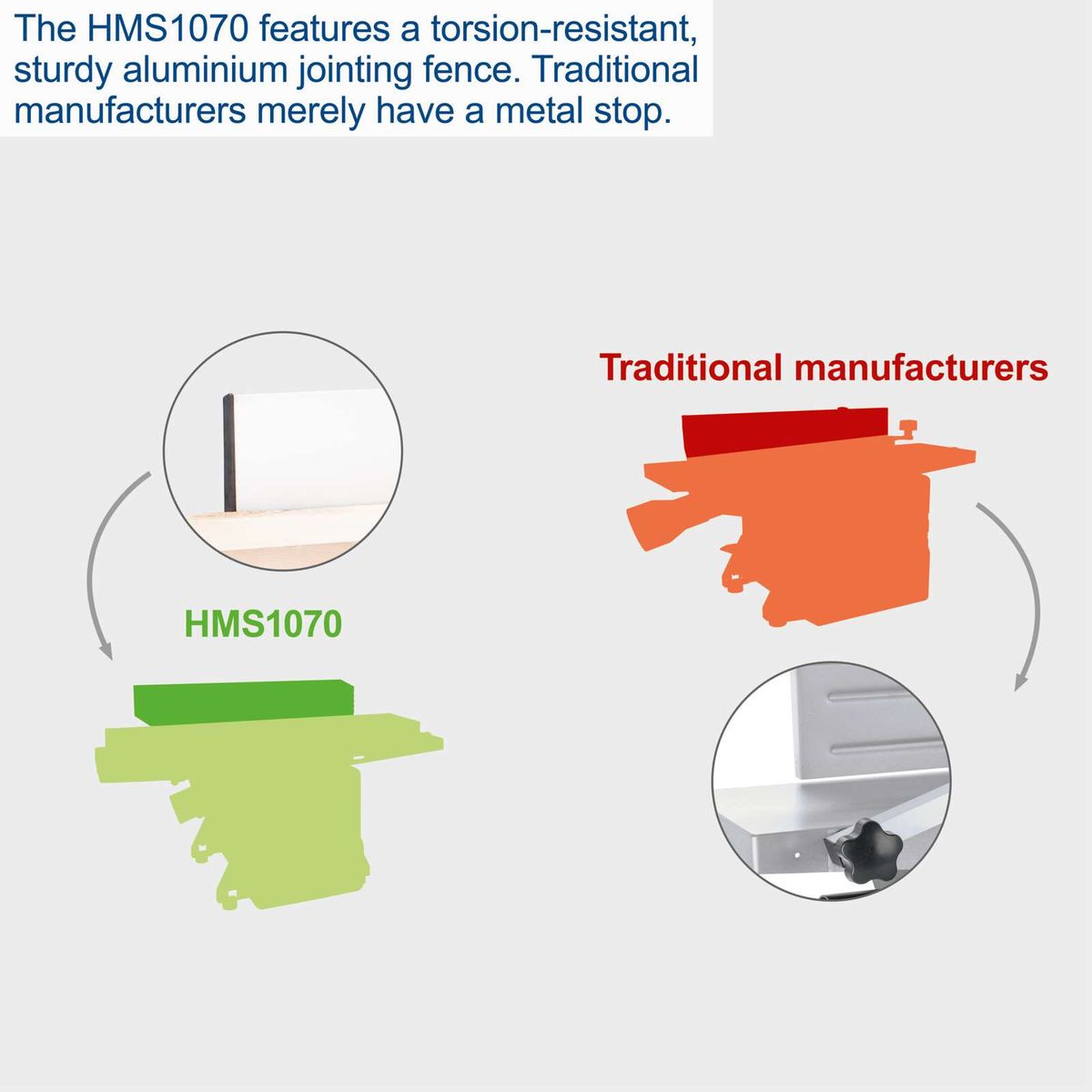

Torsion-resistant aluminium joint fence for HMS1070 planer, featuring sturdy connection

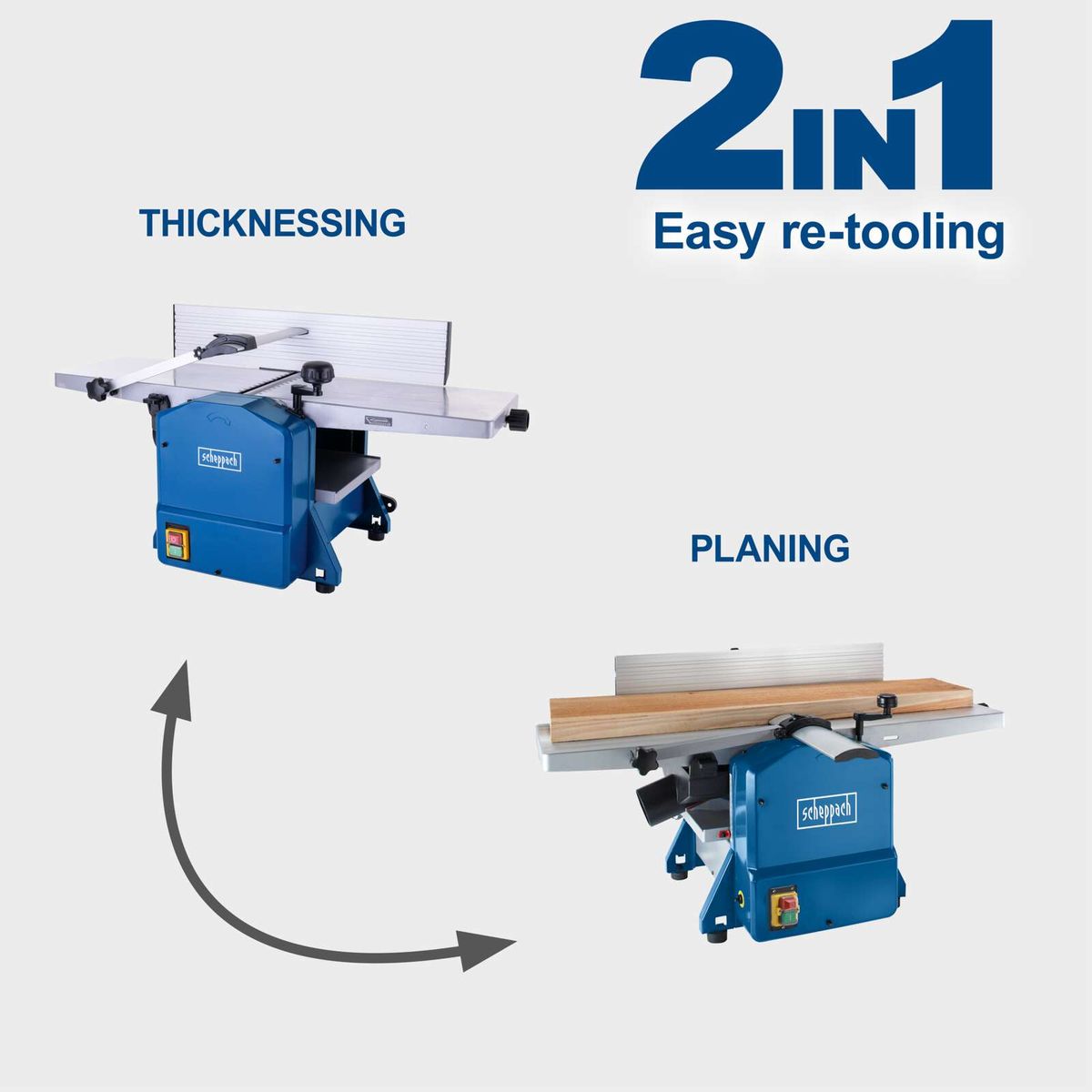

Scheppach planer/thicknesser machine with interchangeable setup for planing and thicknessing, 254 mm width, 120 mm height

Planer Thicknesser HMS1070 | 1500W | 254 x 120mm Clearance | Tilting Fence

Product number: 5902206905

-11%

£399.00

£449.00**

£332.50

Excluding VAT

Variant

Available online only

Expected delivery: 2-5 days (Freight shipping)

Amount

Questions?

Description

The Scheppach HMS1070 Planer Thicknesser is a compact and versatile 2-in-1 dressing and thicknessing machine, ideal for precise woodwork in smaller workshops. Featuring a die-cast aluminium dressing table, it's designed for discerning DIYers seeking high-quality results in a lightweight format that’s perfect for mobile use. With a stable stand, swivelling dressing fence, and dust extraction compatibility, it combines convenience with professional performance.

2-in-1 Design: Combines surface and thickness planer in one compact, portable unit – ideal for small workshops
Powerful 1500W Motor: Drives dual HS blades at 8500 rpm for smooth, precise results on timber up to 254 mm wide
Adjustable Thicknessing: Hand crank adjusts planing height up to 120 mm with 2 mm max removal and automatic 7.2 m/min feed
Planar Dressing Fence: Adjustable from 90° to 135° with a 635 mm long cast aluminium table for flat, accurate dressing
Dust-Free Operation: 76 mm extraction port ensures a clean work area when connected to a dust extraction system

This combination planer includes a surface planer function to flatten warped or uneven timber. The workpiece is smoothly guided over the aluminium table, while two durable HS planing knives remove up to 2.5 mm of material in a single pass. The 635 mm long fence supports accurate dressing at 90° or angled up to 135°, ensuring consistent and square finishes.

Once dressed, the timber moves to the thicknesser, which features an automatic infeed system operating at 7.2 m/min. It handles workpieces up to 252 mm wide and 120 mm high, making it suitable for a variety of woodworking applications. A manual hand crank enables fine-tuned height adjustment, ensuring even results across multiple passes.

The 1500 W motor powers the machine at a rapid 8,500 rpm, delivering smooth and efficient performance with minimal vibration. Rubber feet help dampen noise and movement, allowing for steady, controlled operation throughout your work session.

Fitted with two carbide knives for both dressing and planing, the HMS1070 is well-suited for regular use. The integrated 76 mm dust extraction port helps maintain a tidy, safe workspace when connected to an external extractor, making this planer thicknesser a reliable and user-friendly addition to any workshop.
