Planer Thicknesser HMS1070 | 1500W | 254 x 120mm Clearance | Tilting Fence

Product number: 5902206901

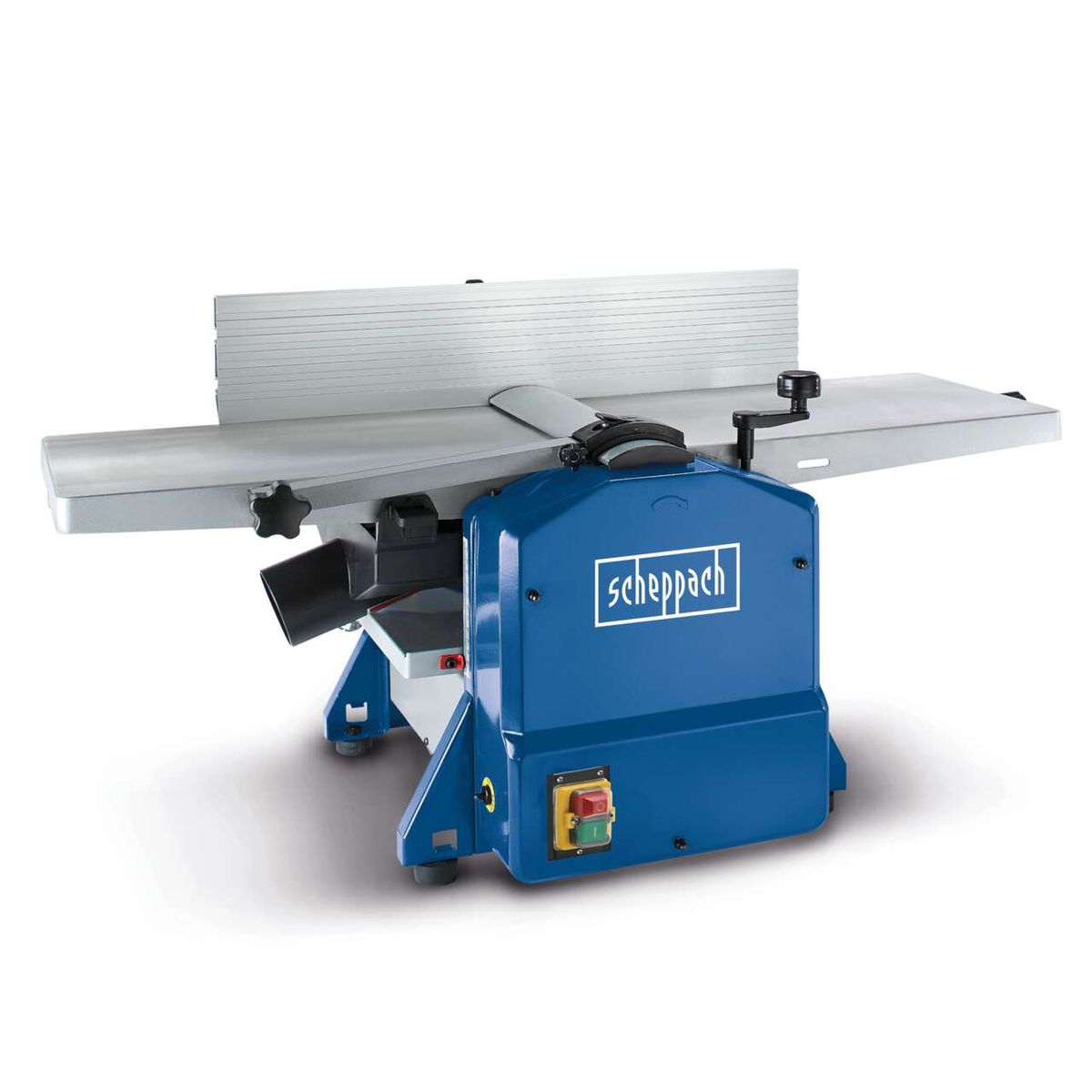

The planer / thicknesser HMS1070 by Scheppach with 1500W power, 254mm planing width and 120mm planing height. Shown from the side with view on the planing width and the controls.

Key features of the Planer / Thicknesser HMS1070: 360° rotation, model number HMS1070, manufactured by Scheppach from Germany.

planer / thicknesser HMS1070 scheppach (DIY): The machine offers planing and thicknessing in one device.

Examples of use for the planer / thicknesser HMS1070 Scheppach. Suitable for working with solid wood and softwood. Shown are planks, beams, and boards.

The Scheppach HMS1070 planer and thicknesser features a powerful 1500W motor. It has a rotatable planer fence (0–45°), is robust, and space-saving. The machine is ideal for precise planing and thicknessing.

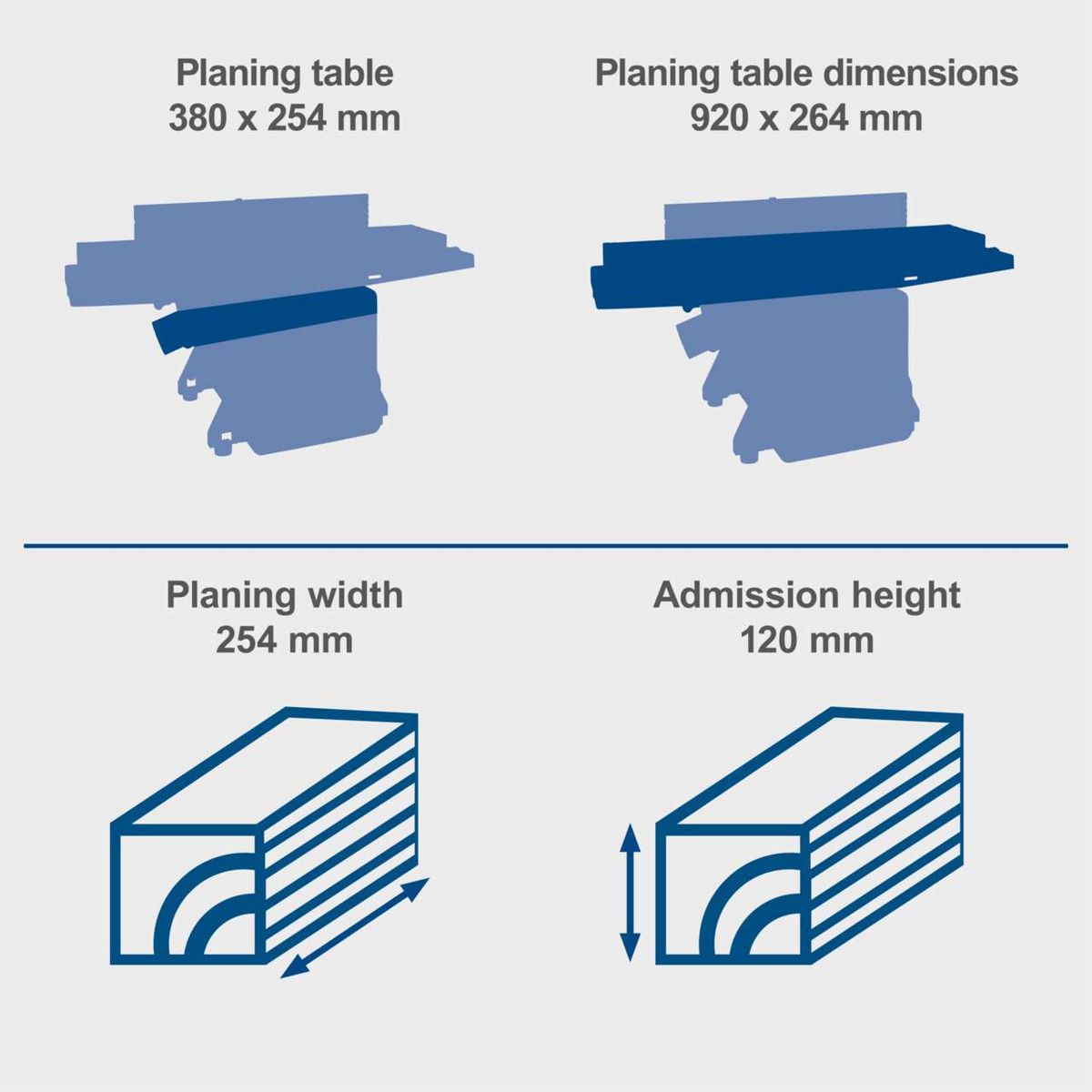

The Planer Thicknesser HMS1070 has a planing width of 254 mm and an admission height of 120 mm. The planing table dimensions are 380 x 254 mm and 920 x 264 mm.

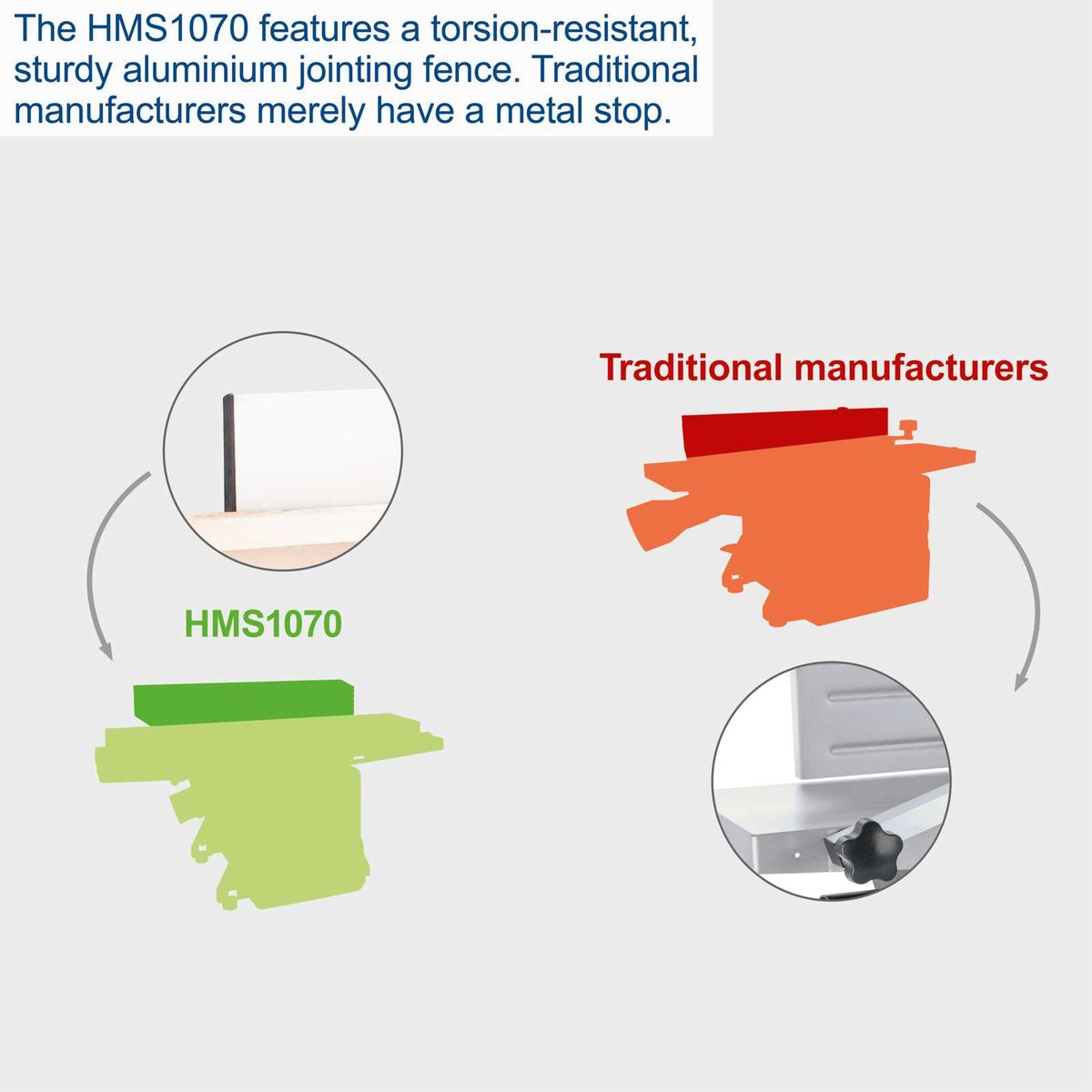

The HMS1070 by Scheppach features a torsion-resistant, sturdy aluminium joint fence. Traditional manufacturers only have a metal stop.

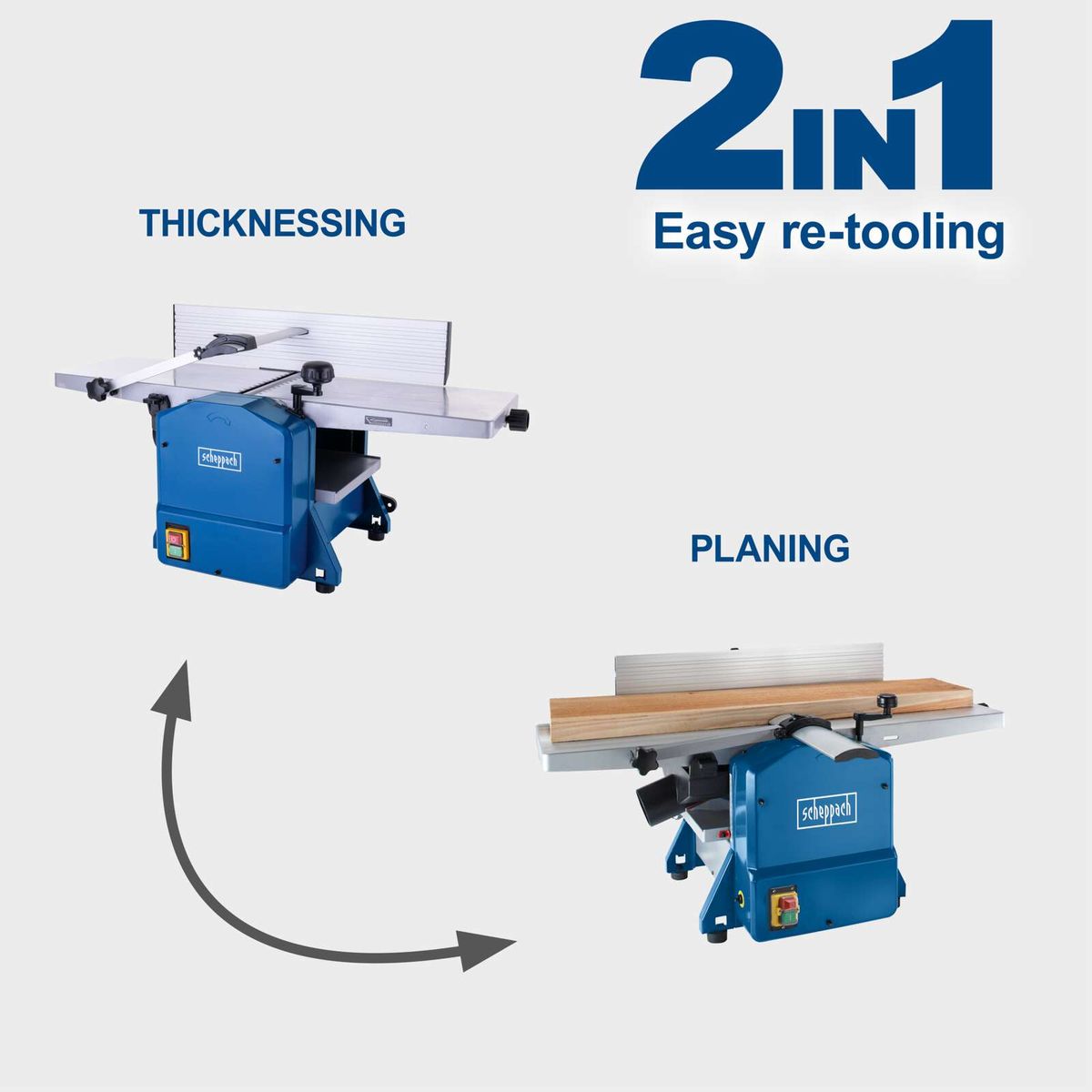

The planer / thicknesser HMS1070 from Scheppach offers easy retooling between planing and thicknessing. It has a planing width of 254 mm and a planing height of 120 mm. The machine has a power of 1500 watts.

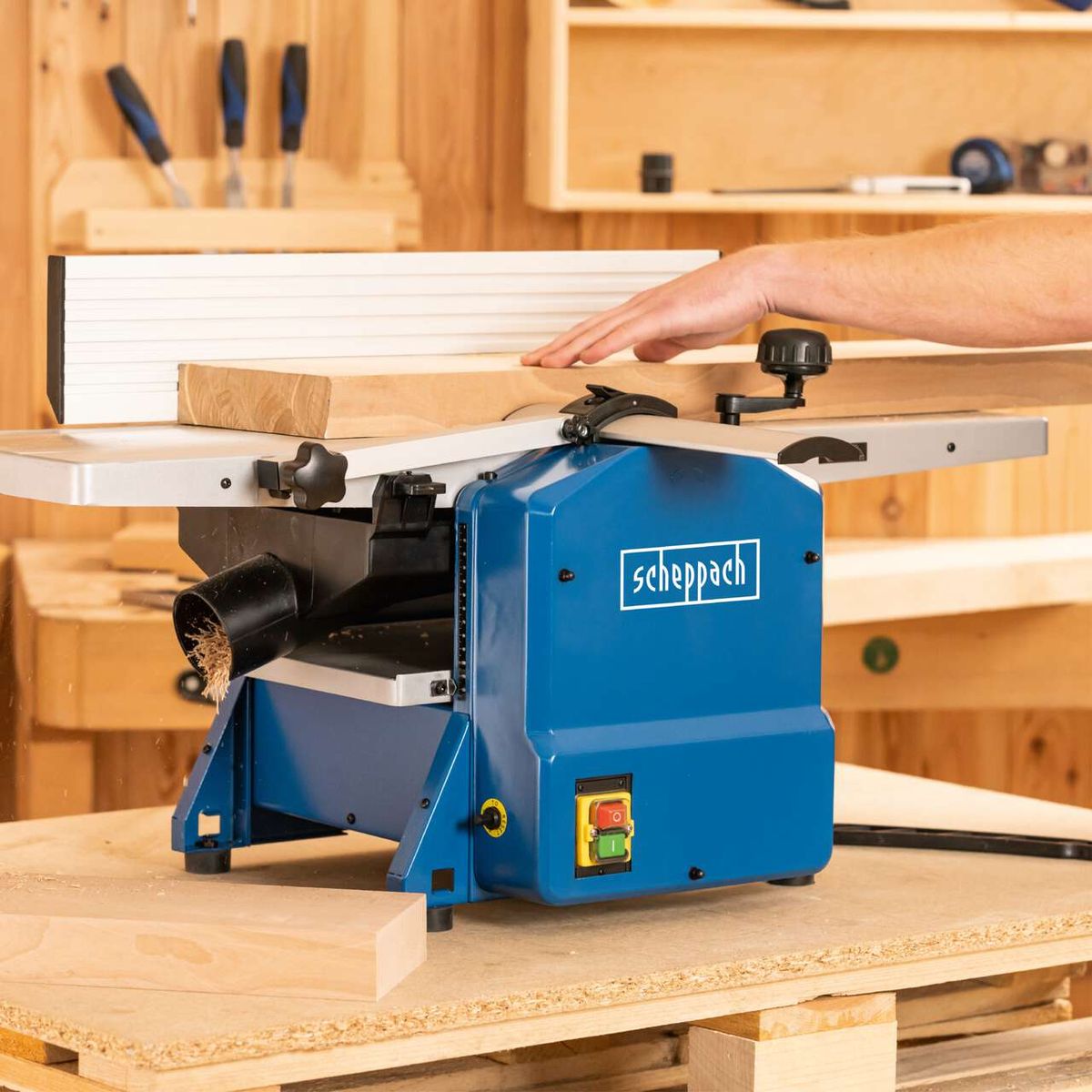

Planer / thicknesser HMS1070 Scheppach, 1500W, planing width 254mm, height 120mm. Person operating the machine in a workshop.

Planer / thicknesser HMS1070 Scheppach, 1500W, planing width 254mm, height 120mm. The machine is shown from the side.

A man operates the planer / thicknesser HMS1070 by Scheppach. He wears safety goggles and works on a wooden board. In the background, tools and wooden shelves are visible.

Planer / thicknesser HMS1070 Scheppach, front view detail with measuring scale and dust extraction.

5 views in the last 24h

Planer Thicknesser HMS1070 | 1500W | 254 x 120mm Clearance | Tilting Fence

Product number: 5902206901

£349.00

£290.83

Excluding VAT

Available online only

Expected delivery: 1-3 days (Parcel shipping)

Variant

Amount

Questions?

Description

The Scheppach HMS1070 Planer Thicknesser is a compact and versatile 2-in-1 dressing and thicknessing machine, ideal for precise woodwork in smaller workshops. Featuring a die-cast aluminium dressing table, it's designed for discerning DIYers seeking high-quality results in a lightweight format that’s perfect for mobile use. With a stable stand, swivelling dressing fence, and dust extraction compatibility, it combines convenience with professional performance.

This combination planer includes a surface planer function to flatten warped or uneven timber. The workpiece is smoothly guided over the aluminium table, while two durable HS planing knives remove up to 2.5 mm of material in a single pass. The 635 mm long fence supports accurate dressing at 90° or angled up to 135°, ensuring consistent and square finishes.

2-in-1 Design: Combines surface and thickness planer in one compact, portable unit – ideal for small workshops
Powerful 1500W Motor: Drives dual HS blades at 8500 rpm for smooth, precise results on timber up to 254 mm wide
Adjustable Thicknessing: Hand crank adjusts planing height up to 120 mm with 2 mm max removal and automatic 7.2 m/min feed
Planar Dressing Fence: Adjustable from 90° to 135° with a 635 mm long cast aluminium table for flat, accurate dressing
Dust-Free Operation: 76 mm extraction port ensures a clean work area when connected to a dust extraction system

Once dressed, the timber moves to the thicknesser, which features an automatic infeed system operating at 7.2 m/min. It handles workpieces up to 252 mm wide and 120 mm high, making it suitable for a variety of woodworking applications. A manual hand crank enables fine-tuned height adjustment, ensuring even results across multiple passes.

The 1500 W motor powers the machine at a rapid 8,500 rpm, delivering smooth and efficient performance with minimal vibration. Rubber feet help dampen noise and movement, allowing for steady, controlled operation throughout your work session.

Fitted with two carbide knives for both dressing and planing, the HMS1070 is well-suited for regular use. The integrated 76 mm dust extraction port helps maintain a tidy, safe workspace when connected to an external extractor, making this planer thicknesser a reliable and user-friendly addition to any workshop.
