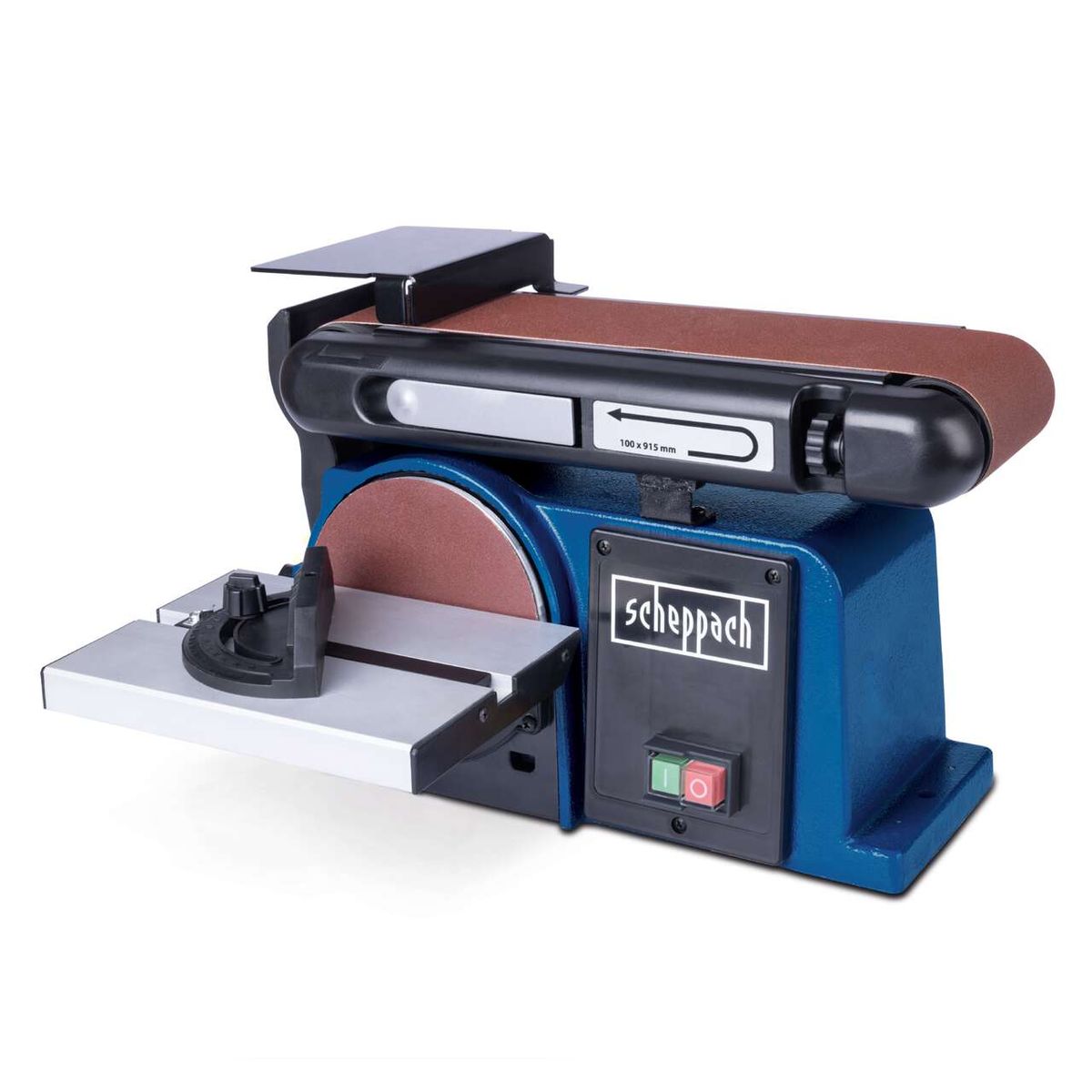

Scheppach belt and disc sander featuring a 150 mm grinding disc and a 100 x 915 mm belt

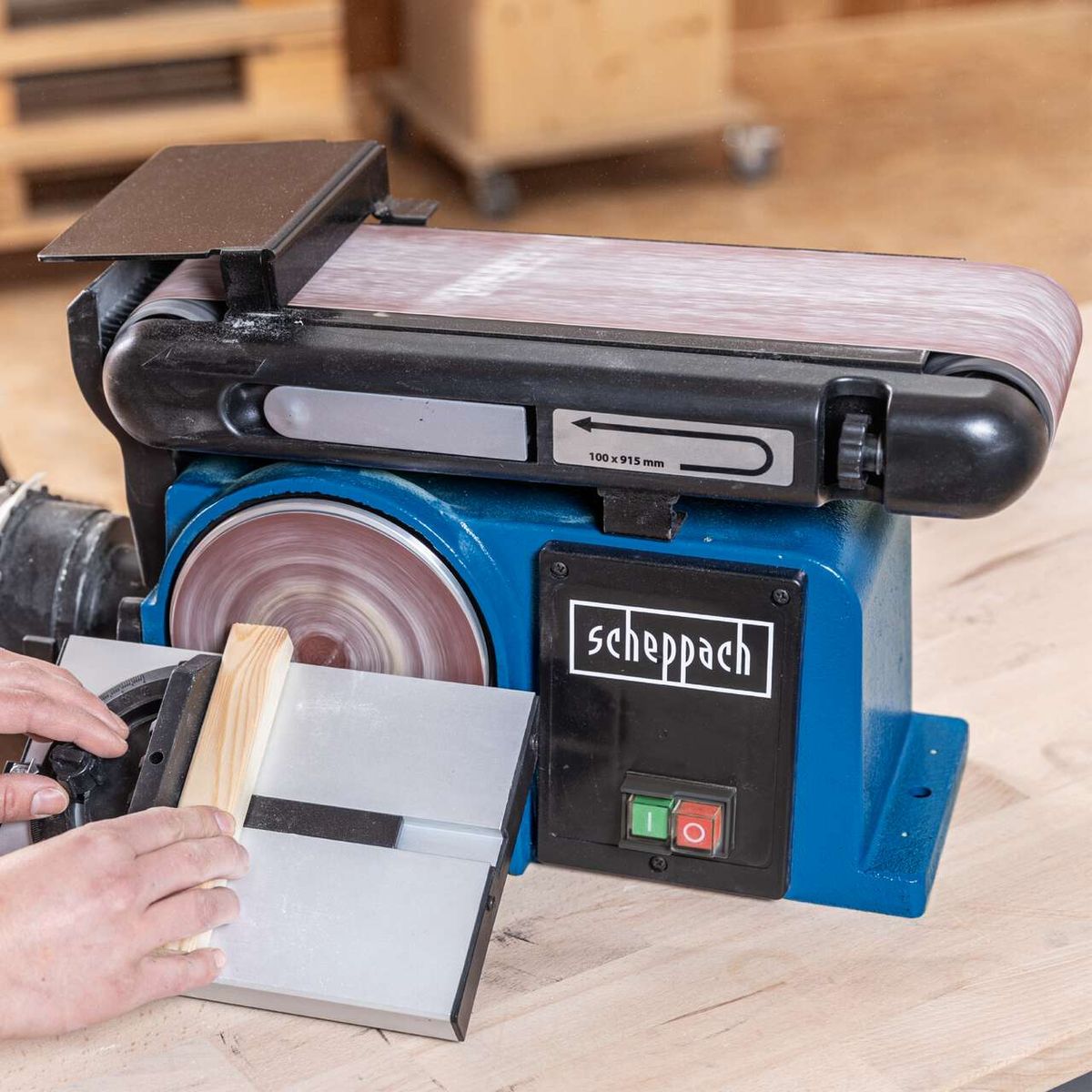

Scheppach belt and disc sander with worktable, showing setup for accurate sanding

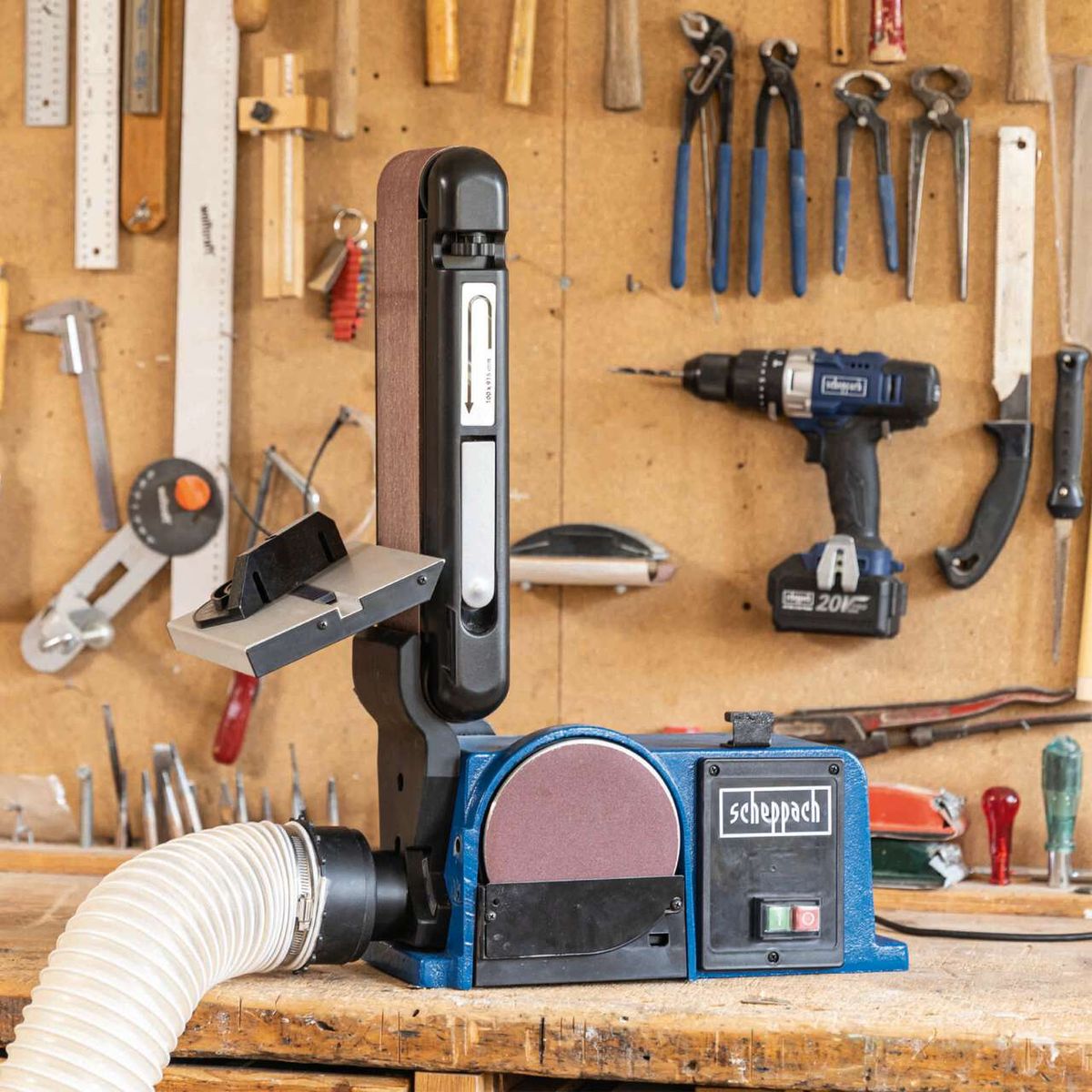

Scheppach belt and disc sander BTS800 with adjustable worktable and dust extraction hose.

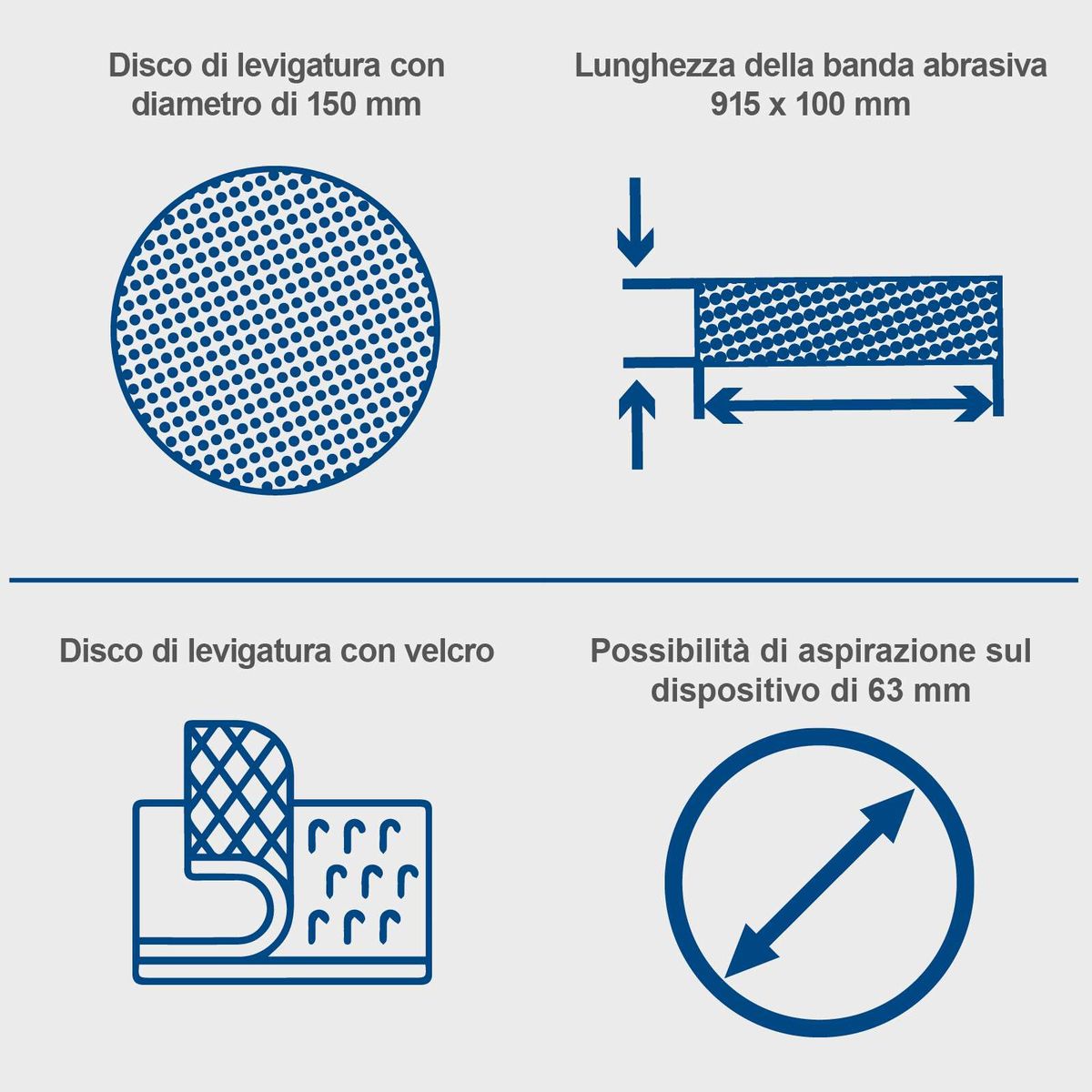

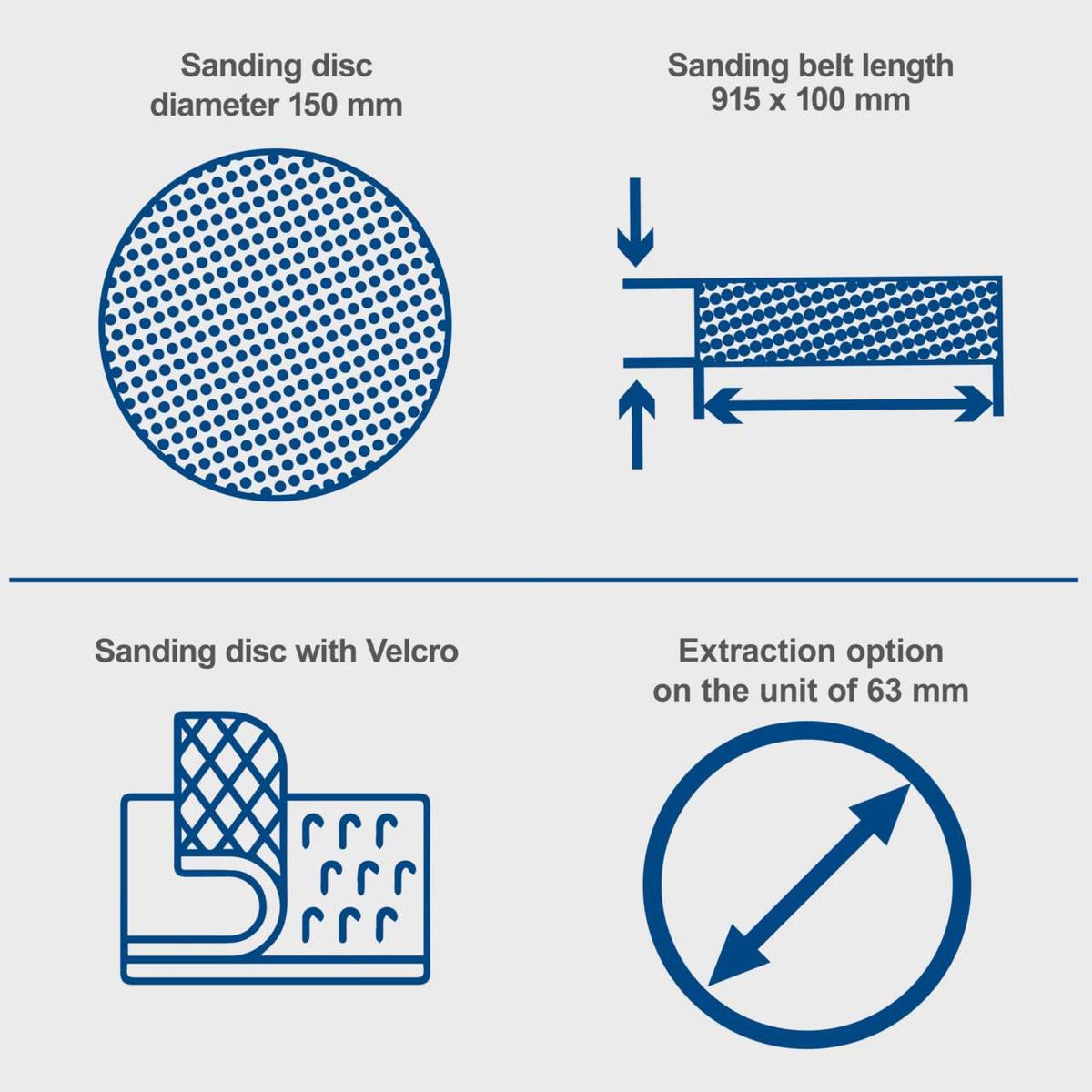

Diagram showing sizes of sanding discs (150 mm) and belts (915 x 100 mm) with extraction feature (63 mm unit)

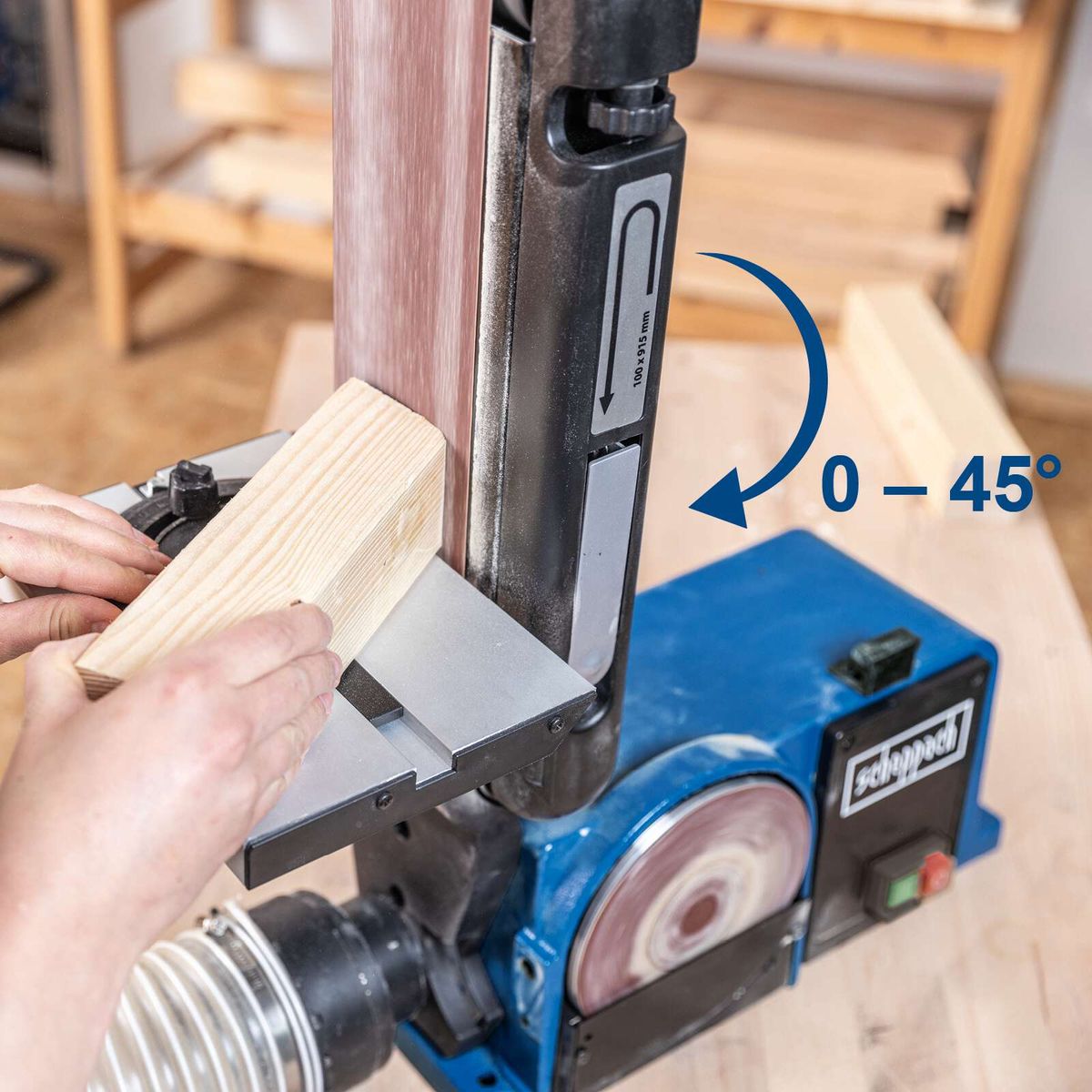

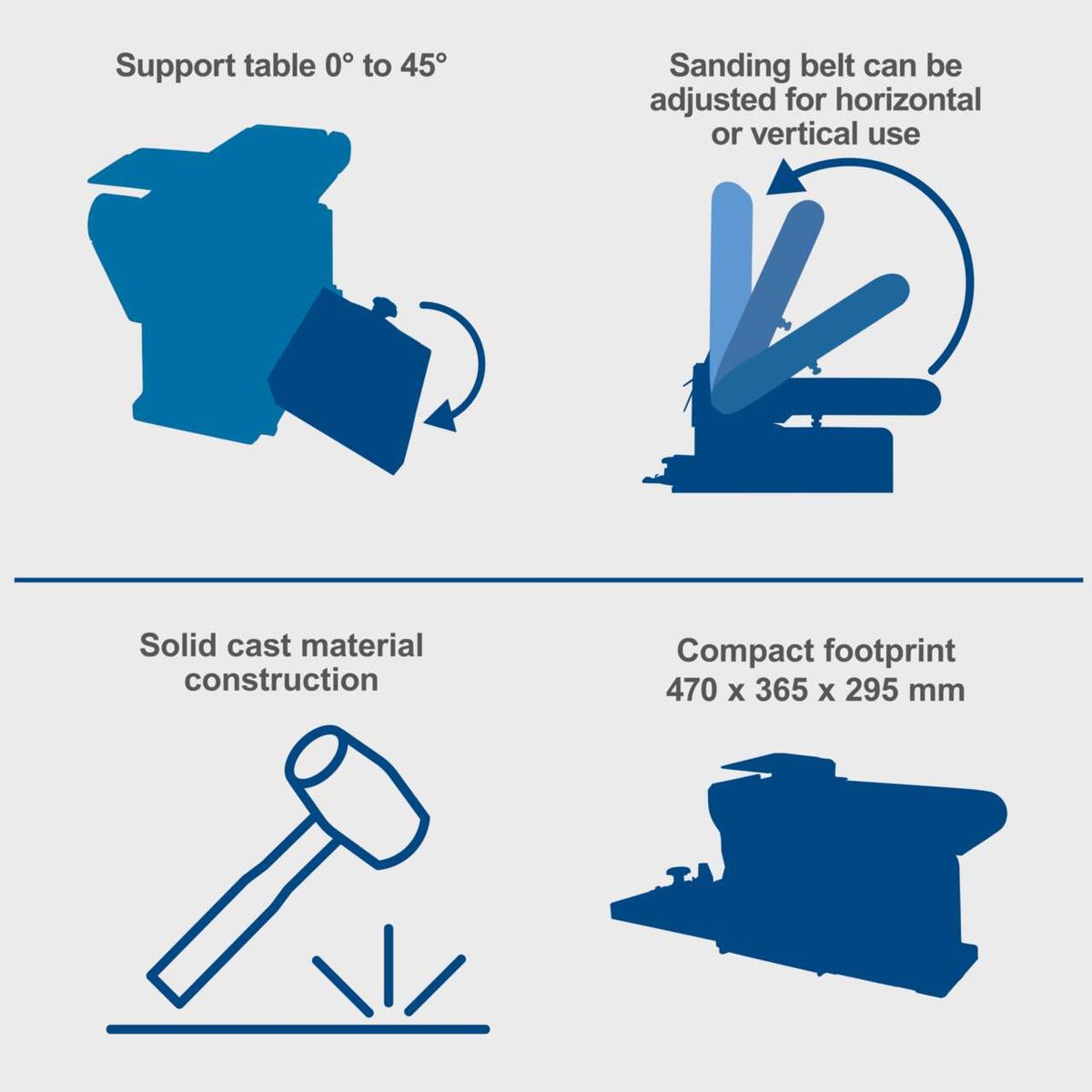

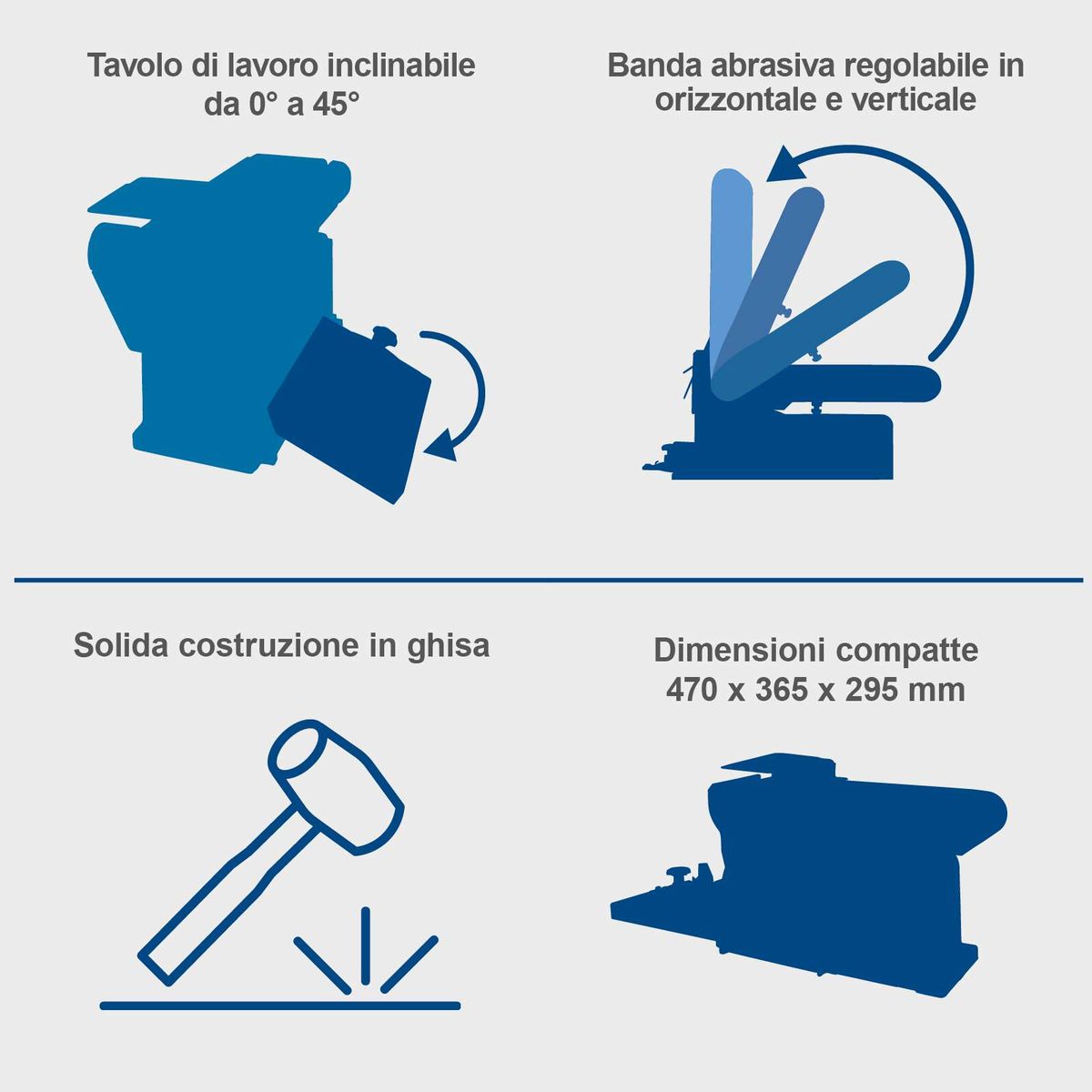

Belt and disc sander with adjustable worktable (0°–45°), adjustable belt for horizontal/vertical use, solid cast construction, compact dimensions (470 x 365 x 295 mm)

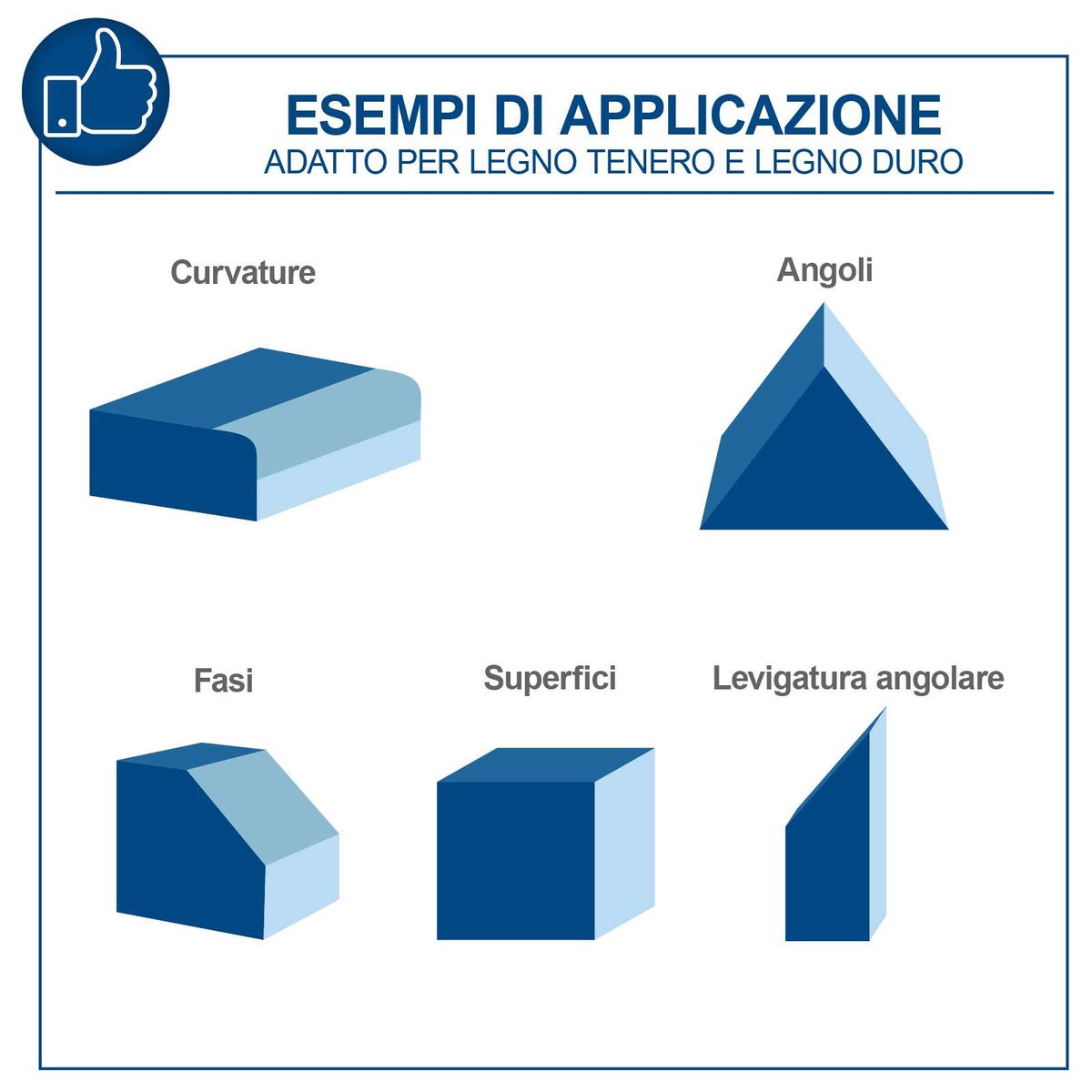

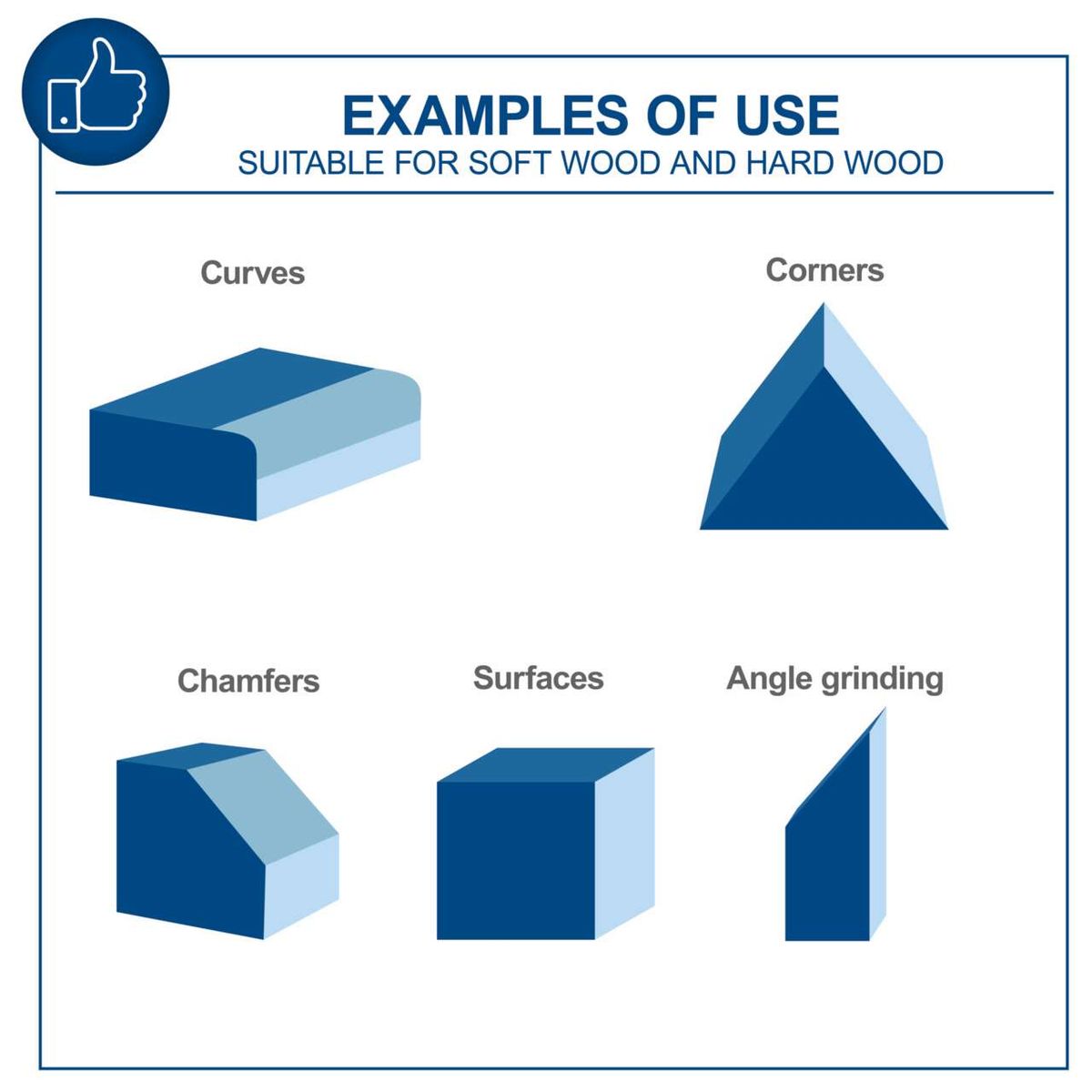

Examples of grinding shapes: curves, corners, chamfers, surfaces, and angle grinding

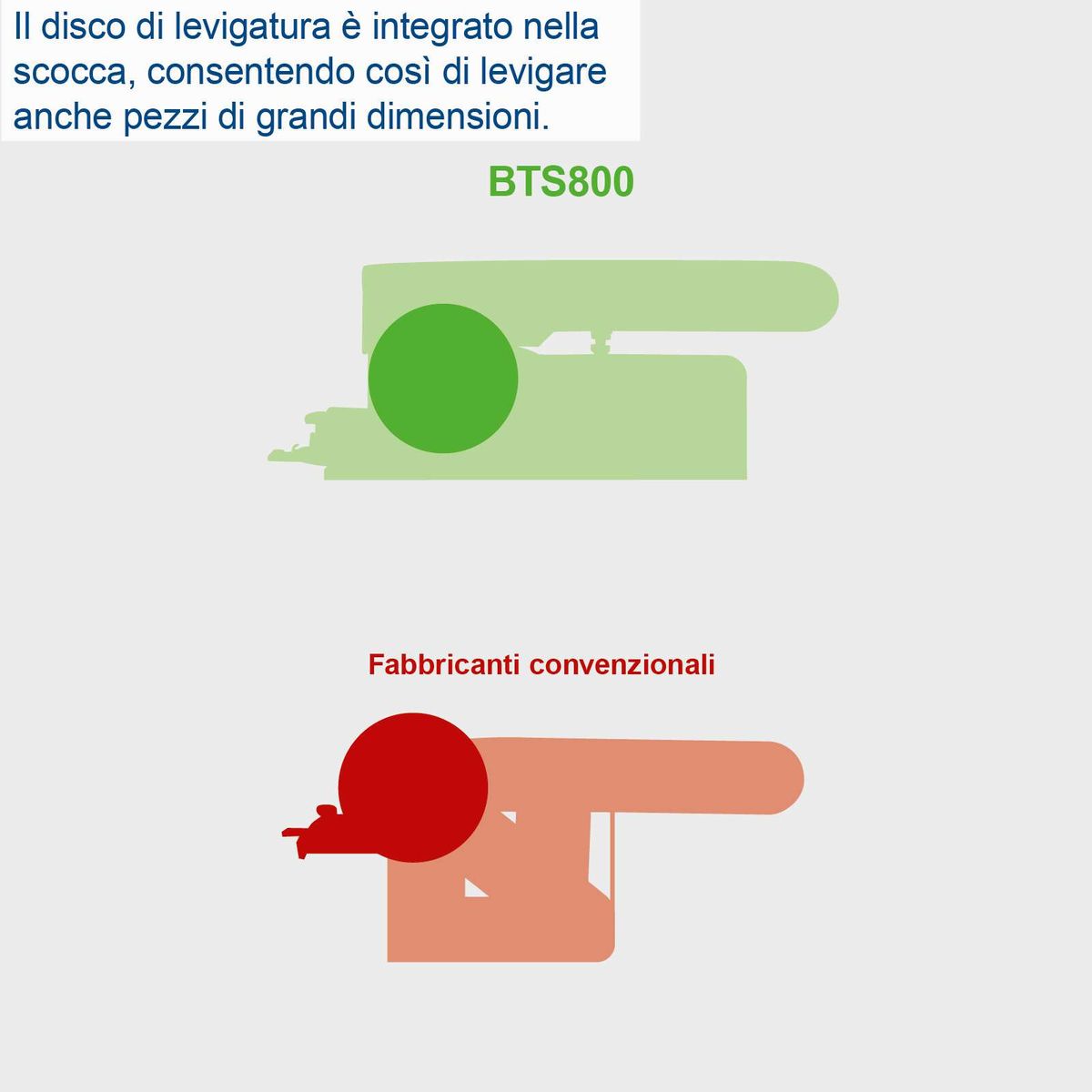

Scheppach belt and disc sander with integrated disc sander housing for large workpieces

Scheppach Belt and Disc Grinder BTS 800 rated for excellent value with comparison to disc sander

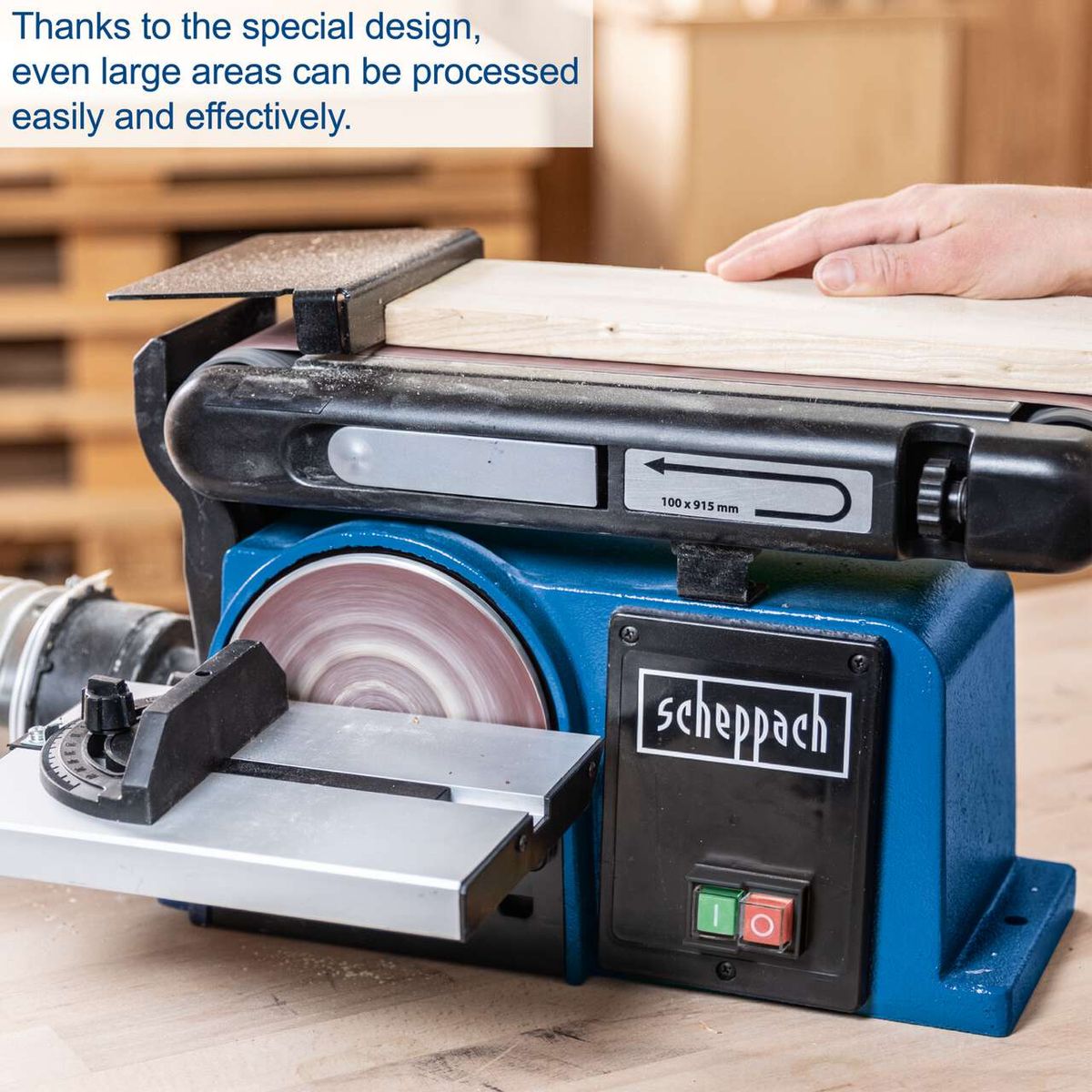

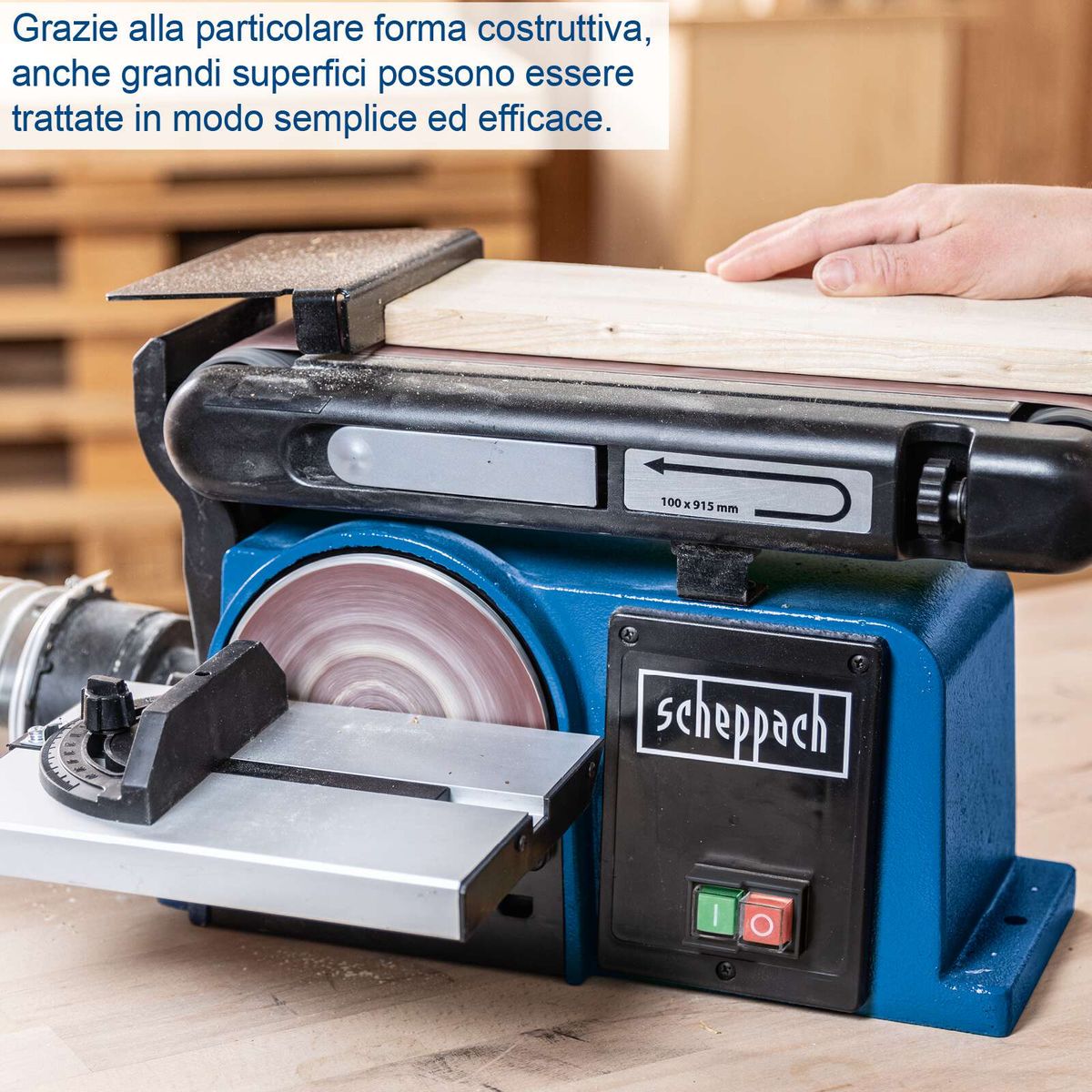

Belt and disc sander with spacious work area for effective surface finishing, featuring a large worktable and grinding disc.

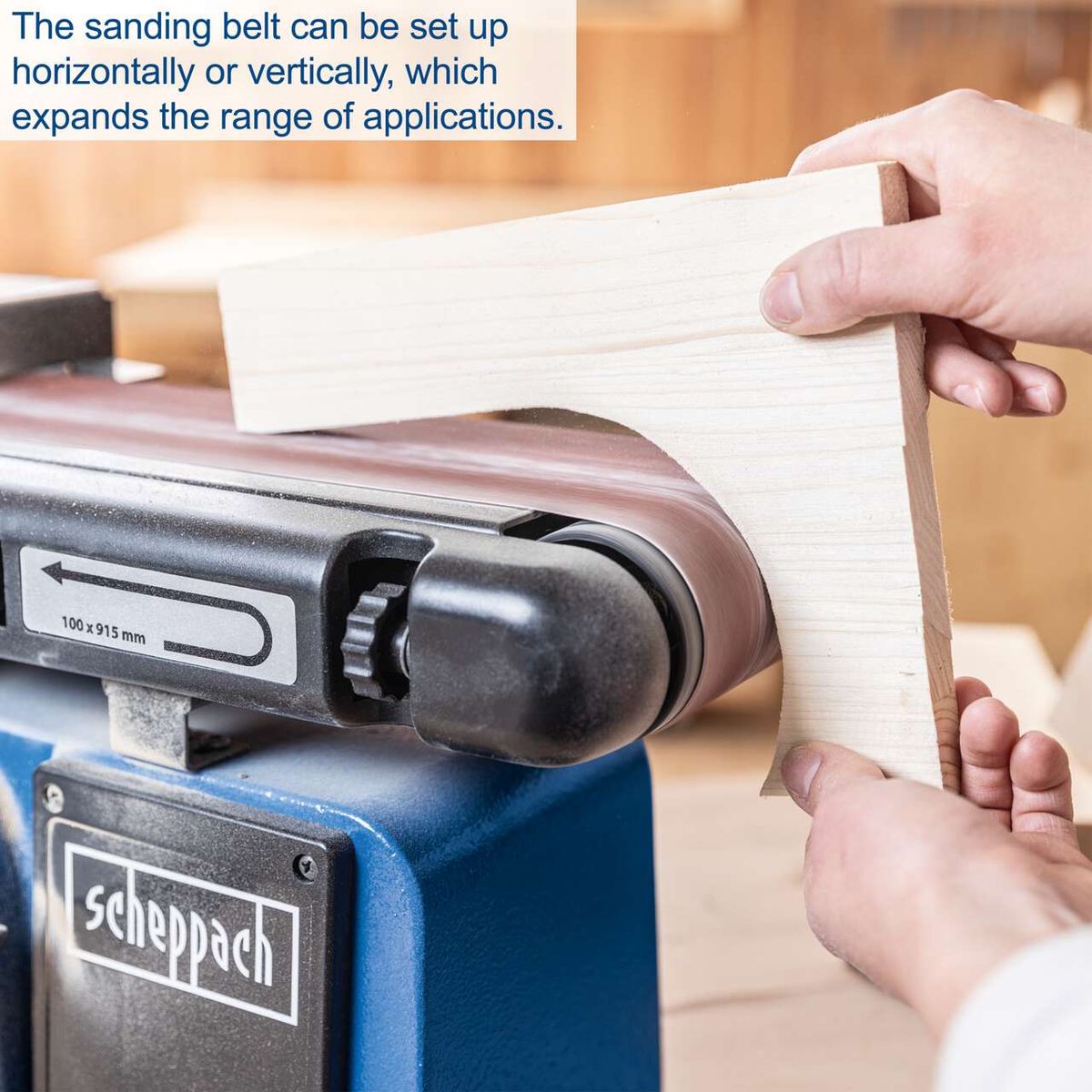

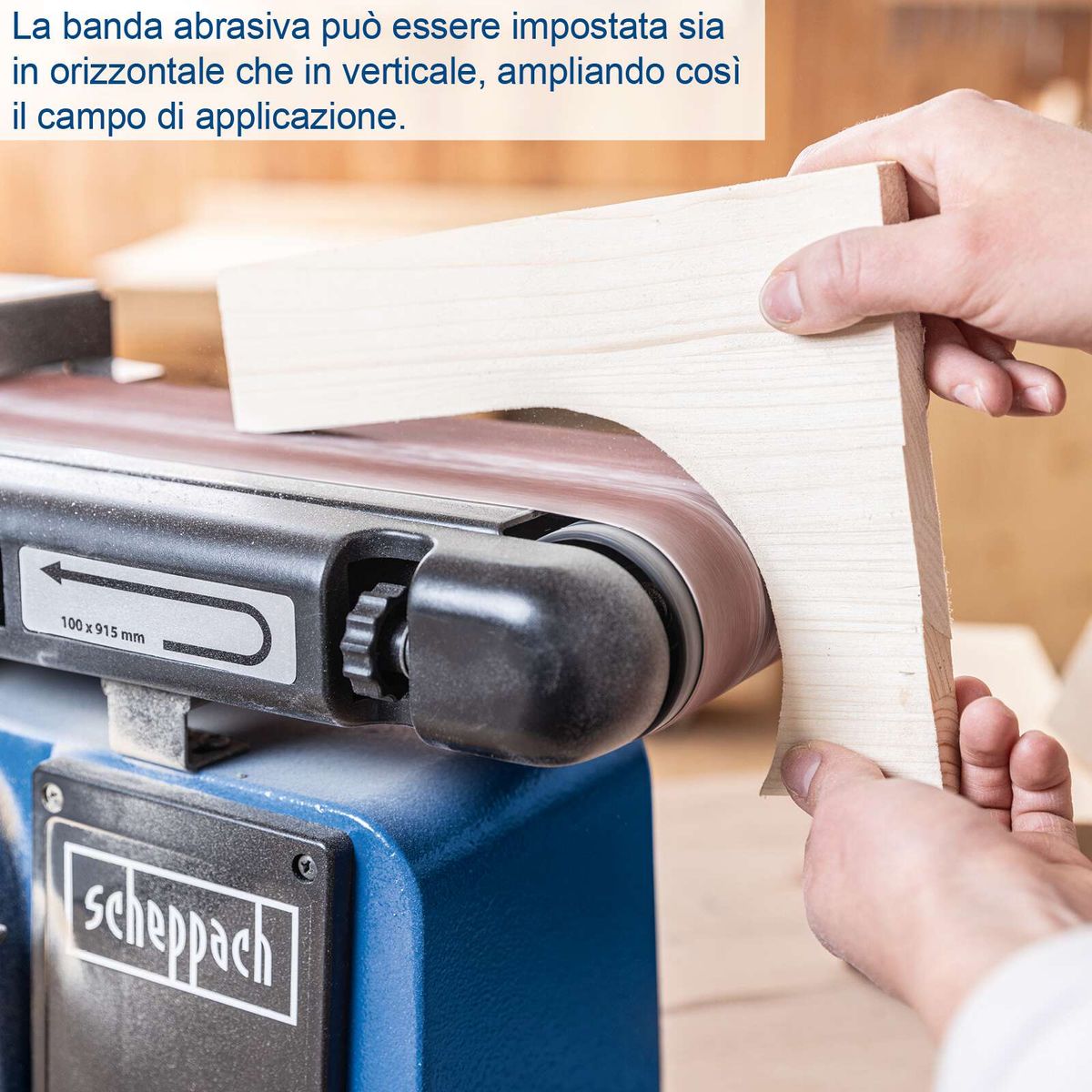

Scheppach belt sander with adjustable belt for horizontal and vertical use

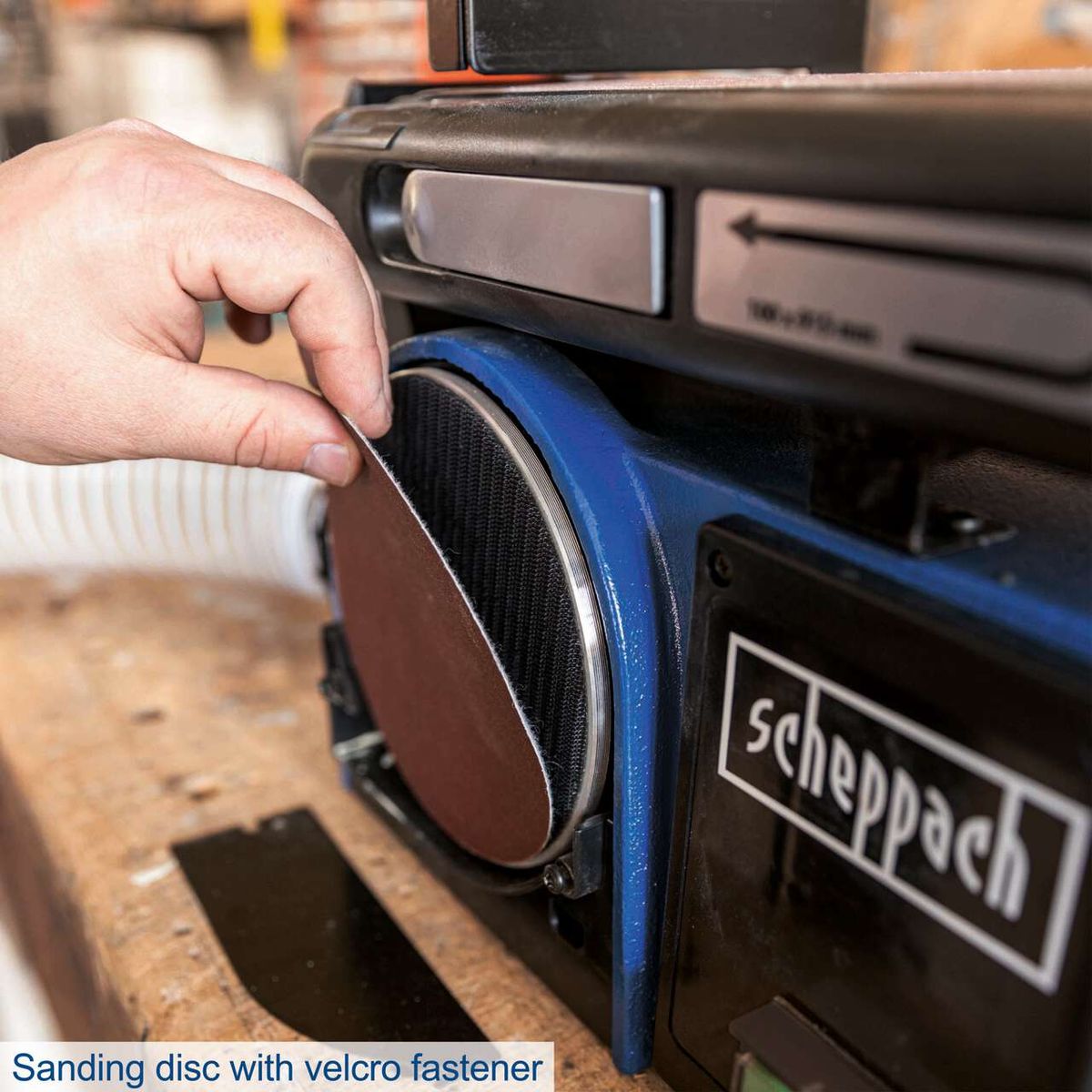

Scheppach belt sander with Velcro disc attachment for the grinding disc holder

Belt & Disc Sander BTS800 | 370W | 2980 RPM | 150mm Disc | 100 x 280mm Belt

Product number: 4903302901

This product is currently not available

Description

The Scheppach BTS800 Belt & Disc Sander is a dual-function sanding machine that combines both belt and disc sanding, making it a highly versatile tool for woodworking projects. Ideal for DIY enthusiasts, this bench-top sander is equipped with a quiet, low-vibration 370 W induction motor, offering reliable performance when shaping, smoothing, or refining wood and similar materials.

Built with a durable cast-iron base, the BTS800 offers excellent stability and high contact pressure, helping achieve consistently smooth finishes. The 100 x 280 mm sanding belt can be positioned either horizontally or vertically, and the belt pad tilts from 0° to 90° using a simple Allen key adjustment. With a belt speed of 7.5 m/s, it handles both flat surfaces and contours with ease.

2-in-1 Design: Combines horizontal/vertical belt sander and 150 mm disc sander in one compact unit
Quiet 370W Induction Motor: Ensures low-vibration, smooth operation for precise sanding
Tilting Aluminium Work Table: Adjustable up to 45° with groove and cross stop for perfect angle cuts
Tool-Free Sandpaper Change: Velcro-backed sanding pad and removable metal stop for easy setup
Integrated Dust Extraction: Keeps workspace clean with built-in dust port for external vacuums

The 150 mm sanding disc rotates at 2850 rpm, providing powerful surface removal. Sandpaper changes are fast and simple thanks to the hook-and-loop Velcro system. For angled sanding, the 215 x 145 mm work table tilts up to 45°, while the integrated mitre guide adjusts between -60° and +60°—ideal for precise bevel or compound angle work.

To support cleaner working conditions, the BTS800 is fitted with a built-in dust extraction port. This allows you to connect a vacuum or dust extractor, minimising airborne particles and keeping your workspace clear of debris.

Whether you're working on straight edges, curves, or angles, the BTS800 offers a compact, dependable solution with flexible sanding options—all in one machine. Its robust construction and thoughtful features make it a valuable addition to any workshop.
