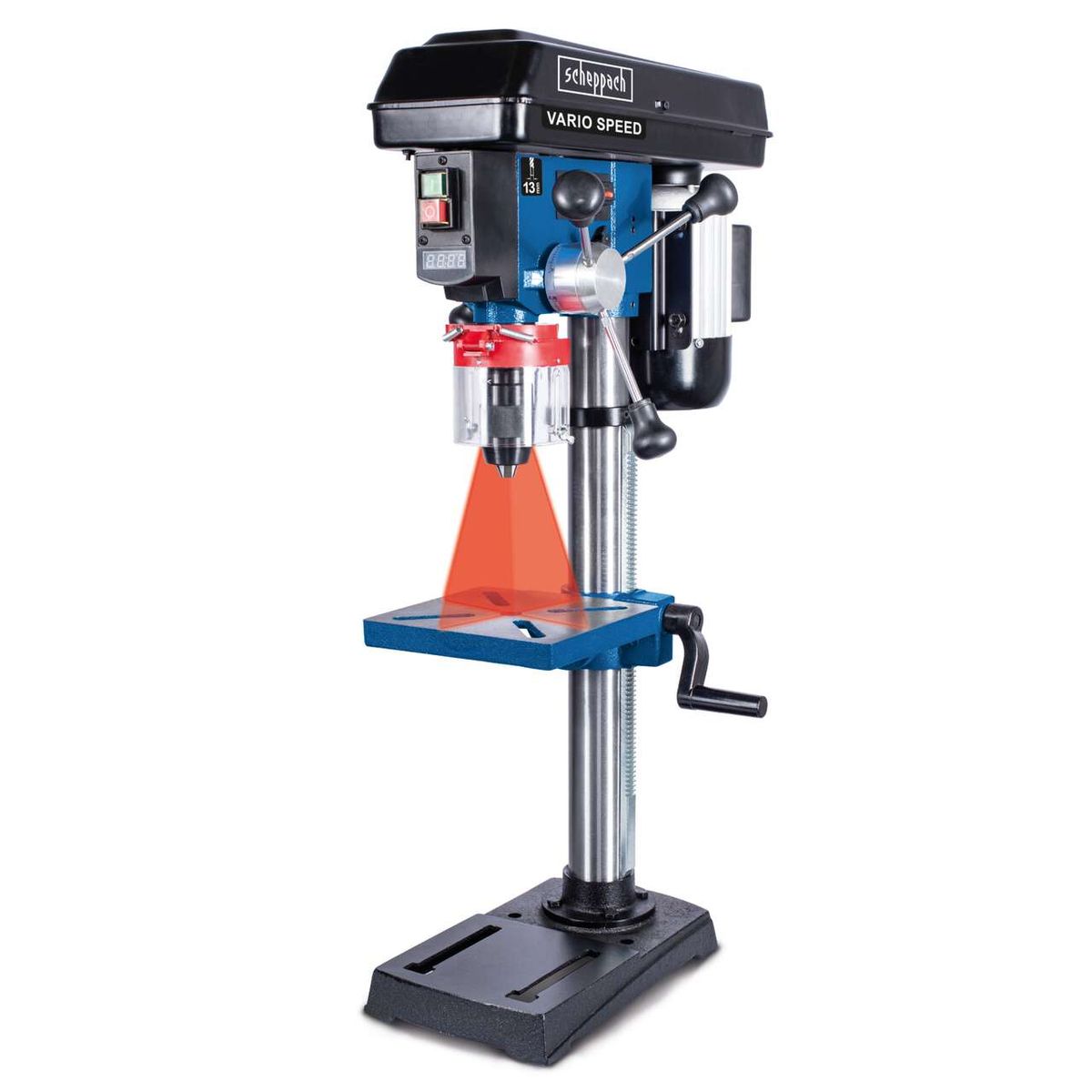

Scheppach bench pillar drill with digital variable speed and laser guide

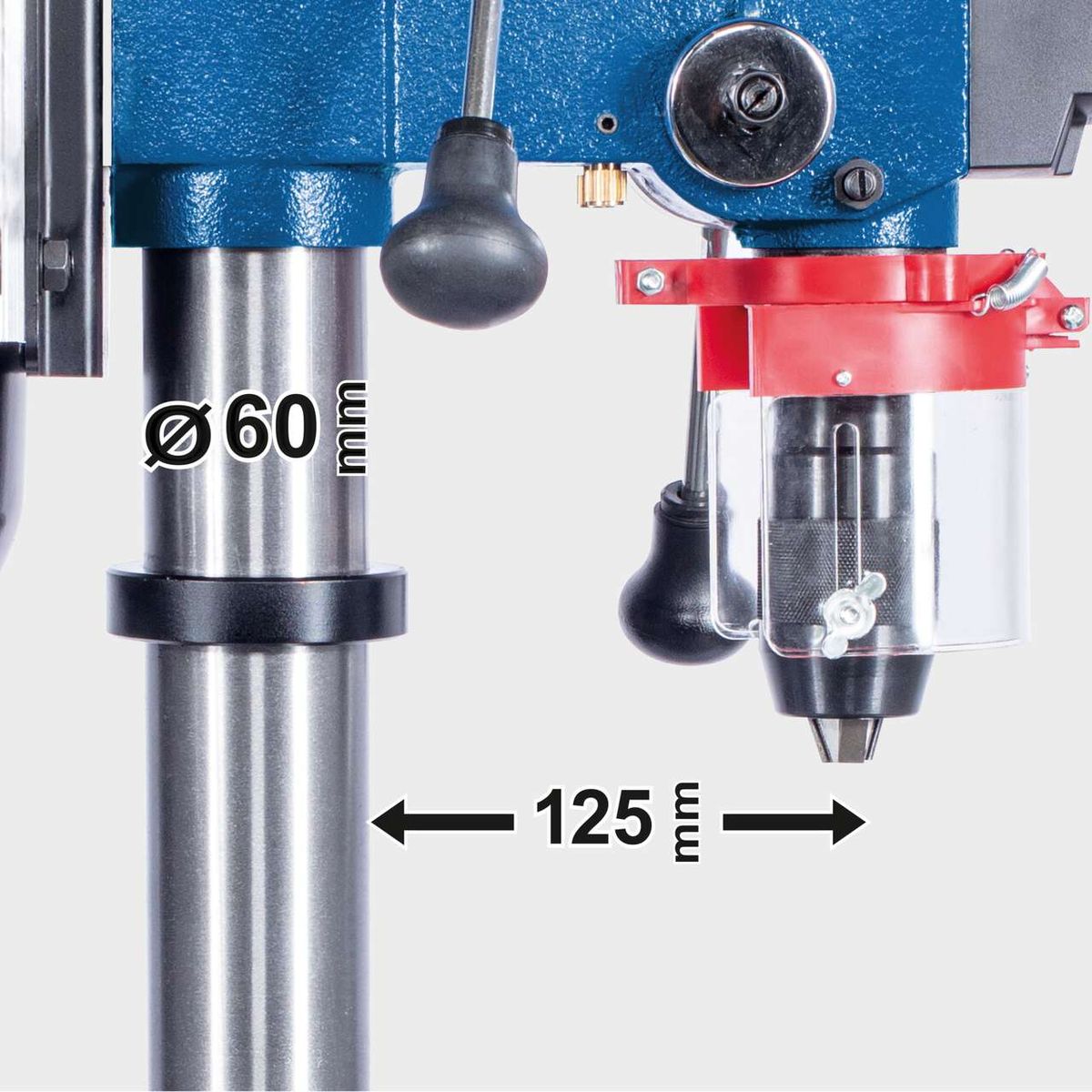

Drill bit detail of a bench pillar drill showing 60 mm chuck diameter and 125 mm height adjustment

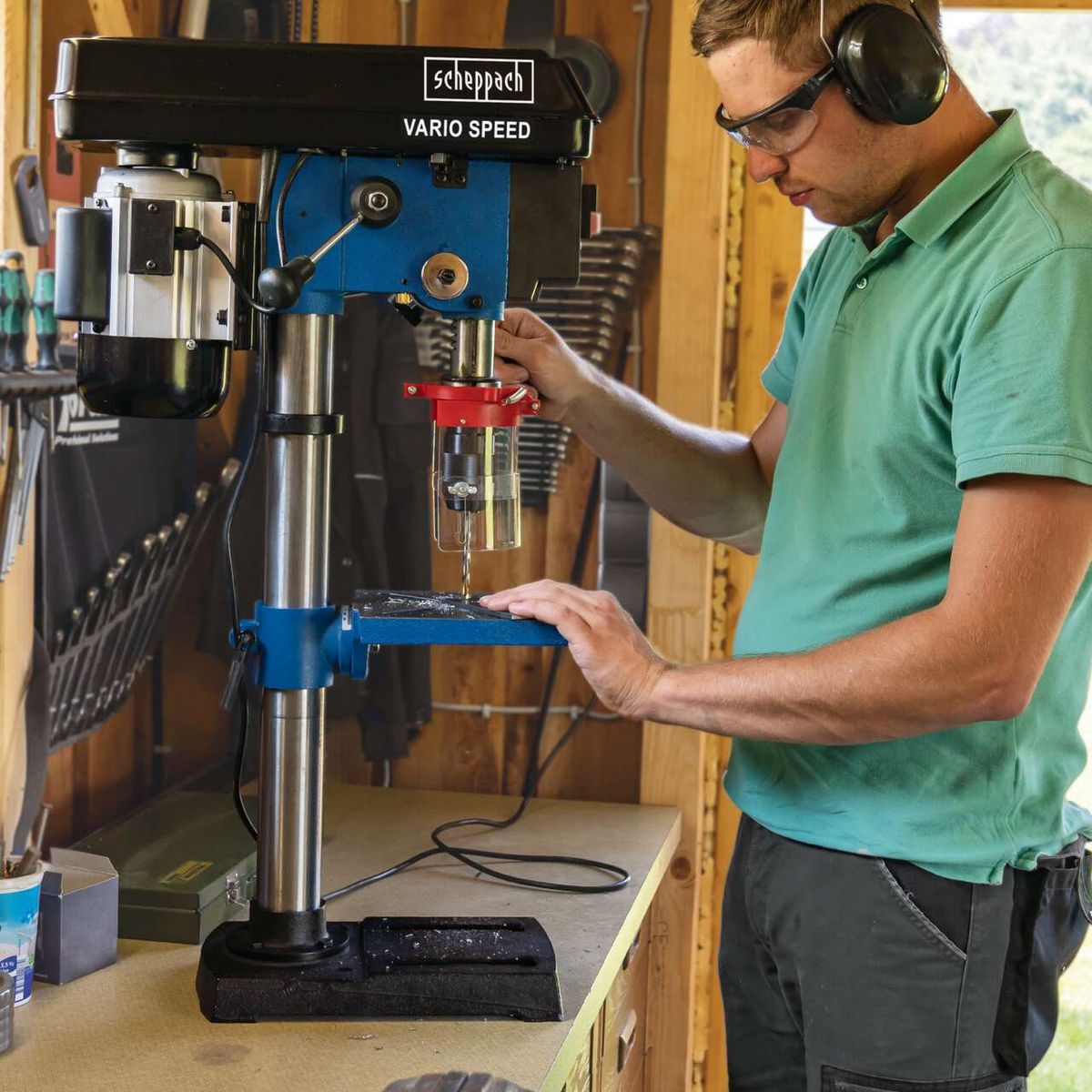

Scheppach bench pillar drill with variable speed and laser alignment, operational detail view

Scheppach bench pillar drill DP19Vario featuring 360° head rotation

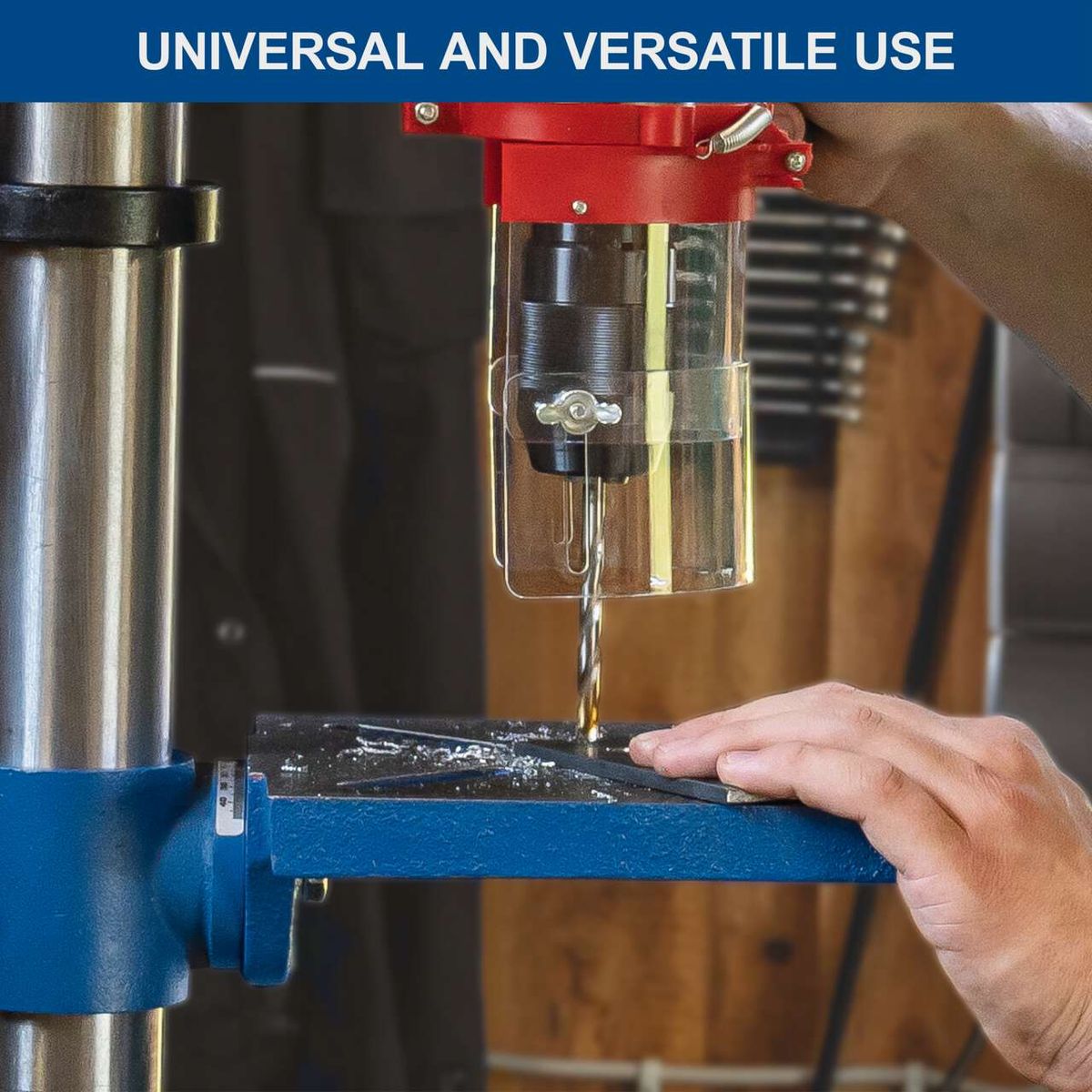

Bench pillar drill with laser guide and variable speed for accurate drilling in the work area

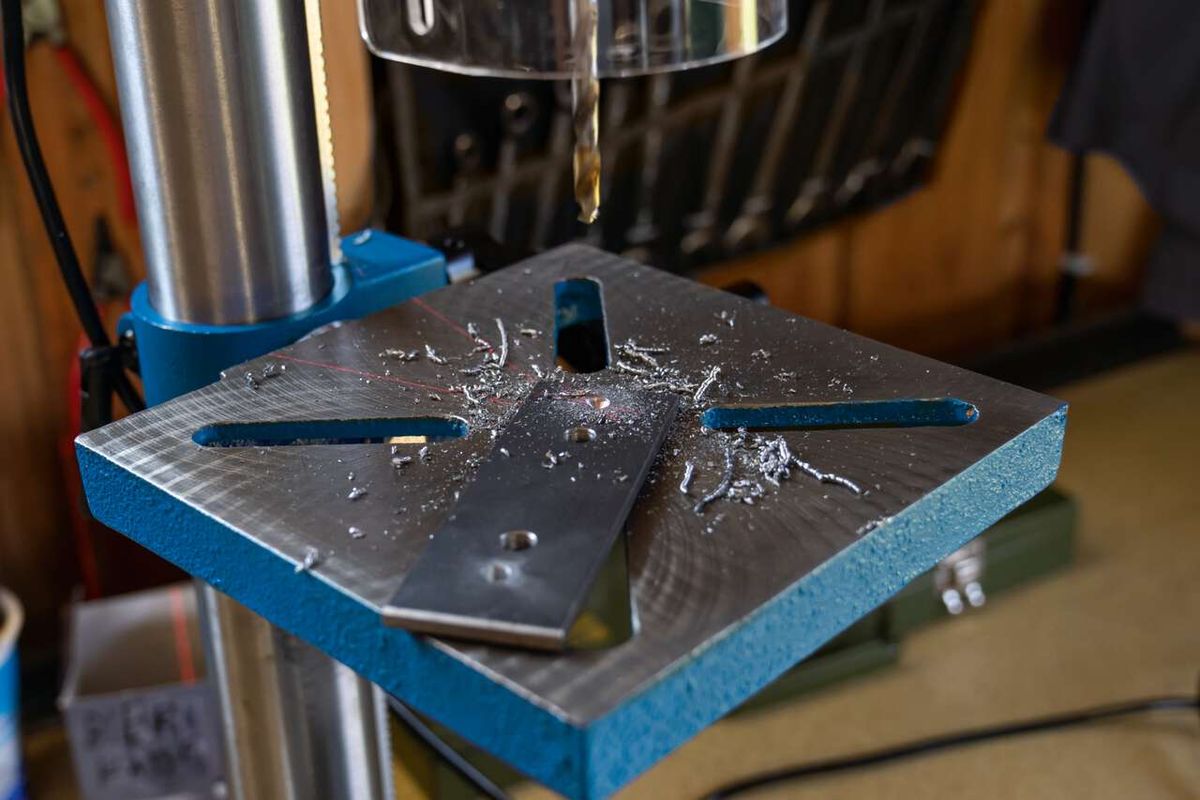

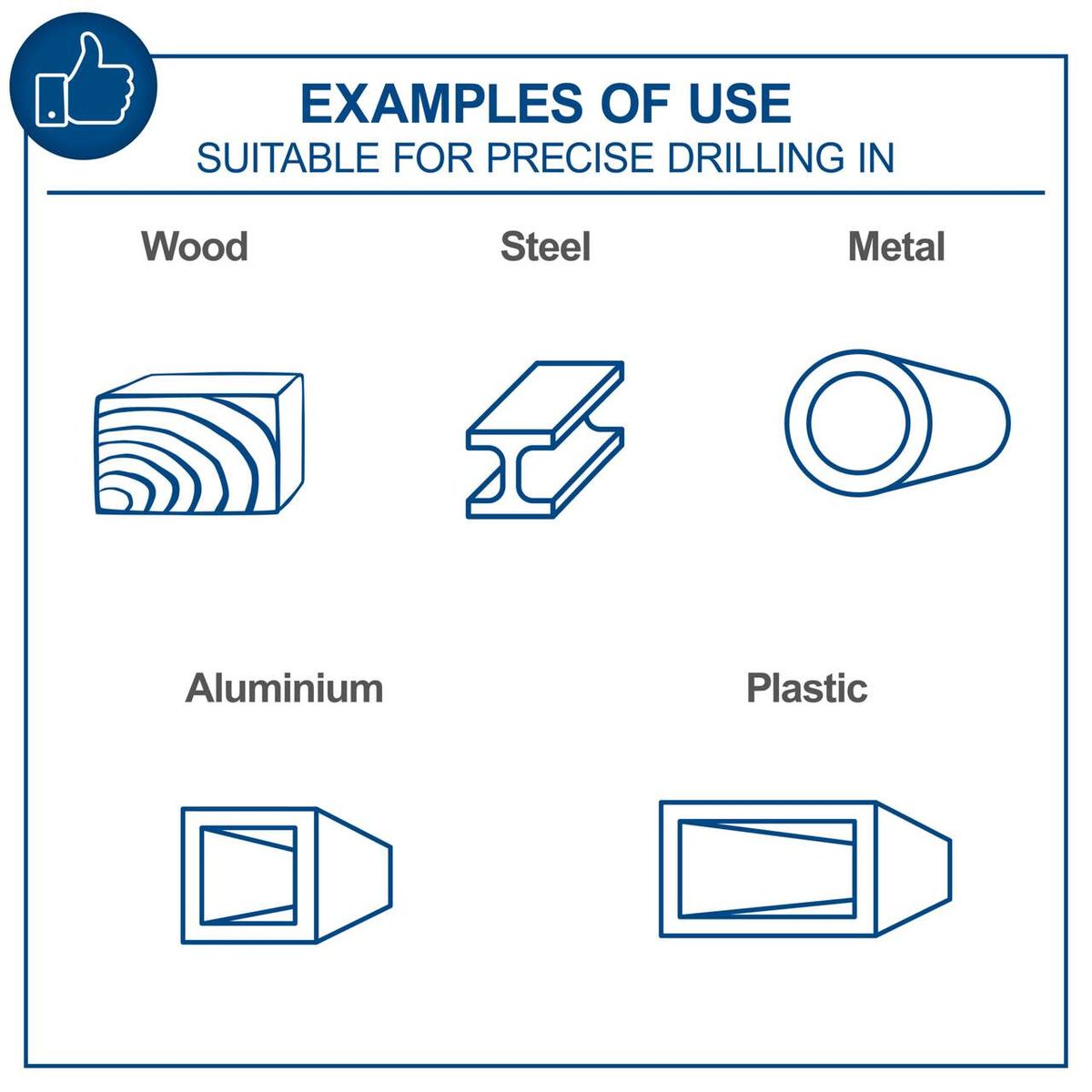

Examples of precise drilling applications in wood, metal, steel, aluminium, and plastic

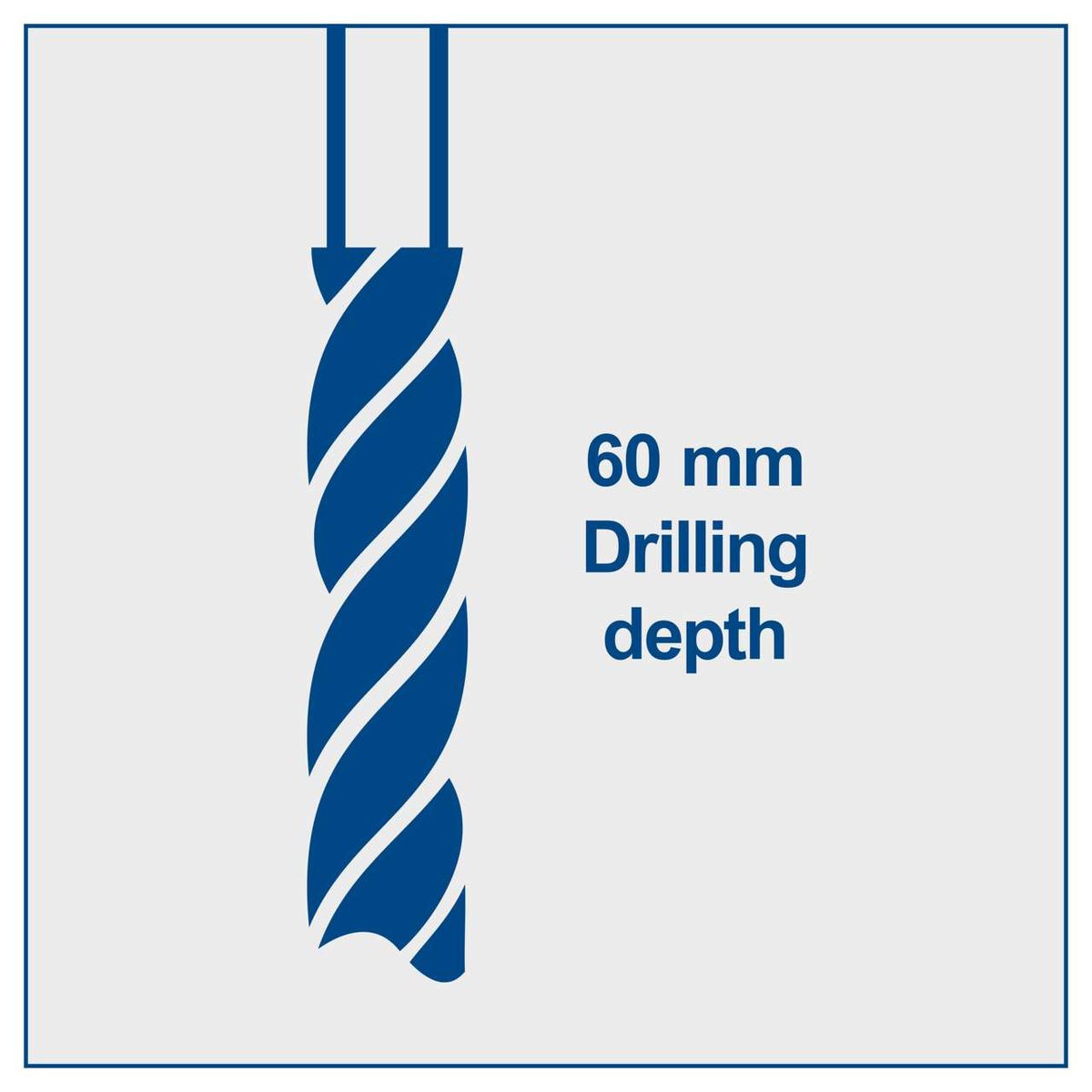

Drill bit showing 60 mm drilling depth for bench pillar drill

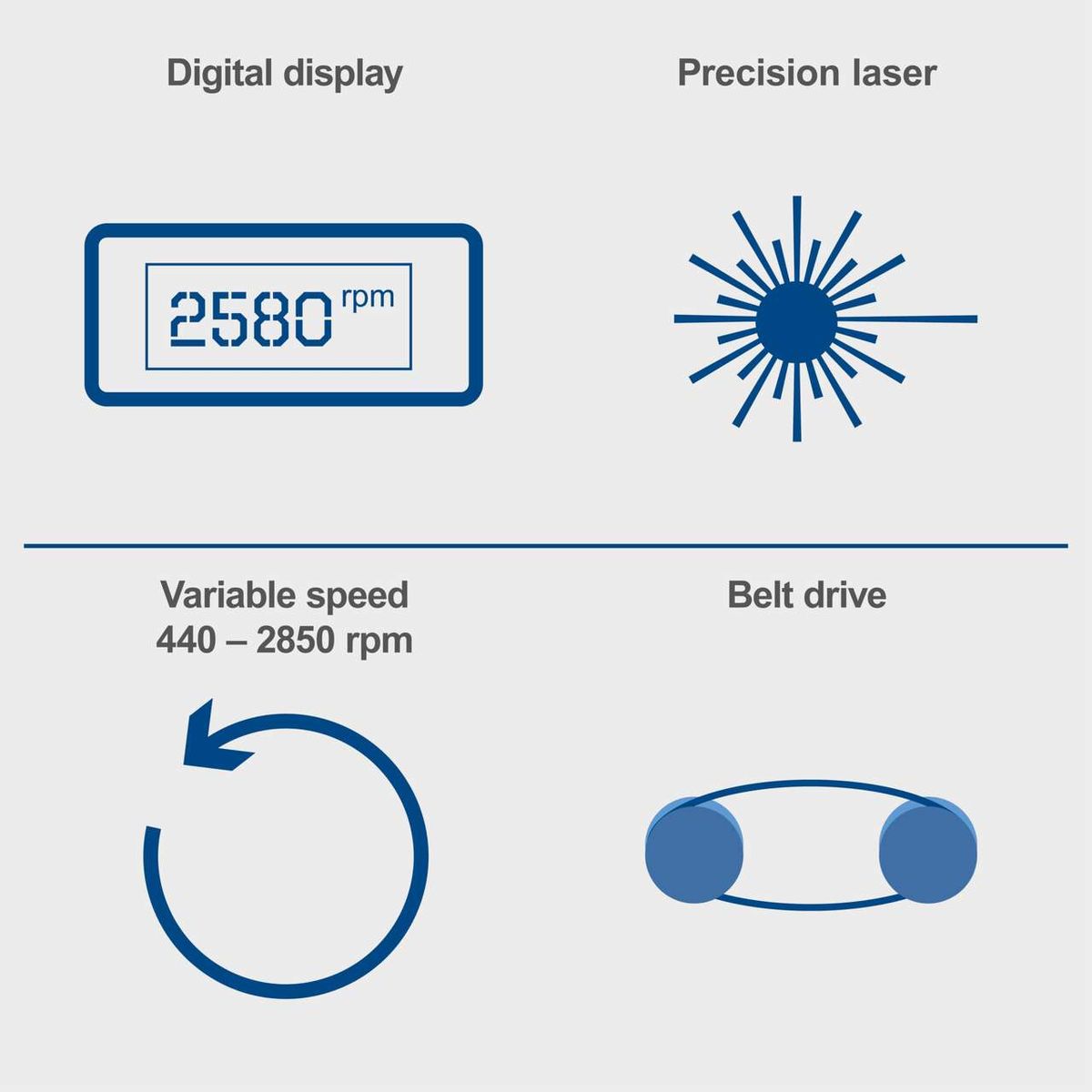

Bench pillar drill featuring digital speed control (440–2850 rpm), precision laser guide, and variable speed range

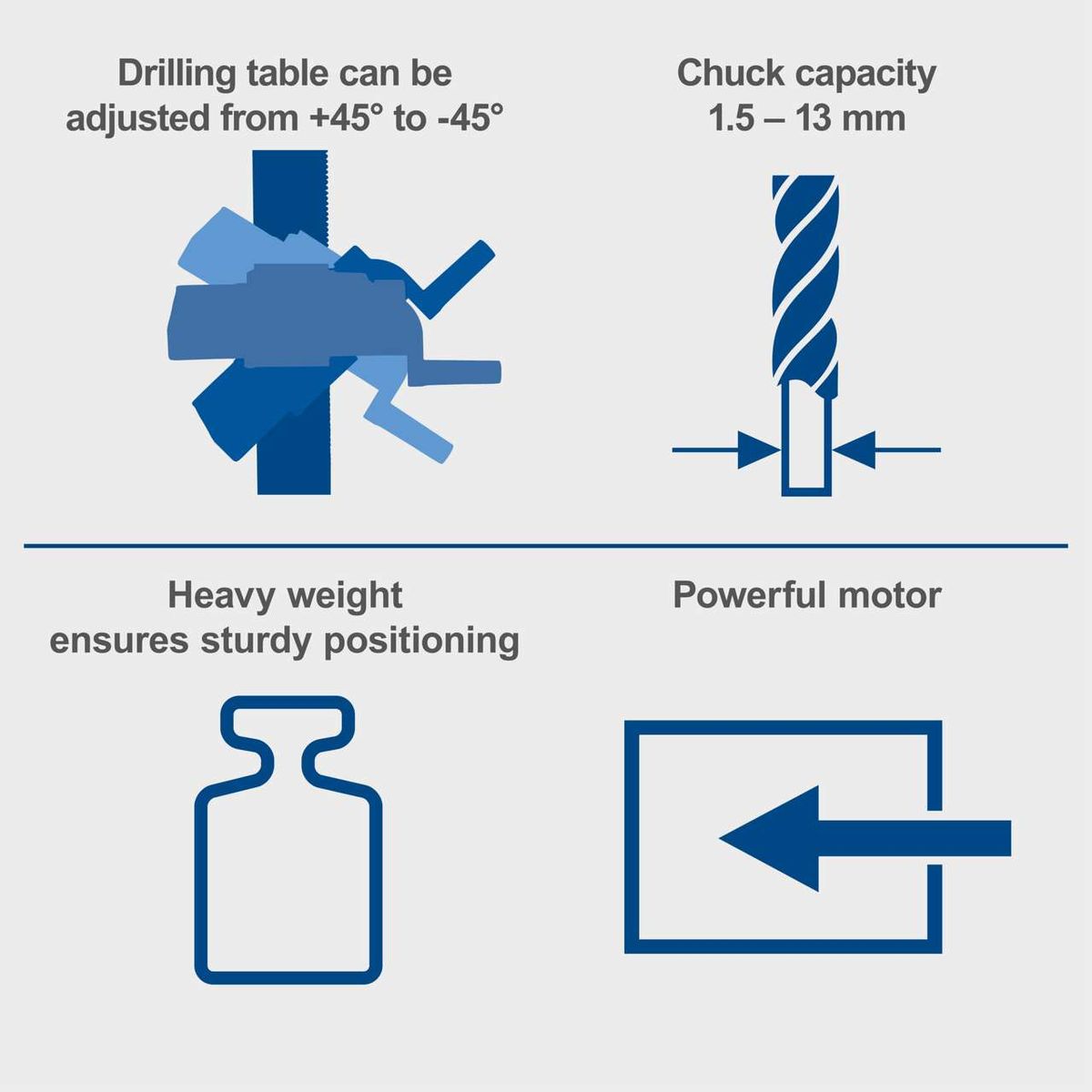

Bench drill with adjustable table tilt from +45° to -45°, chuck capacity 1.5–13 mm, sturdy positioning and powerful motor

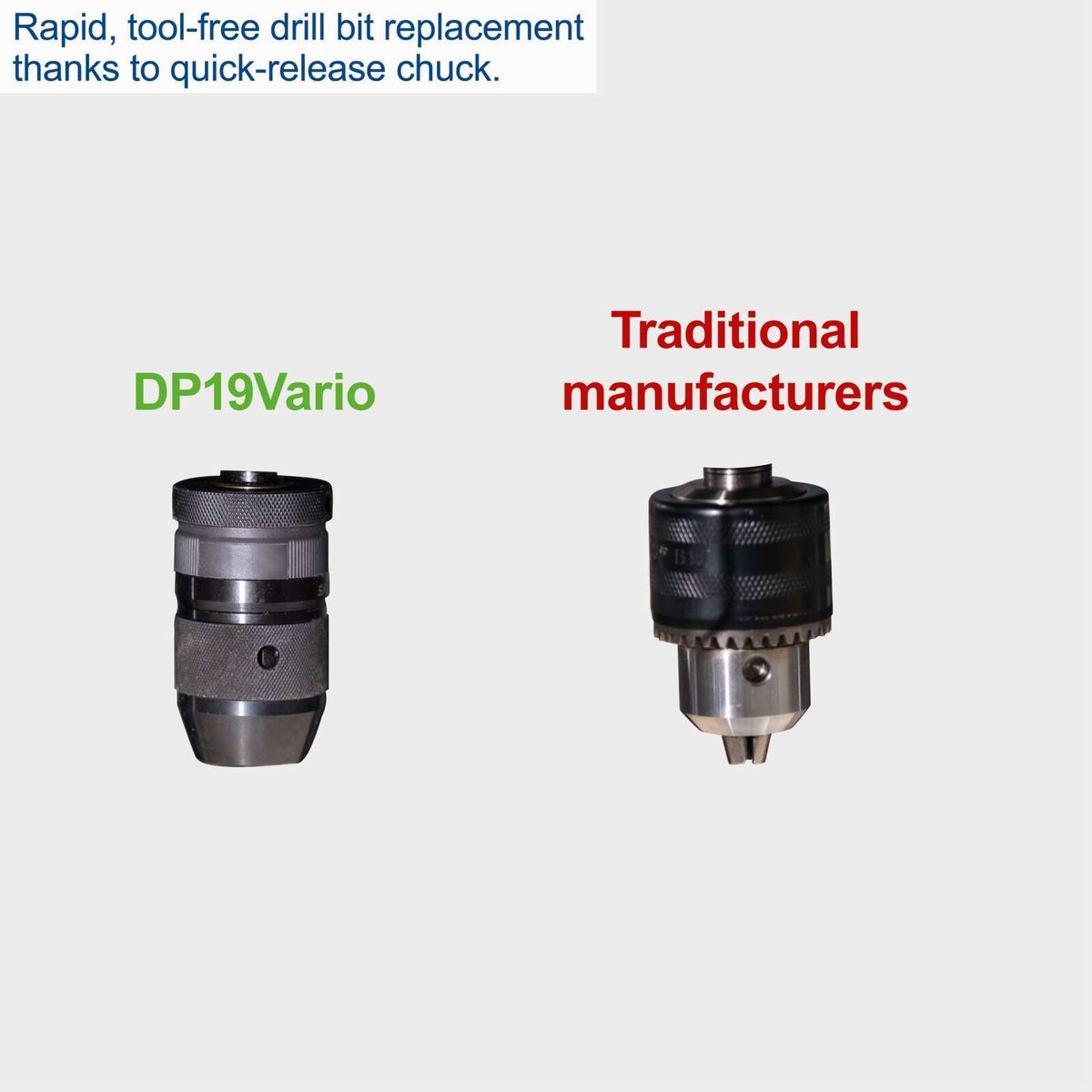

Quick-release chuck for drill attachment enabling tool-free bit replacement

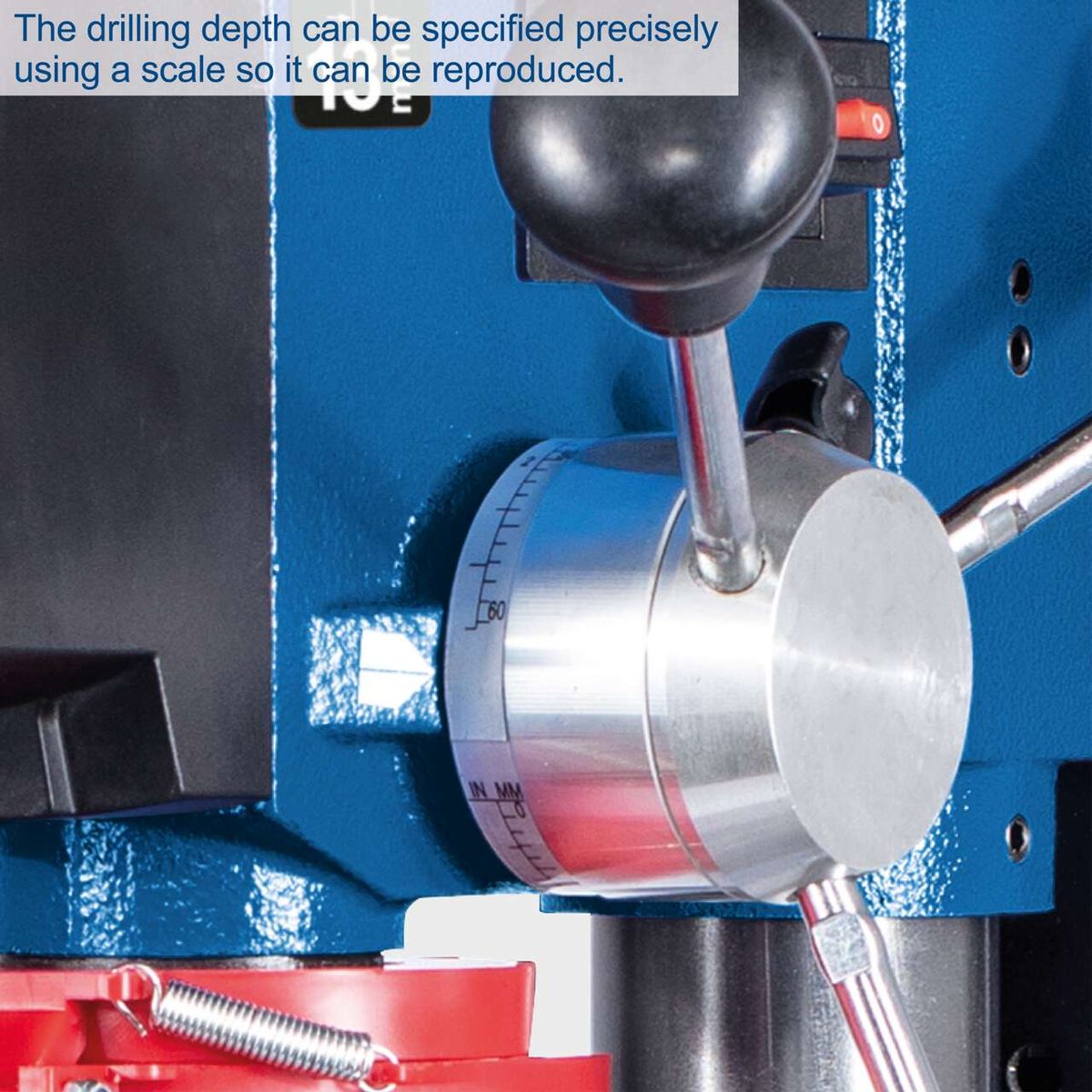

Bench pillar drill with precise depth control via scale for accurate drilling depth reproduction

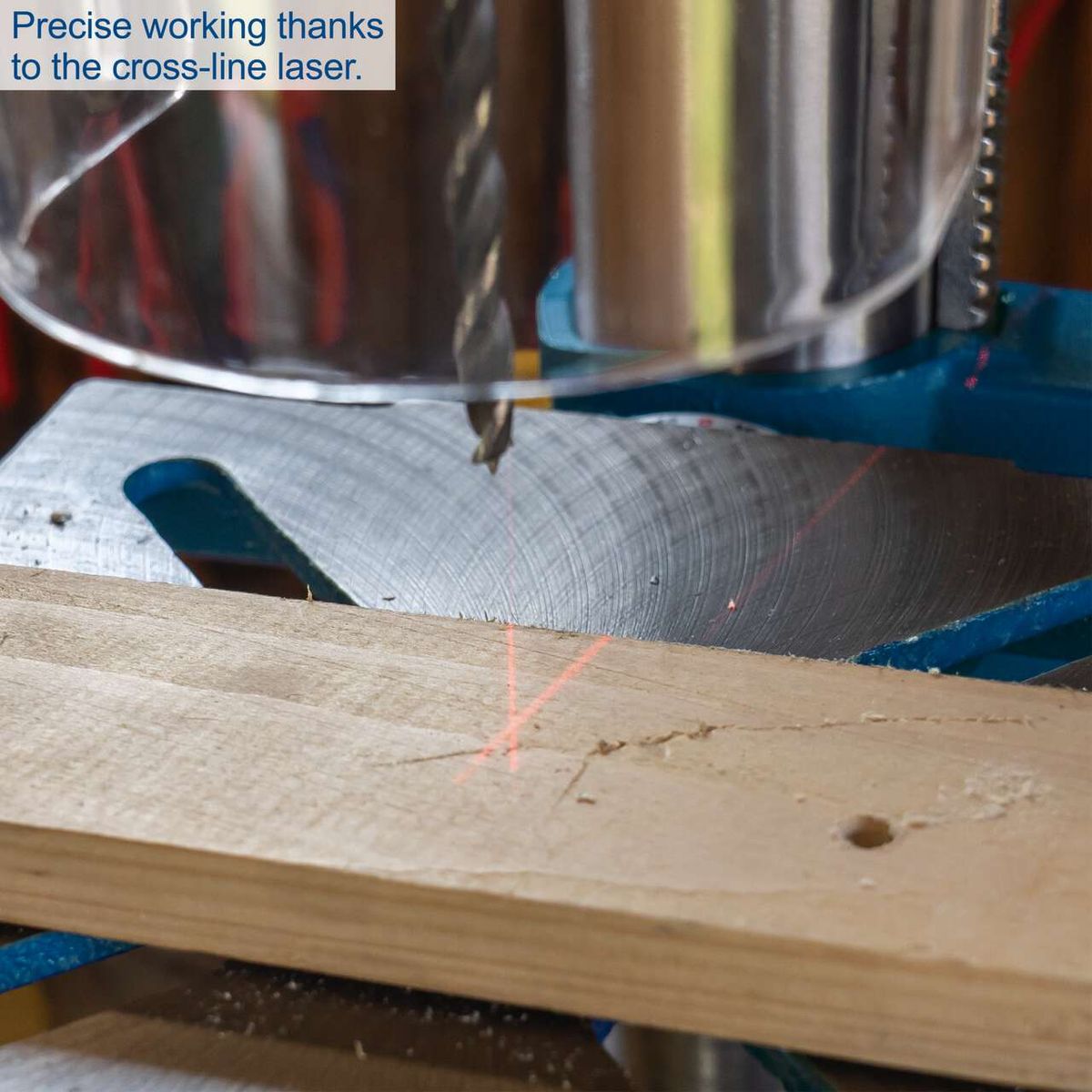

Precise drilling with cross-line laser on bench pillar drill machine

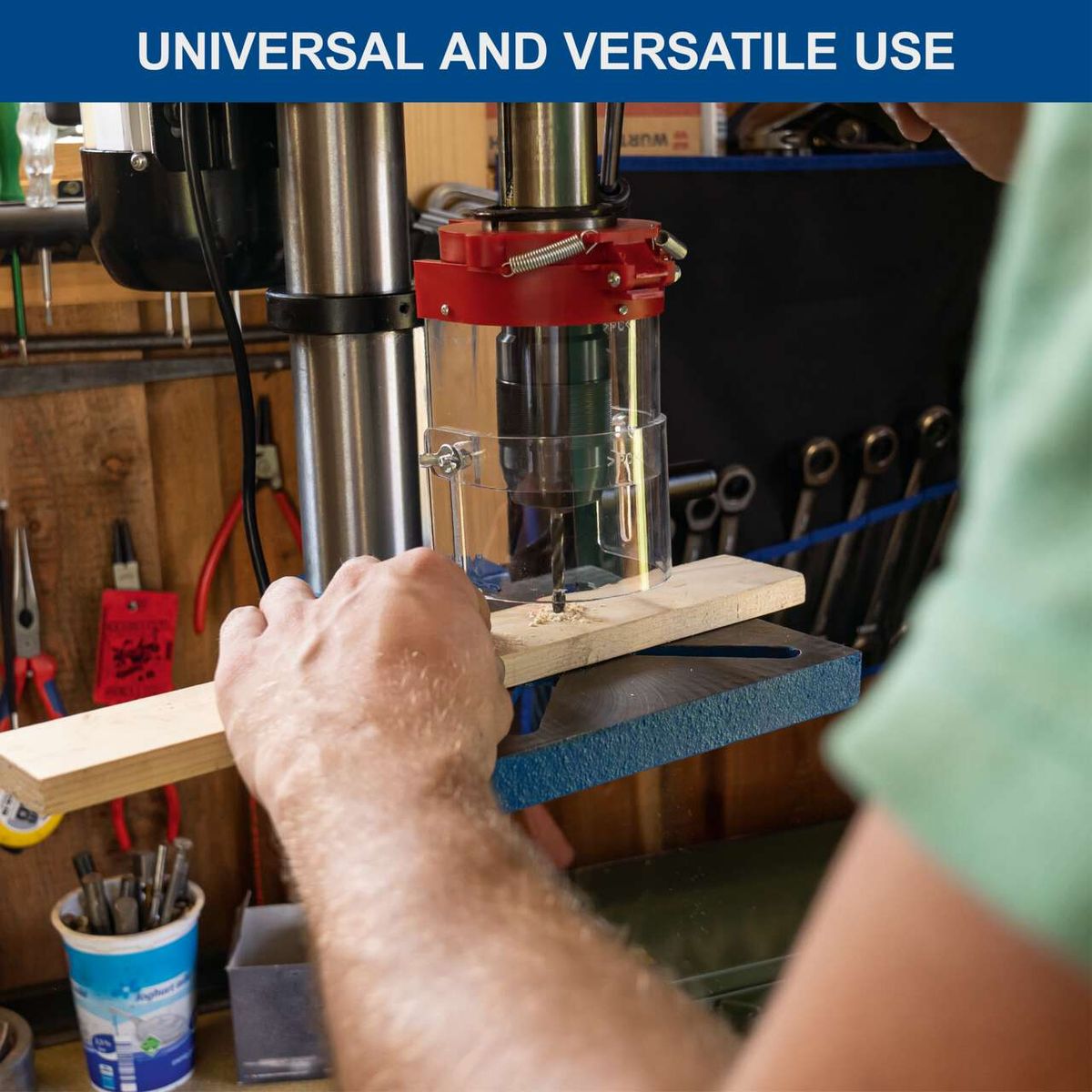

Bench pillar drill with digital variable speed and laser guide for accurate drilling in DP19VARIO set

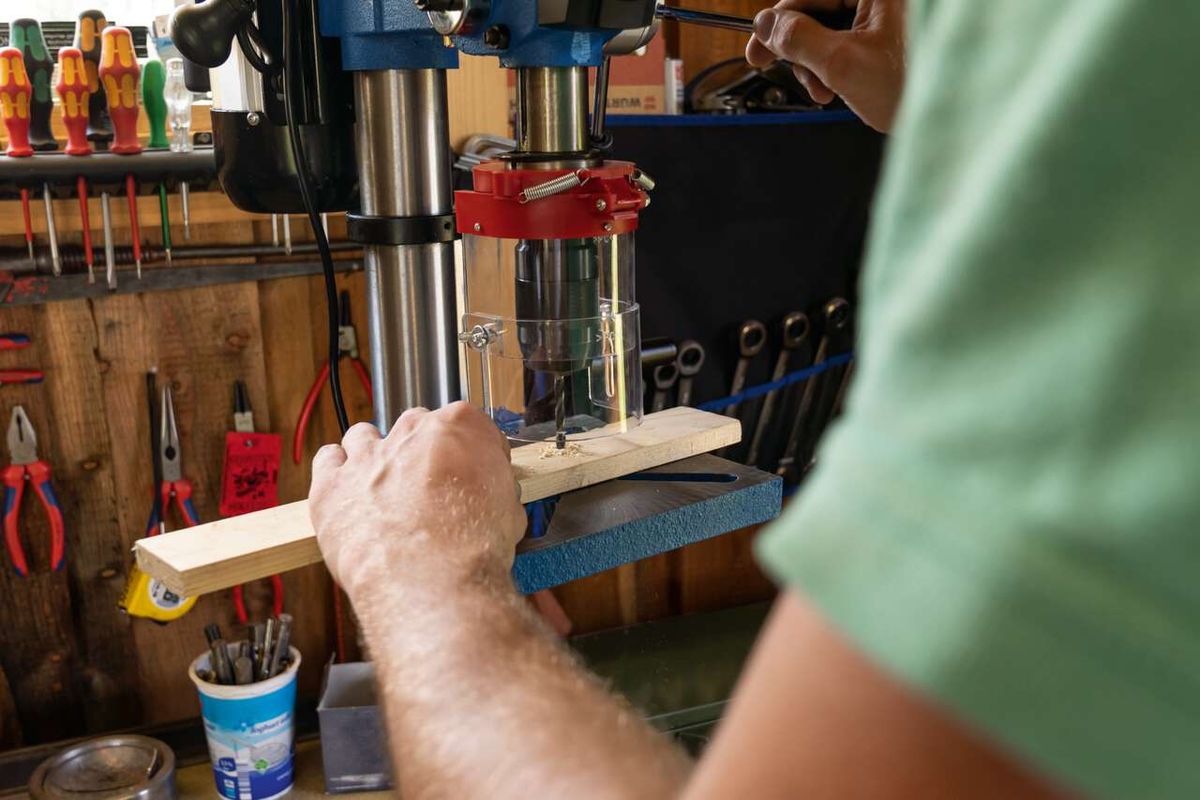

Scheppach bench pillar drill in operation with chuck and workpiece holder

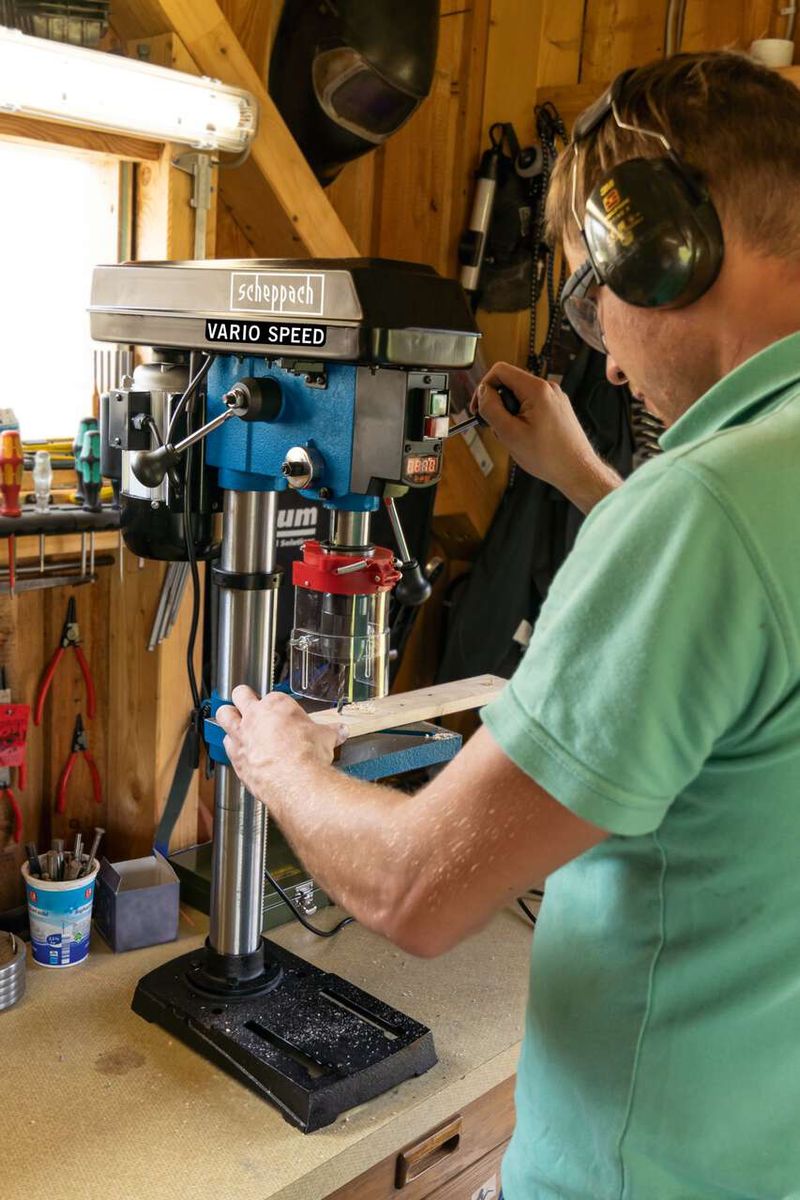

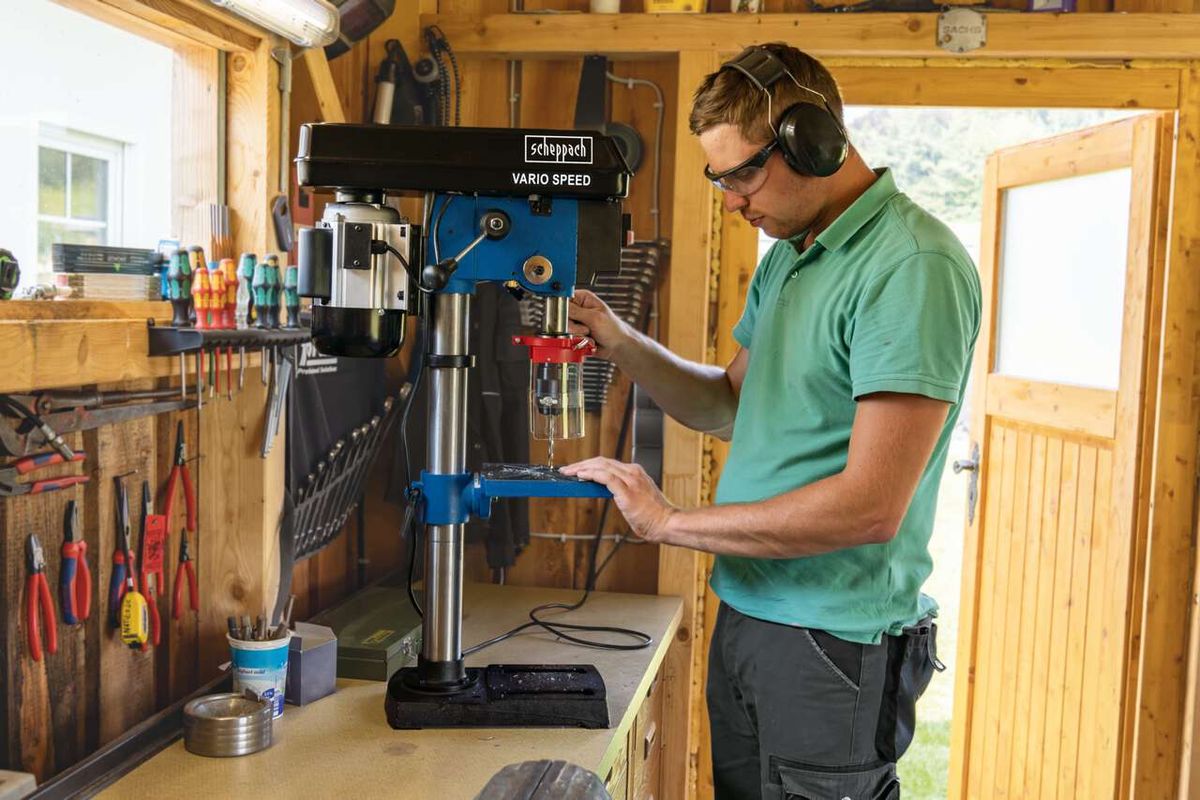

Scheppach bench pillar drill with variable speed in workshop setting

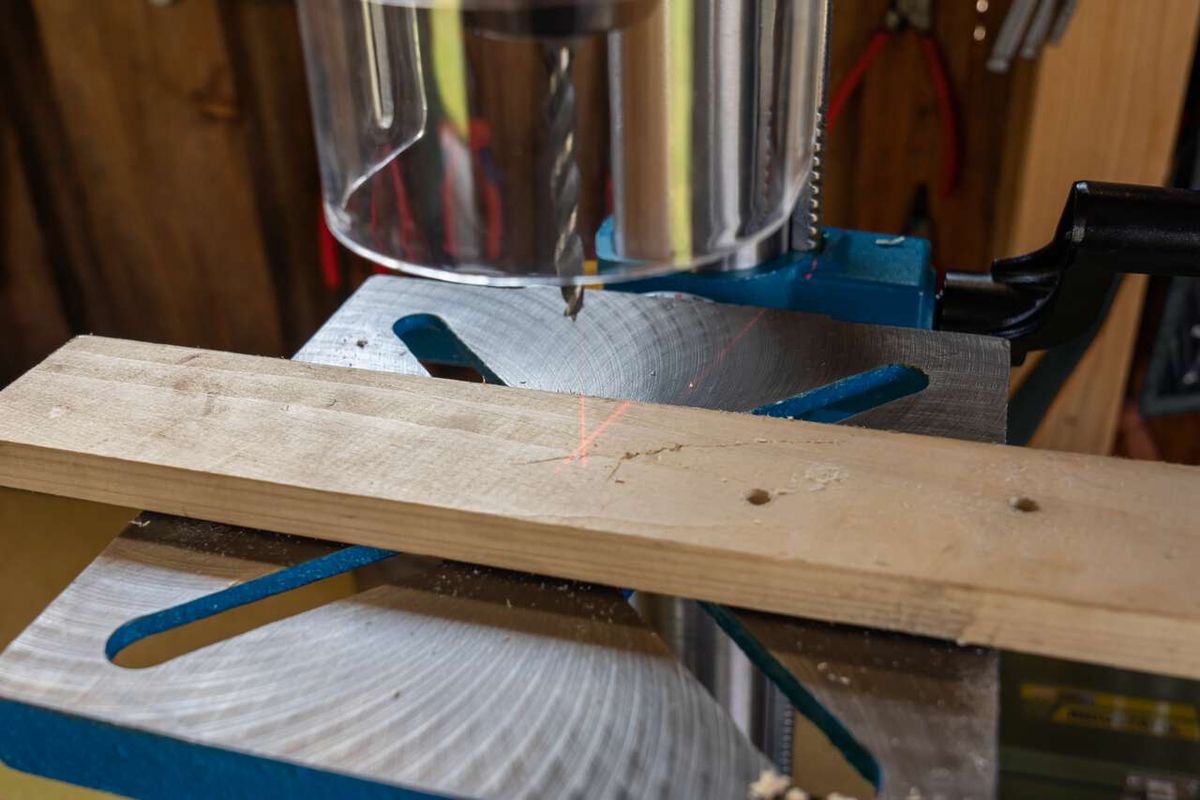

Bench pillar drill with laser guide and adjustable speed for accurate drilling

Scheppach bench pillar drill with laser guide, operating on workpiece

Bench Pillar Drill DP19VARIO | 550W | Digital Variable Speed | Laser 13mm Chuck

Product number: 5906820901

£275.00

£229.17

Excluding VAT

Variant

Available online only

Expected delivery: 1-3 days (Parcel shipping)

Amount

Questions?

Description

The Scheppach DP19VARIO Bench Pillar Drill is a precise and adaptable tool, ideal for both home workshops and professional settings. Thanks to its tool-free, variable speed adjustment - clearly displayed on a digital screen - it offers optimal control across a wide variety of materials. Whether you're drilling into wood, metal, plastic, or tiles, this powerful bench drill is a reliable all-rounder.

Built with robust cast-iron construction and weighing 27 kg, the DP19VARIO ensures excellent stability and vibration resistance. A powerful 550 W motor and a generous 465 mm distance from chuck to base allow for machining larger workpieces with ease, making it perfect for complex or heavy-duty projects.

Powerful 550 W Motor Capable of machining metal, plastic, tiles, and wood with ease, ideal for varied workshop applications
Stepless Speed Regulation (440–2580 rpm): Tool-free adjustment with digital display for precise control across materials
Tilting Drill Table (±45°): 190 x 190 mm table with adjustable height and angle for flexible positioning and mitre drilling
Integrated Laser Guide & Safety Shield: Ensures precise bore targeting and helps contain drilling debris
Keyless Chuck (1.5–13 mm): Quick and easy bit changes without additional tools; spindle depth adjustment via scale ring

The adjustable 190 x 190 mm worktable can be positioned up to 350 mm from the chuck and tilts 45° in both directions, providing full flexibility for angled drilling. Simply loosen the hex screw, set your preferred angle, and secure it in place for accurate bevelled holes.

Speed can be adjusted manually and without tools from 440 to 2580 rpm, depending on the material and desired finish. The built-in digital display offers precise speed monitoring, while the integrated laser ensures pinpoint accuracy for every drill. A hinged safety shield keeps debris contained, helping maintain a tidy and safe workspace.

A keyless chuck simplifies bit changes, supporting shank diameters from 1.5 mm to 13 mm. For extra control, the rotatable scale ring on the drilling spindle allows for exact depth setting - ideal for repeat drilling or projects requiring millimetre-perfect results.
